Technics SD-5948 User Manual

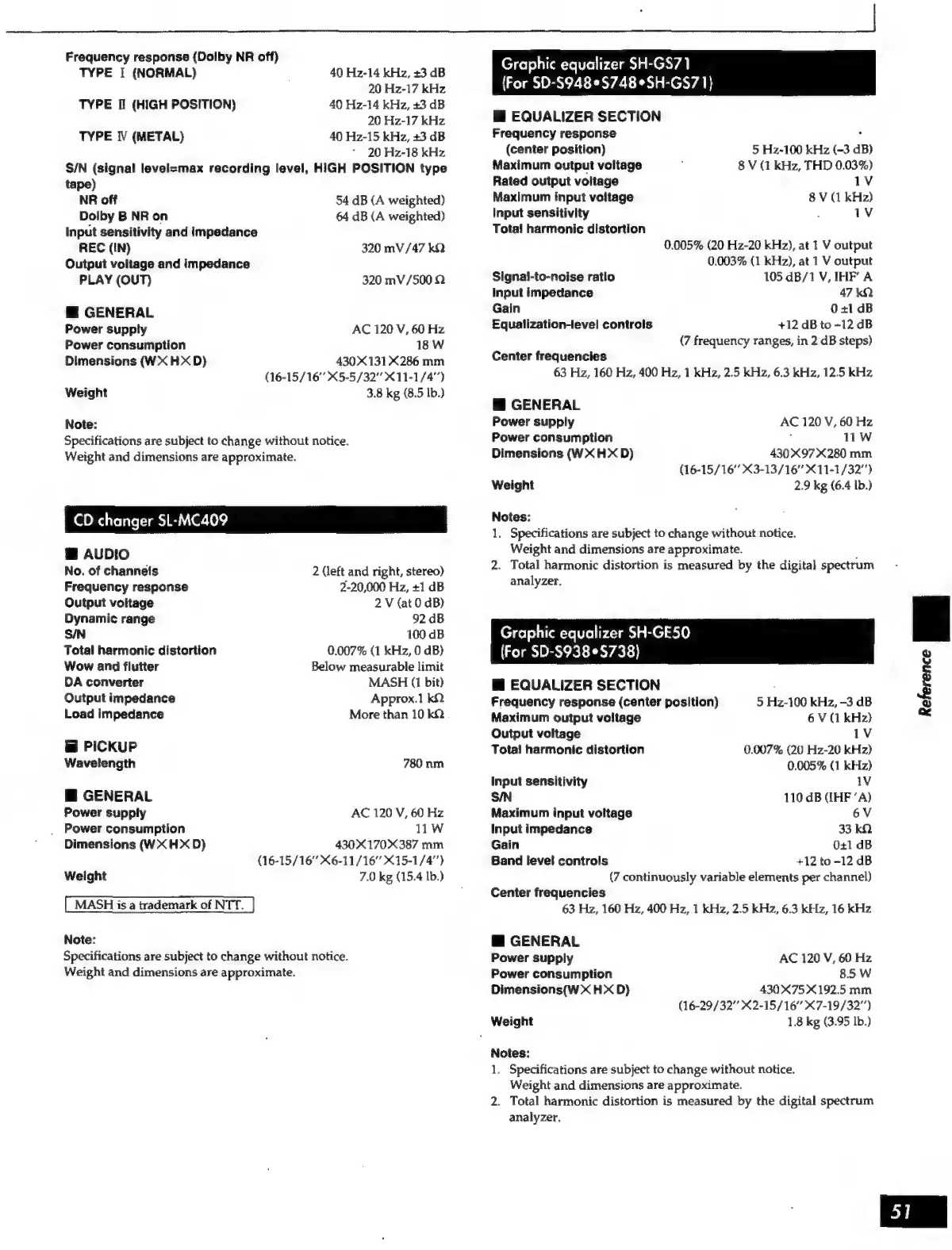

Frequency response (Dolby NR off)
TYPE I (NORMAL) 40 Hz-14 kHz, +3 dB
20 Hz-17 kHz
TYPE [I (HIGH POSITION) 40 Hz-14 kHz, +3 dB
20 Hz-17 kHz
TYPE WV (METAL) 40 Hz-15 kHz, +3 dB
20 Hz-18 kHz
S/N (signal level=max recording level, HIGH POSITION type
tape)
NR off 54 dB (A weighted)
Dolby B NR on 64 dB (A weighted)
Input sensitivity and Impedance
REC (IN) 320 mV /47 kQ
Output voltage and impedance
PLAY (OUT) 320 mV/500 Q
E GENERAL
Power supply AC 120 V, 60 Hz
Power consumption 18 W
Dimensions (WX HX D} 430X131 X286 mm
(16-15/16" X5-5/32" X11-1/4')
Weight 3.8 kg (8.5 lb.)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
CD changer SL-MC409
E AUDIO
No. of channels
Frequency response
2 (left and right, stereo)
2-20,000 Hz, +1 dB
Output voltage 2 V {at 0 dB)
Dynamic range 92 dB
S/N 100 dB
0.007% (1 kHz, 0 dB)
Below measurable limit
Total harmonic distortion
Wow and flutter
DA converter MASH (1 bit)
Output impedance Approx.] KN
Load impedance More than 10 kQ .
E PICKUP
Wavelength 780 nm
E GENERAL
Power supply AC 120 V, 60 Hz
Power consumption 11 W
Dimensions (WX HX D) 430 X 170X387 mm
(16-15/16" X6-11/16” X15-1/4'")
Weight 7.0 kg (15.4 lb.)
MASH is a trademark of NTT.
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
ee a
Graphic equalizer SH-GS71
(For SD-$948°S$748 ¢SH-GS7 1}
E EQUALIZER SECTION
Frequency response
(center position)
Maximum output voltage
5 Hz-100 kHz (-3 dB)
8 V (1 kHz, THD 0.03%)
Rated output voltage 1V
Maximum input voltage 8 V (1 kHz)
Input sensitivity 1V
Total harmonic distortion
0.005% (20 Hz-20 kHz), at 1 V output
0.003% (1 kHz), at 1 V output
105 dB/1 V, IHF’ A
47 KQ
0 +1 dB
+12 dB to -12 dB
(7 frequency ranges, in 2 dB steps)
Signa!-to-noise ratio
Input impedance
Gain
Equalization-level controls
Center frequencies
63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, 12.5 kHz
E GENERAL
Power supply AC 120 V, 60 Hz
Power consumption 11W
Dimensions (WX HX D) 430 X97 X280 mm
(16-15/ 16” X3-13/16” X11-1/32")
Weight 2.9 kg (6.4 lb.)
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Graphic equalizer SH-GESO
(For SD-S938 S738}
E EQUALIZER SECTION
Frequency response (center position) 5 Hz-100 kHz, -3 dB
Maximum output voltage 6 V (1 kHz)
Output voltage 1V
Tota! harmonic distortion 0.007% (20 Hz-20 kHz)
0.005% (1 kHz)
Input sensitivity 1V
S/N 110 dB (IHF ’A)
Maximum input voltage 6V
Input impedance 33 kQ
Gain 0+1 dB
Band level controls +12 to -12 dB
(7 continuously variable elements per channel)
Center frequencies
63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, 16 kHz
E GENERAL
Power supply AC 120 V, 60 Hz
Power consumption 85W
Dimensions(W X HX D) 430 X75 X192.5 mm
(16-29/32" X2-15/16" X7-19/32”)
Weight 1.8 kg (3.95 Ib.)
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer,
Reference a

Technics SD-5948 Specifications

General

Brand	Technics
Model	SD-5948
Category	Stereo System
Language	English
