Disc slot for
single disc play

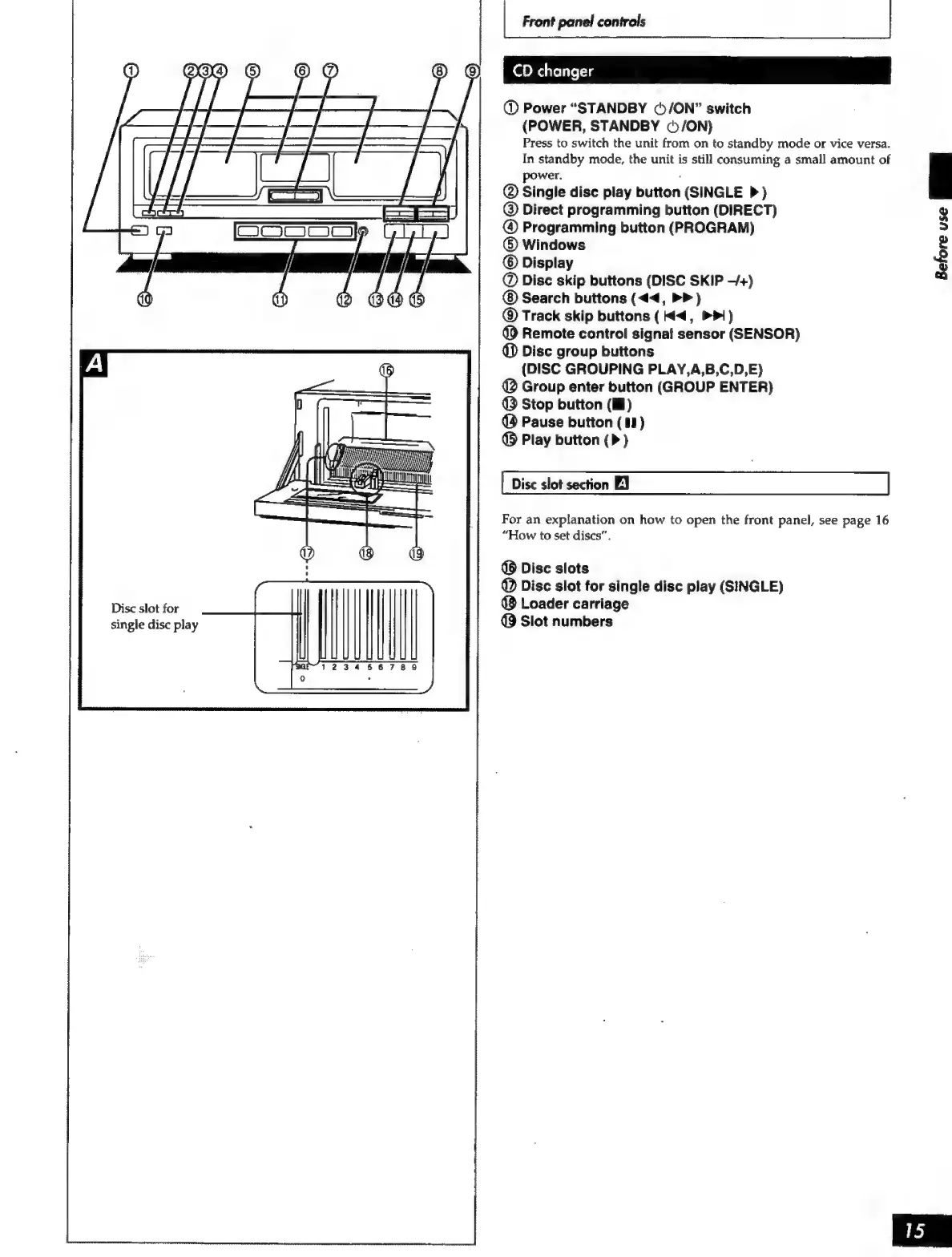

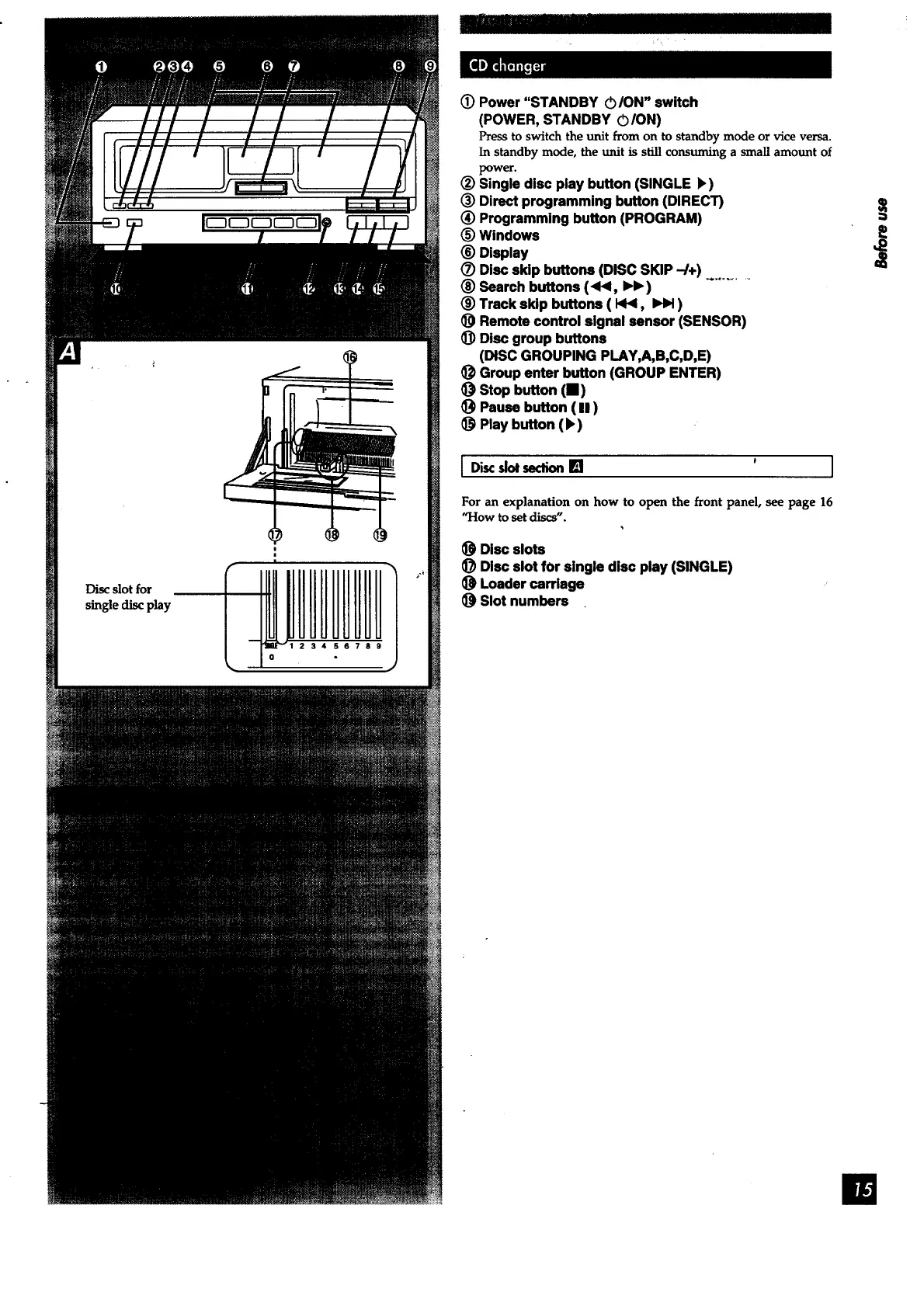

(_) Power "STANDBY O/ON" switch
(POWER, STANDBY O/ON)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
(_) Single disc play button (SINGLE 1_)
(_) Direct programming button (DIRECT)
(_) Programming button (PROGRAM)
(_) Windows
(_) Display
(2) Disc skip buttons (DISC SKIP -/+) .......
(_) Search buttons (41_, I_1_)
(_) Track skip buttons ( I_1_, I_q )
_) Remote control signal sensor (SENSOR)
_) Disc group buttons
(DISC GROUPING PLAY,A,B,C,D,E)
(_) Group enter button (GROUP ENTER)
_) Stop button (JJ)
Pause button ( II )
_) Play button (_)
I sl°t e ' I
For an explanation on how to open the front panel, see page 16
"q-lowto set discs".
_) Disc slots
(_ DIsc slot fOr single disc play (SINGLE)
_) Loader carriage
_) Slot numbers
