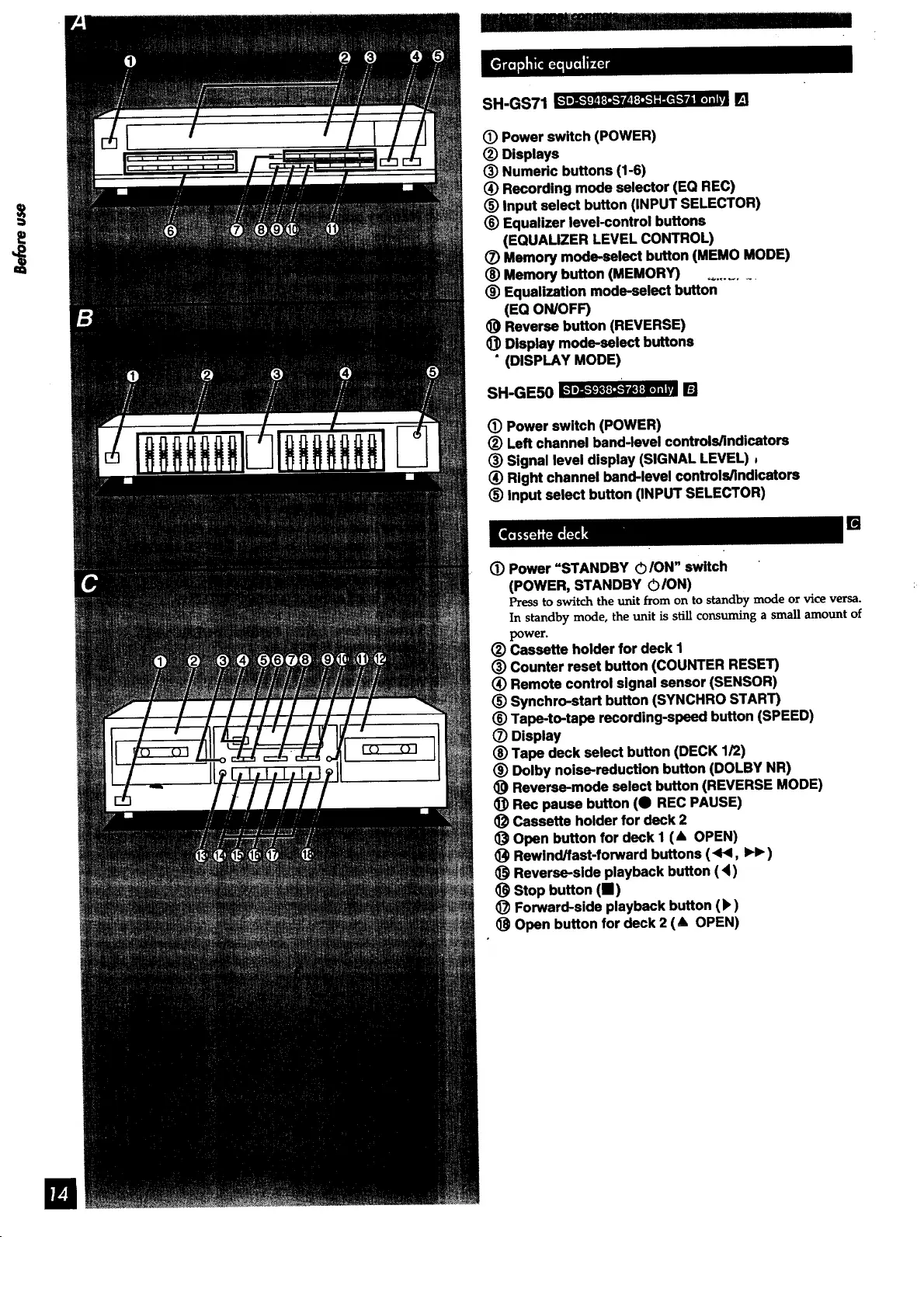

SH-GS71 IFPD'_ra'_'_:a'_:E_''ni']''=" []
(_ Power switch (POWER)
_) Displays
(_ Numeric buttons (1-6)
_) Recording mode selector (EQ REC)
(_ Input select button (INPUT SELECTOR)
(_ Equalizer level-control buttons
(EQUALIZER LEVEL CONTROL)
(Z) Memory mode-select button (MEMO MODE)
(_) Memory button (MEMORY)
(_) Equalization mode-select button
(EQ ON/OFF)
Reverse button (REVERSE)
O Display mode-select buttons
• (DISPLAY MODE)
SH-GE50 _ I_1
(!) Power switch (POWER)
(_) Left channel band-level controls/indicators
_) Signal level display (SIGNAL LEVEL) j
(_) Right channel band-level controls/indicators
(_) Input select button (INPUT SELECTOR)
(_) Power =STANDBY O/ON" switch
(POWER, STANDBY O/ON)
[]
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
(_) Cassette holder for deck 1
_) Counter reset button (COUNTER RESET)
_) Remote control signal sensor (SENSOR)
(_ Synchro-start button (SYNCHRO START)
(_ Tape-to-tape recording-speed button (SPEED)
(_) Display
_) Tape deck select button (DECK 1/2)
(_ Dolby noise-reduction button (DOLBY NR)
Reverse-mode select button (REVERSE MODE)
_) Rec pause button (9) REC PAUSE)
Cassette holder for deck 2
Open button for deck I (A OPEN)
Rewind/fast-forward buttons (<1<, IH_)
Reverse-side playback button (_)
<_ Stop button (11)
(_ Forward-side playback button (b)
(_) Open button for deck 2 (& OPEN)
