POWER
SPEAKERS
%
On the amplifier's display
OPEN
%
DOLBYNR -
Forward side [... Reverse side
Tape opening_adng downward.
On the cassette deck's display
REVERSE
MODE
VOLUME
Indicates the side being played
Type of tape which can be played on this unie
Normal position/TYPE I
High position/TYP El]
Metal position/TYPE IV
0
0
0
The unit automatically identifies the type of tape.

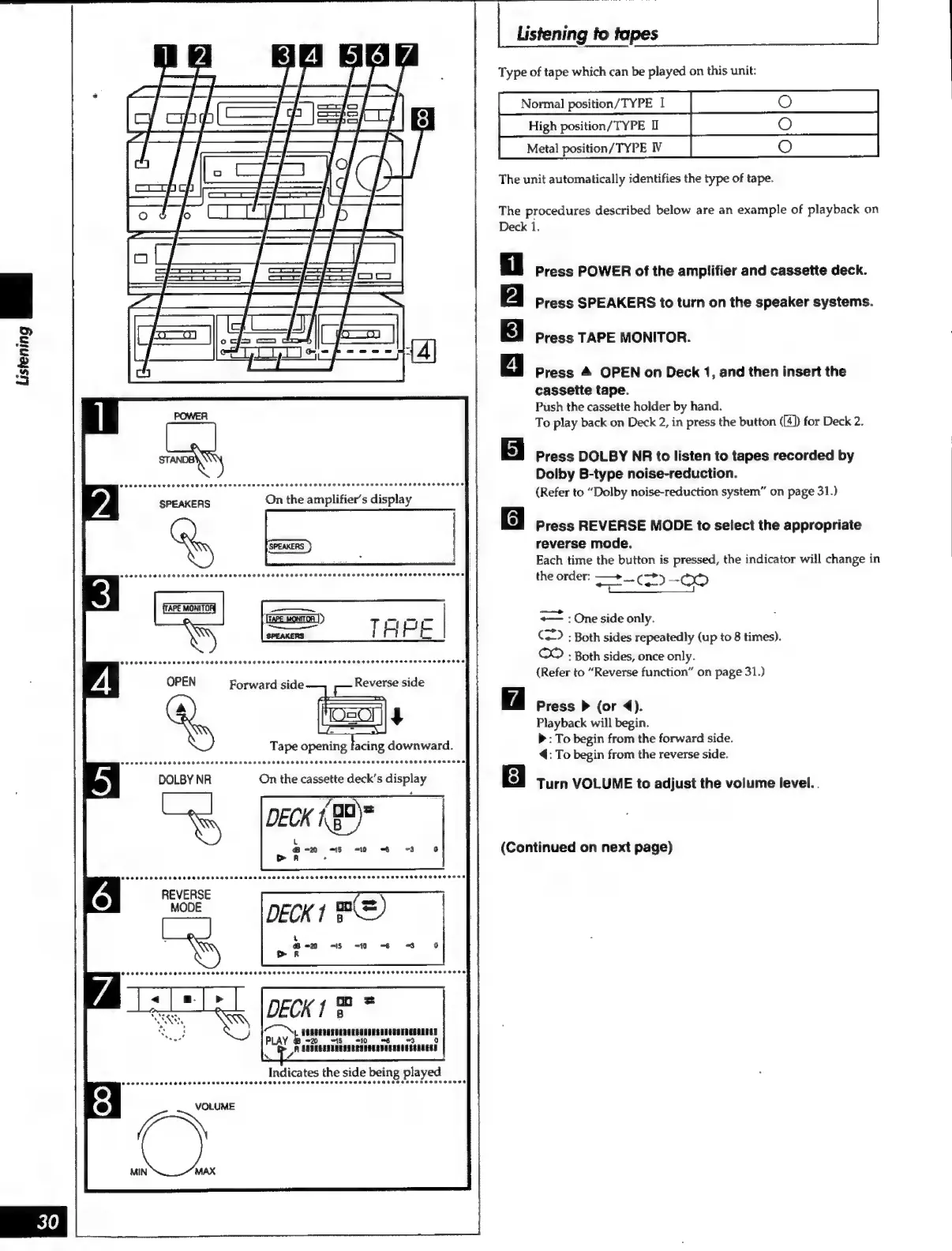

The procedures described below are an example of playback on
Deck 1.
Press POWER of the amplifier end cassette deck.
B Press SPEAKERS to turn on th'e'sl_eaker systems.
Press TAPE MONITOR.
B
!;t
Press • OPEN on Deck 1, and then Insert the
cassette tape.
Pushthecassetteholderby hand.
To play back on Deck 2, in press the button ([_) for Deck 2.
Press DOLBY NR to listen to tapes recorded by
Dolby B-type noise-reduction.
(Refer to "Dolby noise-reduction system" on page 31.)
r_ Press REVERSE MODE to select the appropriate
reverse mode. ,
Each time the button is pressed, the indicator will change in
the orde=. _-._-.-- C.-)
:One side only.
(_) :Both sides repeatedly (up to 8 times).
:Both sides, once only.
(Refer to "Reverse function" on page 31.)
_--_ Press 1_(or d).
Playback will begin.
)' :To begin from the forward side.
:To begin from the reverse side.
_] Turn VOLUME to adjust the volume level.
(Continued on next page)
