Tuner
" t +
EQ/EXT terminals
Cooling fan
Amplifier
O@ @@
O0 O0
(See page 7.)
(Seepage7.)
!
Graphic
equalizer
Stereo connection cable(induded)
White (L)
Red (R)
]

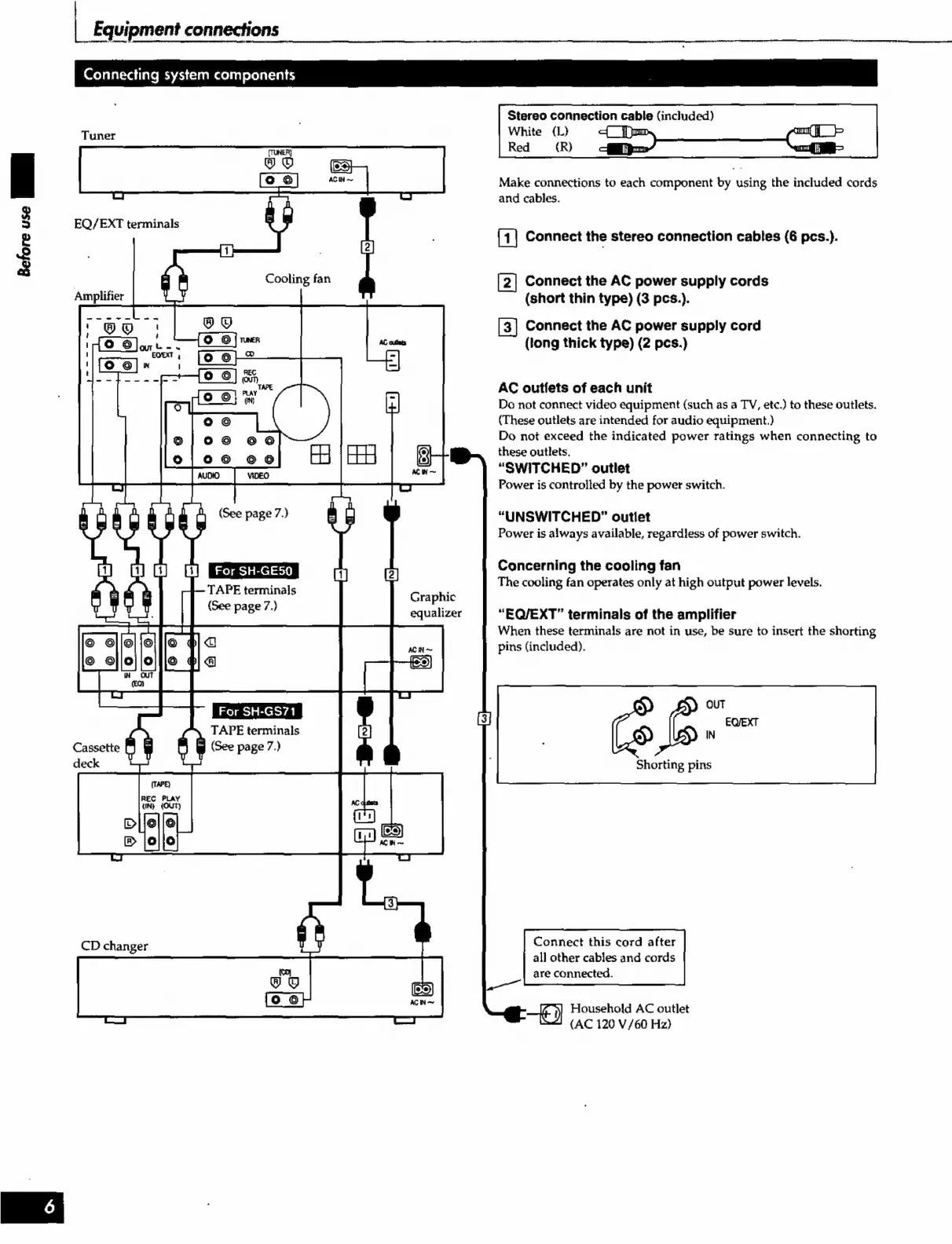

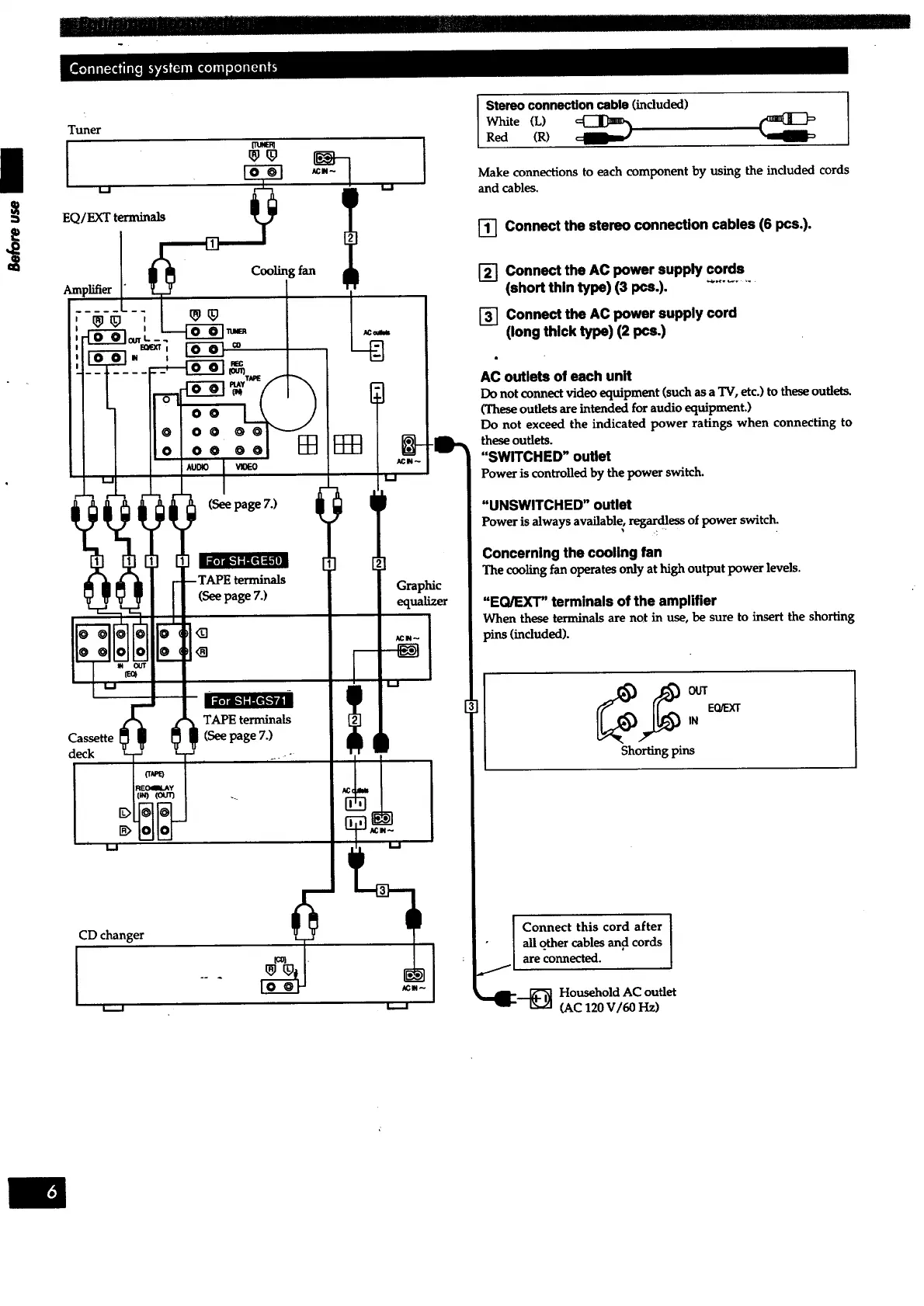

Make connections to each component by using the included cords
and cables.
_-_ Connect the stereo connection cables (6 pcs.).
_-_ Connect the AC power supply cords
(short thin type) (3 pcs.). +........
[_] Connect the AC power supply cord
(long thick type) (2 poe.)
AC outlets of each unit
Do notconnectvideoequipment(suchasa TV,etc.)totheseoutlets.
(These outlets are intended for audio equipment.)
Do not exceed the indicated power ratings when connecting to
these outlets.
"SWITCHED" outlet
Power is controlled by the power switch.
"UNSWITCHED" outlet
Power is always available,regardlessofpower switch.
Concerning the cooling fan
The cooling fan operates only at high output power levels.
"EQ/EXT" terminals of the amplifier
When these terminals are not in use, be sure to insert the shorting
pins (included).
Cassette
deck
REO_LAY
CD changer
I
TAPE terminals
(See page 7.)
+
__ UTEQ/EXT
IN
Shortingpins
!
Connect this cord after I
I
all other cables and cords
are connected.
Household AC outlet
(AC 120 V/60 Hz)
To Next Page
