Technics SH-AC300

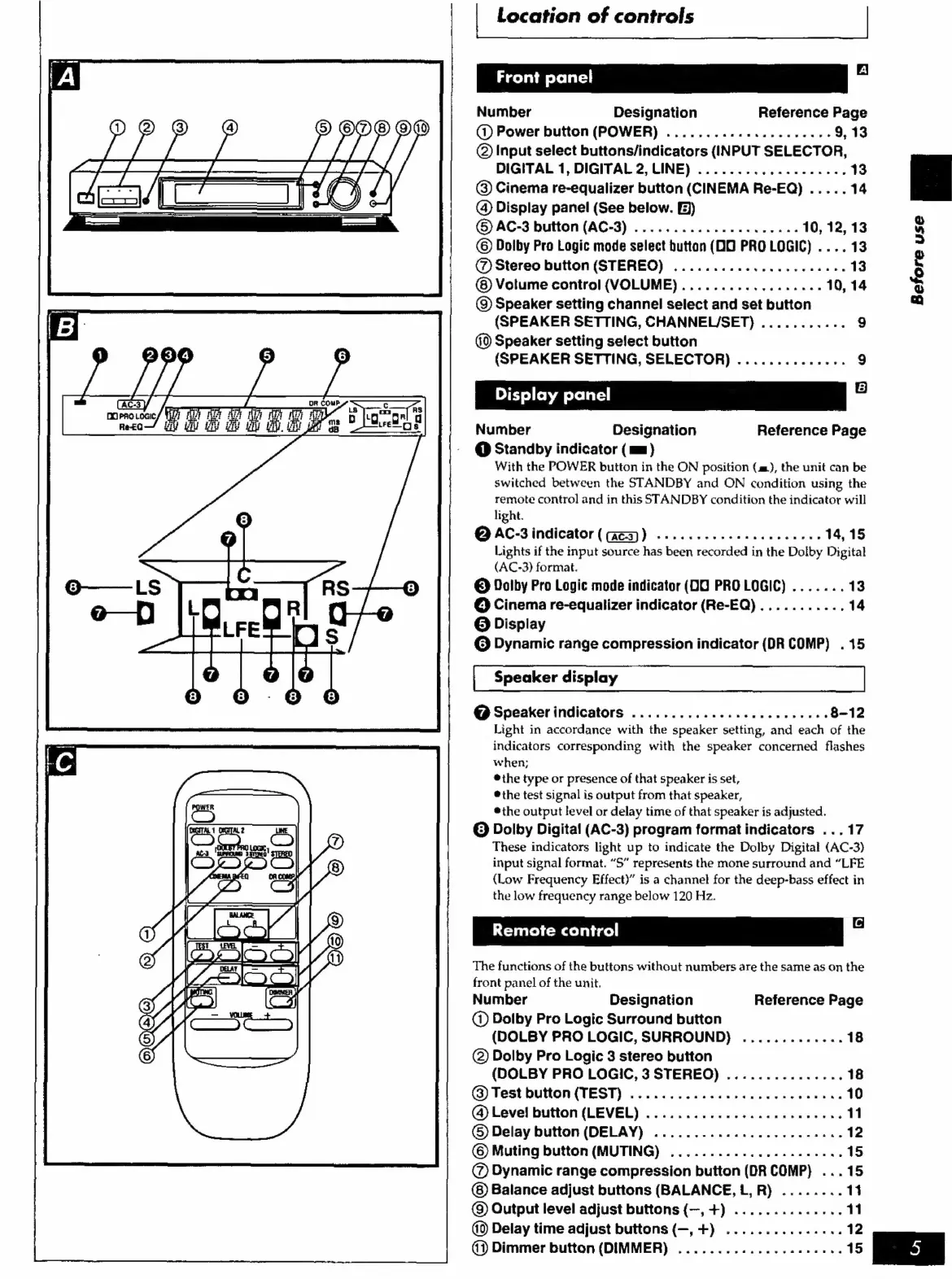

| Location of controls |
i
Number Designation Reference Page
(D Power button (POWER) ..................... 9, 13
(2) Input select buttons/indicators (INPUT SELECTOR,
DIGITAL 1, DIGITAL 2, LINE) ................... 13
@) Cinema re-equalizer button (CINEMA Re-EQ) ..... 14
@ Display panel (See below. E)
© AC-3 button (AC-3) ..................... 10, 12, 13
© Dolby Pro Logic mode select button (OO PRO LOGIC) .... 13
(7) Stereo button (STEREO) ...................... 13
Volume control (VOLUME) .................. 10, 14
© Speaker setting channel select and set button
(SPEAKER SETTING, CHANNEL/SET) ........... 9
Speaker setting select button
(SPEAKER SETTING, SELECTOR) .............. 9
i
Number Designation Reference Page
© Standby indicator (mm)
With the POWER button in the ON position (=), the unit can be
switched between the STANDBY and ON condition using the
remote control and in this STANDBY condition the indicator will
light.
© AC-3 indicator (mem) ..................... 14, 15
Lights if the input source has been recorded in the Dolby Digital
(AC-3) format.
© Dolby Pro Logic mode indicator (OO PRO LOGIC) ....... 13
© Cinema re-equalizer indicator (Re-EQ)........... 14
@ Display
@ Dynamic range compression indicator (DR COMP) . 15
Speaker display
@ Speaker indicators ......................... 8-12
Light in accordance with the speaker setting, and each of the
indicators corresponding with the speaker concerned flashes
when;
ethe type or presence of that speaker is set,
the test signal is output from that speaker,
ethe output level or delay time of that speaker is adjusted.
© Dolby Digital (AC-3) program format indicators ...17
These indicators light up to indicate the Dolby Digital (AC-3)
input signal format. “S” represents the mone surround and “LFE
(Low Frequency Effect)” is a channel for the deep-bass effect in
the low frequency range below 120 Hz.
C
Remote control ra
The functions of the buttons without numbers are the same as on the
front panel of the unit.
Number Designation Reference Page
(D Dolby Pro Logic Surround button
(DOLBY PRO LOGIC, SURROUND) ............. 18
(2) Dolby Pro Logic 3 stereo button
(DOLBY PRO LOGIC, 3 STEREO) ............... 18
(3) Test button (TEST) ........................... 10
(4) Level button (LEVEL) ........................, 11
(5) Delay button (DELAY) ........................ 12
© Muting button (MUTING) ...................... 15
@ Dynamic range compression button (DR COMP) ...15
Balance adjust buttons (BALANCE, L, R} ........ 11
© Output level adjust buttons {—, +) .............. 11
Delay time adjust buttons (—, +)
4) Dimmer button (DIMMER) .....................
