Technics SH-AC500D

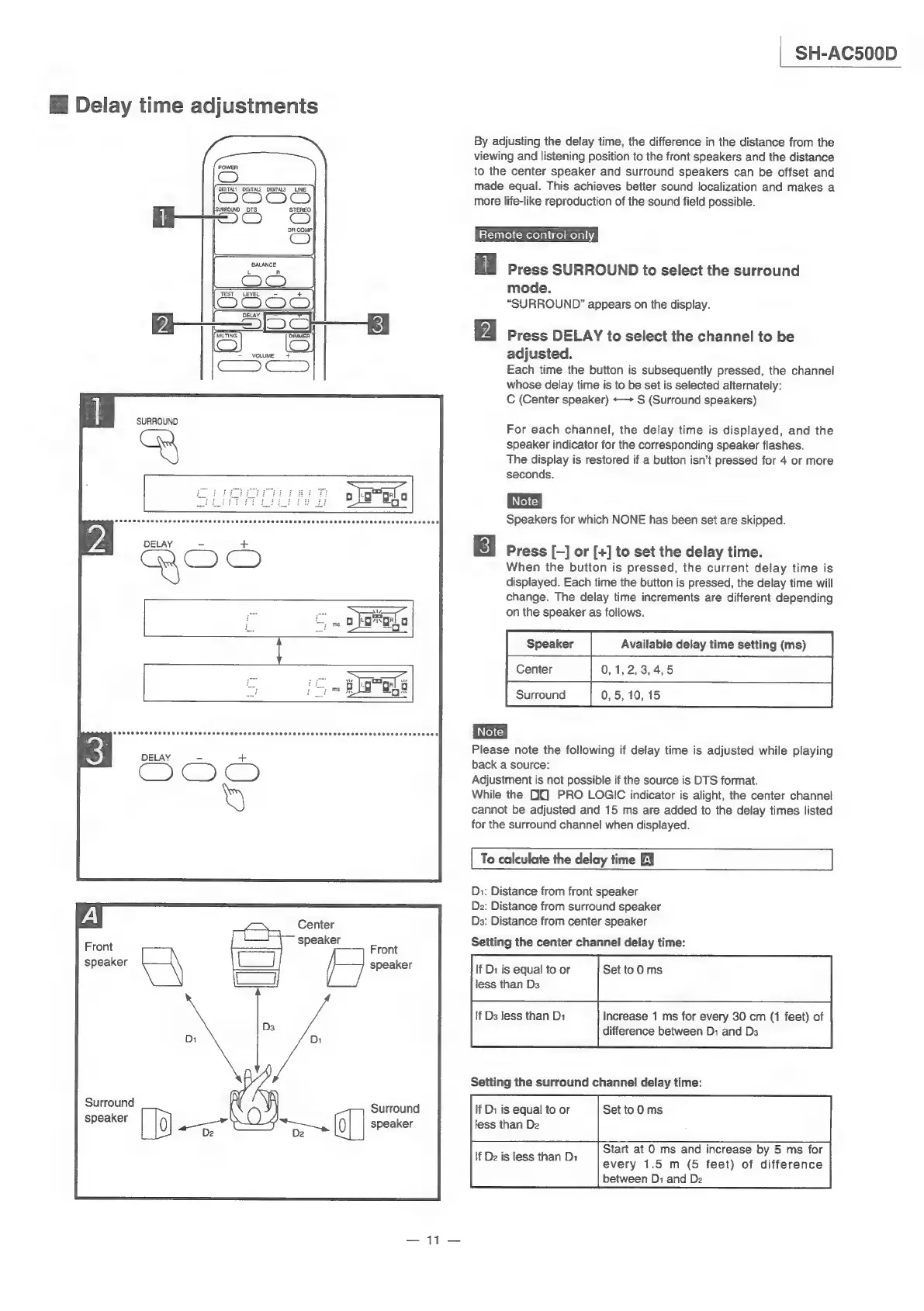

i Delay time adjustments
DIGITAL? LINE
S rn
Cotto)
SURROUND
Center
speaker
Front
Front
speaker
5
speaker
Surround
speaker
Surround
speaker
= 44 —
SH-AC500D
By adjusting the delay time, the difference in the distance from the
viewing and listening position to the front speakers and the distance
to the center speaker and surround speakers can be offset and
made equal. This achieves better sound localization and makes a
more life-like reproduction of the sound field possible.
Remote control only
Press SURROUND to select the surround
mode.
“SURROUND?” appears on the display.
Press DELAY to select the channel to be
adjusted.
Each time the button is subsequently pressed, the channel
whose delay time is to be set is selected alternately:
C (Center speaker) «— S (Surround speakers)
For each channel, the delay time is displayed, and the
speaker indicator for the corresponding speaker flashes.
The display is restored if a button isn’t pressed for 4 or more
seconds.
Speakers for which NONE has been set are skipped.
Press [-] or [+] to set the delay time.
When the button is pressed, the current delay time is
displayed. Each time the button is pressed, the delay time will
change. The delay time increments are different depending
on the speaker as follows.
Speaker Available delay time setting (ms)
Center 0, 1, 2, 3, 4,5
Surround 0,5, 10, 15
Please note the following if delay time is adjusted while playing
back a source:
Adjustment is not possible if the source is DTS format.
While the DM PRO LOGIC indicator is alight, the center channel
cannot be adjusted and 15 ms are added to the delay times listed
for the surround channel when displayed.
To calculate the delay time EN
D:: Distance from front speaker
Dz: Distance from surround speaker
Ds: Distance from center speaker
Setting the center channel delay time:
Set to 0 ms
{f Ds less than Di Increase 1 ms for every 30 cm (1 feet) of
difference between D: and Ds
Setting the surround channel delay time:
If D1 is equal to or Set to 0 ms
tess than Dz
P Start at 0 ms and increase by 5 ms for
Mile Steee isan every 1.5 m (5 feet) of difference
between D: and Dz
If Di is equal to or
less than Ds
