Technics SH-AC500D - Page 17

SH-AC500D

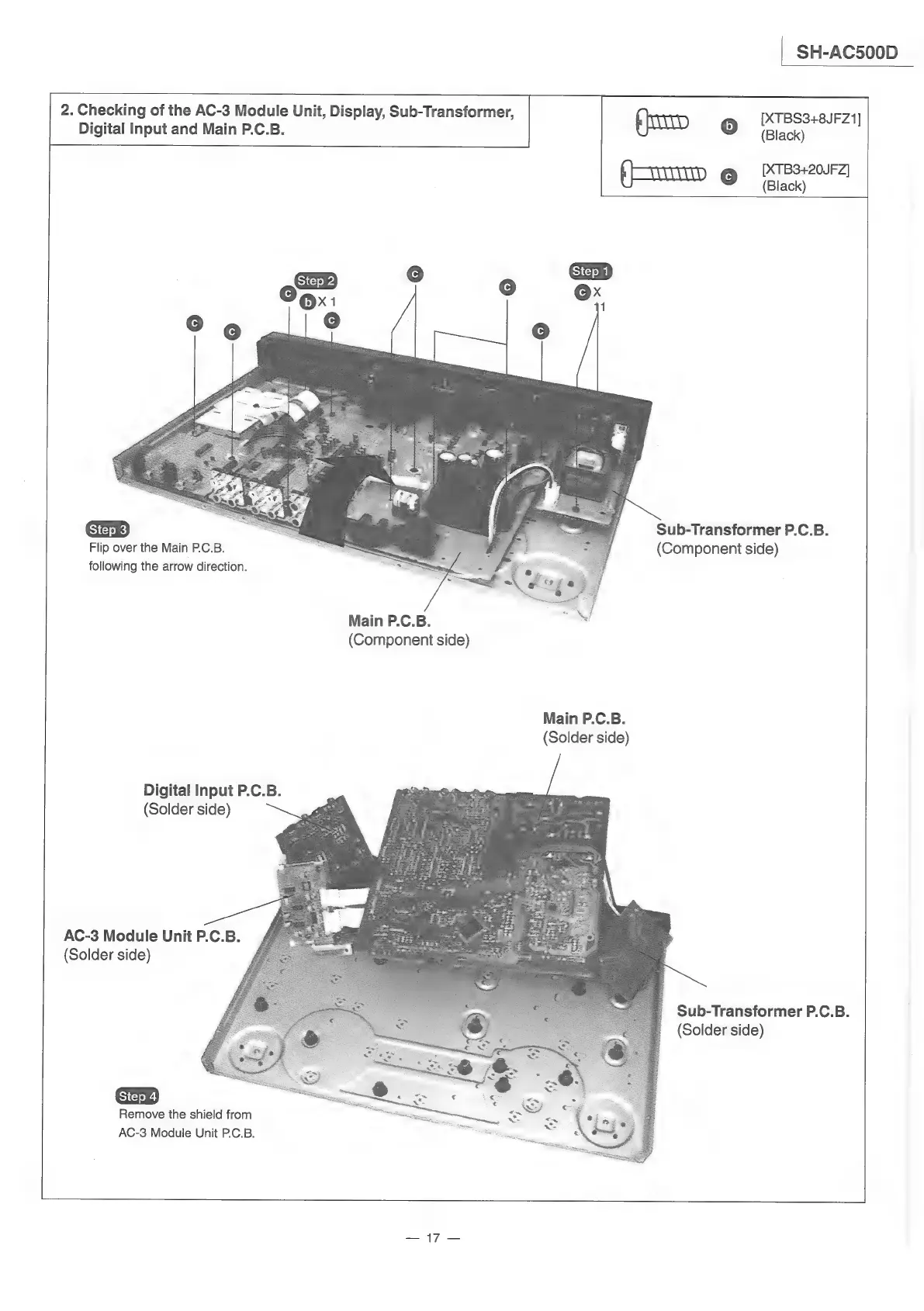

2. Checking of the AC-3 Module Unit, Display, Sub-Transformer,
; ivvay) [XTBS3+8JFZ1]
Digital
Input
and
Main
P.C.B.
Lb
(Black)
[XTB3+20JFZ]
(Farm o 2
Sub-Transformer P.C.B.
(Component side)
Flip over the Main PC.B.
following the arrow direction.
Main P.C.B.
(Component side)
Main P.C.B.
(Solder side)
Digital Input P.C.B.
(Solder side)
AC-3 Module Unit P.C.B.
(Solder side)
Sub-Transformer P.C.B.
(Solder side)
Remove the shield from
AC-3 Module Unit P.C.B.
ry ee
