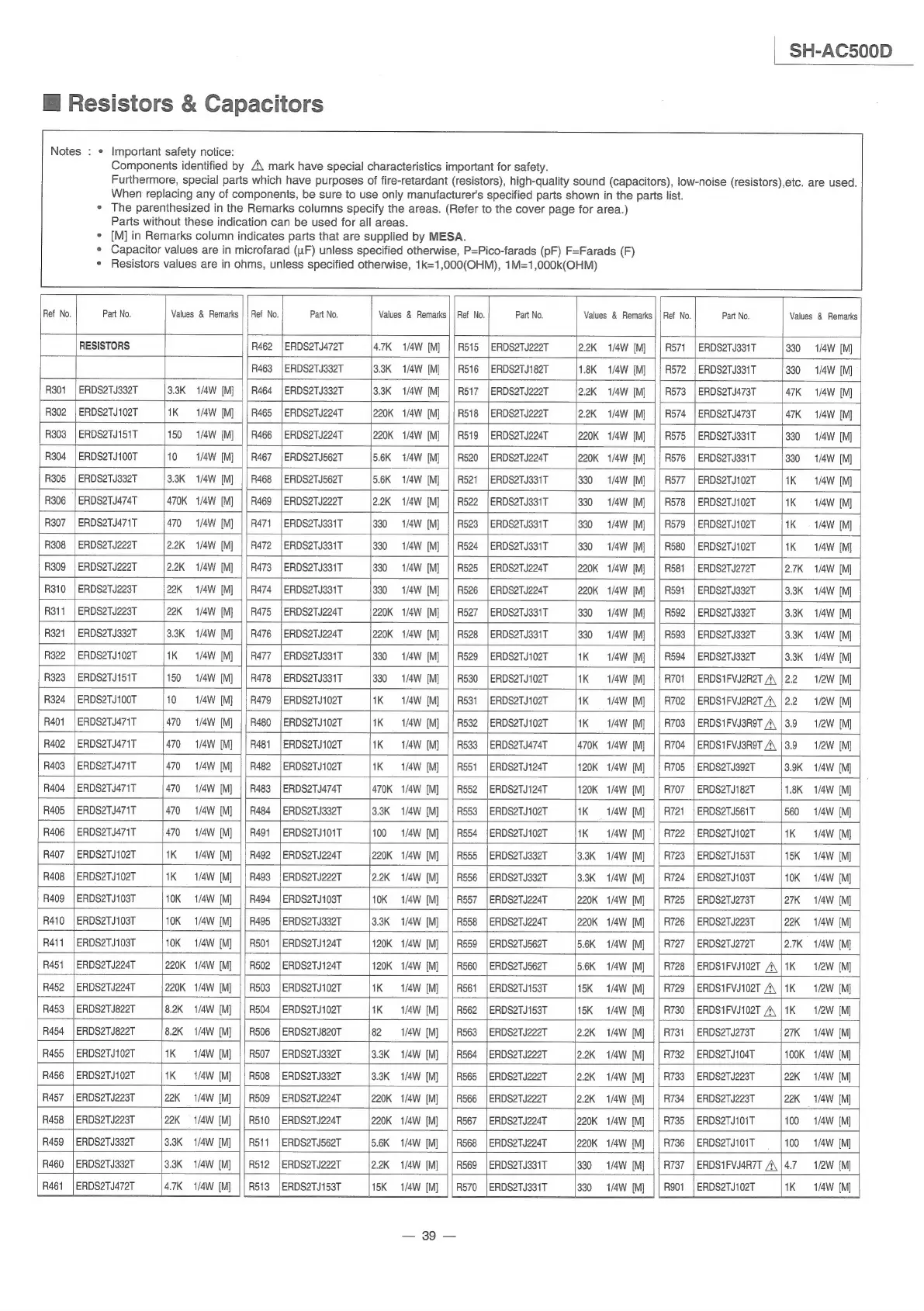

Technics SH-AC500D - Resistors and Capacitors

SH-AC500D
i Resistors & Capacitors
Notes : e Important safety notice:
Components identified by A\ mark have special characteristics important for safety.
Furthermore,
special
parts
which
have
purposes
of
fire-retardant
(resistors),
high-quality
sound
(capacitors),
low-noise
(resistors),etc.
are
used.
When replacing any of componenis, be sure to use only manufacturer's specified parts shown in the parts list.
° The parenthesized in the Remarks columns specify the areas. (Refer to the cover page for area.)
Parts without these indication can be used for all areas.
e [M] in Remarks column indicates parts that are supplied by MESA.
¢ Capacitor values are in microfarad (uF) unless specified otherwise, P=Pico-farads (pF) F=Farads (F)
e Resistors values are in ohms, unless specified otherwise, 1k=1,000(OHM), 1M=1,000k(OHM)
Ref
No.
Part
No.
Values
&
Remarks
||
Ref No.
Part
No.
Values
&
Remarks
|
|
Ref
No.
Part
No.
Values
&
Remarks
| |
Ref
No.
Part
No.
Values
&
Remarks
RESISTORS R462 |ERDS2TJ472T 4.7K 1/4W [M] || R515 |ERDS2TJ222T 2.2K 1/4W [M R571 | ERDS2TJ331T 330 1/4W [M
R463 |ERDS2TJ332T 3.3K 1/4W [M] || R516 /ERDS2TJ182T 1.8K 1/4W [M R572 | ERDS2TJ331T 330 1/4W [M
R801 | ERDS2TJ332T 3.3K 1/4W [M] || R464 |ERDS2TJ332T 3.3K 1/4W [M] || R517 |ERDS2TJ222T 2.2K 1/4W [M R573 | ERDS2TJ473T 47K 1/4W [M
R302 |ERDS2TJ102T 1K —-1/4W [M] || R465 |ERDS2TJ224T 220K 1/4W [M] || R518 |ERDS2TJ222T 2.2K 1/4W [M R574 | ERDS2TJ473T 47K 1/4W [M]
R303 |ERDS2TJ151T 150 1/4W [M] || R466 |ERDS2TJ224T 220K 1/4W [M] || R519 |ERDS2TJ224T 220K 1/4W [M R575 | ERDS2TJ331T 330 1/4W [M
R304 |ERDS2TJ100T 10 = 1/4W [M] || R467 |ERDS2TJ562T 5.6K 1/4W [M] || R520 |ERDS2TJ224T 220K 1/4W [M R576 | ERDS2TJ331T 330 1/4W [M
R305 | ERDS2TJ332T 3.3K 1/4W [M] || R468 |ERDS2TJ562T 5.6K 1/4W [M] || R521 |ERDS2TJ331T 330 1/4W [M R577 | ERDS2TJ102T 1K 1/4W [M
R306 | ERDS2TJ474T 470K 1/4W [M] || R469 |ERDS2TJ222T 2.2K 1/4W [M] || R522 |ERDS2TJ331T 330 1/4W [M R578 | ERDS2TJ102T 1K = 1/4W [M
R807 | ERDS2TJ471T 470 1/4W [M] || R471 |ERDS2TJ331T 330 1/4W [M] || R523 |ERDS2TJ331T 330 1/4W [M R579 | ERDS2TJ102T 1K = 1/4W [M]
R308 | ERDS2TJ222T 2.2K 1/4W [M] || R472 |ERDS2TJ331T 330 1/4W [M] || R524 |ERDS2TJ331T 330 1/4W [M R580 | ERDS2TJ102T 1K = 1/4W
R309 | ERDS2TJ222T 2.2K 1/4W R473 |ERDS2TJ331T 330 1/4W [M] || R525 |ERDS2TJ224T 220K 1/4W [M R581 | ERDS2TJ272T 2.7K 1/4W
R474 |ERDS2TJ331T 330 1/4W [M] || R526 |ERDS2TJ224T 220K 1/4W [M R591 | ERDS2TJ332T 3.3K 1/4W
R475 |ERDS2TJ224T 220K 1/4W [M] || R527 |ERDS2TJ331T 330 1/4W [M R592 | ERDS2TJ332T 3.3K 1/4W
R476 |ERDS2TJ224T 220K 1/4W [M] || R528 |ERDS2TJ331T 330 1/4W [M R593 | ERDS2TJ332T 3.3K 1/4W
ee te
R310 | ERDS2TJ223T 22K = 1/4W
R311 | ERDS2TJ223T 22K = 1/4W
R821 | ERDS2TJ332T 3.3K 1/4W
M
M M
M M
M M
M M
R322 | ERDS2TJ102T 1K — 1/4W [M] || R477 |ERDS2TJ331T 330 1/4W [M] || R529 |ERDS2TJ102T 1K —1/4W [M R594 | ERDS2TJ332T 3.3K 1/4W [M
R323 | ERDS2TJ151T 150 1/4W [M] || R478 |ERDS2TJ331T 330 1/4W [M] || R530 /ERDS2TJ102T 1K = 1/4W [M R701 |ERDSIFVJ2R2T A\ }2.2 1/2 [M
R324 | ERDS2TJ100T 10 = 1/4W [M] || R479 |ERDS2TJ102T 1K —1/4W [M] || R531 |ERDS2TJ102T 1K = 1/4W [M R702 /ERDSIFVJ2R2T/A\ |2.2 1/2W [M
R401 | ERDS2TJ471T 470 1/4W [M] || R480 |ERDS2TJ102T 1K = 1/4W [M] || R532 |ERDS2TJ102T 1K = 1/4W [M R703 |ERDSIFVJ3R9T /A\ |3.9 1/2W [M
R402 | ERDS2TJ471T 470 1/4W [M] || R481 |ERDS2TJ102T 1K — 1/4W [M] || R533 |ERDS2TJ474T 470K 1/4W [M R704 |ERDSIFVJ3R9T A\ |3.9 1/2W [M
R403 | ERDS2TJ471T 470 1/4W [M] || R482 |ERDS2TJ102T 1K = 1/4W [M] || R551 |ERDS2TJ124T 120K 1/4W [M R705 | ERDS2TJ392T 3.9K 1/4W [M
R404 | ERDS2TJ471T 470 1/4W [M] || R483 |ERDS2TJ474T 470K 1/4W [M] || R552 |ERDS2TJ124T 120K 1/4W [M R707 | ERDS2TJ182T 1.8K 1/4W [M
R405 | ERDS2TJ471T 470 1/4W [M] || R484 |ERDS2TJ332T 3.3K 1/4W [M] || R553 |ERDS2TJ102T 1K = 1/4W [M R721 | ERDS2TJ561T 560 1/4W [M
R406 | ERDS2TJ471T 470 1/4W [M] || R491 |ERDS2TJ101T 100 1/4W [M] || R554 |ERDS2TJ102T 1K = 1/4W [M R722 | ERDS2TJ102T 1K 1/4W [M
R407 | ERDS2TJ102T 1K = 1/4W [M] || R492 |ERDS2TJ224T 220K 1/4W [M] |) R555 |ERDS2TJ332T 3.3K 1/4W [M] || R723 |ERDS2TJ153T 15K = 1/4W [M
R408 | ERDS2TJ102T 1K = 1/4W [M] || R493 |ERDS2TJ222T 2.2K 1/4W [M] || R556 |ERDS2TJ332T 3.3K 1/4W [M R724 | ERDS2TJ103T 10K = 1/4W [M
R409 | ERDS2TJ103T 10K 1/4W [M] || R494 |ERDS2TJ103T 10K 1/4W [M] || R557 |ERDS2TJ224T 220K 1/4W [M R725 | ERDS2TJ273T 27K = 1/4W [M
R410 |ERDS2TJ103T 10K = 1/4W [M] || R495 /ERDS2TJ332T 3.3K 1/4W [M] || R558 |ERDS2TJ224T 220K 1/4W [M R726 | ERDS2TJ223T 22K = 1/4W [M
R411 | ERDS2TJ103T 10K 1/4W [M] || R501 |ERDS2TJ124T 120K 1/4W [M] || R559 |ERDS2TJ562T 5.6K 1/4W [M R727 | ERDS2TJ272T 2.7K 1/4W [M
R451 | ERDS2TJ224T 220K 1/4W [M] || R502 |ERDS2TJ124T 120K 1/4W [M] || R560 |ERDS2TJ562T 5.6K 1/4W [M R728 |ERDSIFVJ102T AV} 1K = -1/2W [M
R452 | ERDS2TJ224T 220K 1/4W [M] || R503 |ERDS2TJ102T 1K = 1/4W [M] || R561 |ERDS2TJ153T 15K 1/4W [M R729 |ERDSIFVJ102T A\ |} 1K = 1/2W [M
R453 | ERDS2TJ822T 8.2K 1/4W [M] || R504 |ERDS2TJ102T 1K = 1/4W [M] || R562 |/ERDS2TJ153T 15K = 1/4W [M R730 |ERDSIFVJ102T A\ | 1K = -1/2W [M
R454 |ERDS2TJ822T 8.2K 1/4W [M] || R506 |ERDS2TJ820T 82 = 1/4W [M] || R563 |ERDS2TJ222T 2.2K 1/4W [M R731 | ERDS2TJ273T 27K_—-1/4W [M
R455 | ERDS2TJ102T 1K = 1/4W [M] || R507 |ERDS2TJ332T 3.3K 1/4W [M] || R564 |ERDS2TJ222T 2.2K 1/4W [M R732 | ERDS2TJ104T 100K 1/4W [M
R456 | ERDS2TJ102T 1K — 1/4W [M] || R508 |ERDS2TJ332T 3.3K 1/4W [M] || R565 |ERDS2TJ222T 2.2K 1/4W [M R733 | ERDS2TJ223T 22K ~—1/4W [M
R457 | ERDS2TJ223T 22K = 1/4W [M] || R509 |ERDS2TJ224T 220K 1/4W [M] || R566 |ERDS2TJ222T 2.2K 1/4W [M R734 | ERDS2TJ223T 22K = 1/4W [M
R458 | ERDS2TJ223T 22K = 1/4W [M] || R510 |ERDS2TJ224T 220K 1/4W [M] || R567 |ERDS2TJ224T 220K 1/4W [M R735 | ERDS2TJ101T 100 1/4W [M
R459 | ERDS2TJ332T 3.3K 1/4W [M] || R511 |ERDS2TJ562T 5.6K 1/4W [M] || R568 |ERDS2TJ224T 220K 1/4W [M R736 | ERDS2TJ101T 100 1/4W [M
R460 |ERDS2TJ332T 3.3K 1/4W [M] || R512 |ERDS2TJ222T 2.2K 1/4W [M] || R569 |ERDS2TJ331T 330 = 1/4W [M R737 |ERDSIFVJ4R7T A\ | 4.7 1/2 [M
R461 | ERDS2TJ472T 4.7K 1/4W [M] || R513 |ERDS2TJ153T 15K = 1/4W [M] || R570 |ERDS2TJ331T 330 1/4W [M R901 | ERDS2TJ102T 1K 1/4W [M
