Technics SH-AC500D User Manual

SH-AC5O0D |

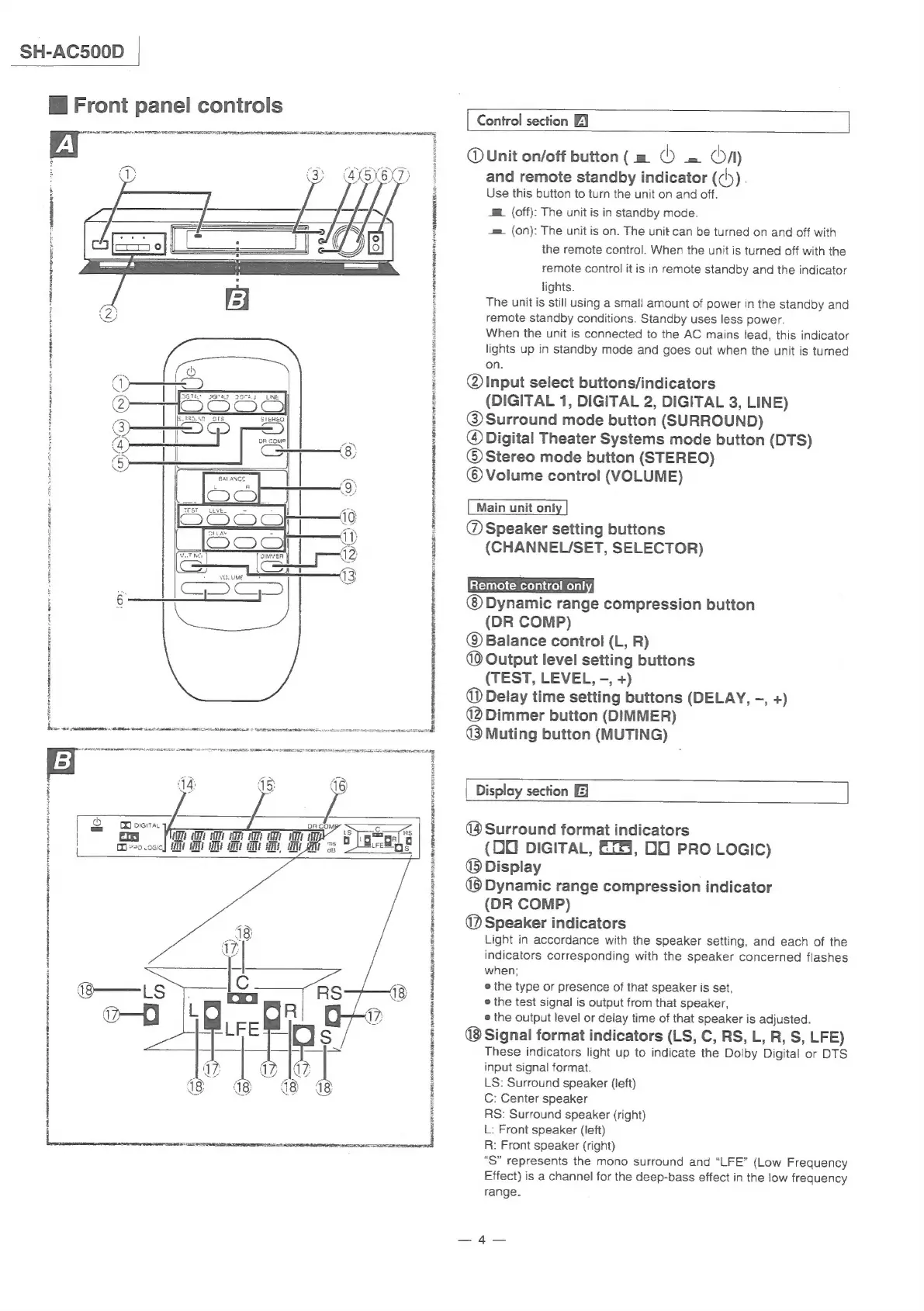

i Front panel controls
ers eegate vere ni
BEN cematinee er
Bee ester eceerntmana econ sence on: g
A RRA ELLIO ORME eG RERUN etal) nt Naar nn i Yr NERENE DHRR HECHT Ee
SR RARER Aiea mieten
pet anR eRe AOS NEEIAD
oieitaL
CO #29 Loic,
Sb POS PEO DE AOE TRAVIAN
SYNE PRL NMA SRI 2 PSSA AS SRNR ILO UUO MTN ERA HORII
Control section Zl
@ Unit on/off button( a © = cbf)
and remote standby indicator (¢/)) ,
Use this button to turn the unit on and off.
BZ (off): The unit is in standby mode.
-=. (on): The unit is on. The unit can be turned on and off with
the remote control. When the unit is turned off with the
remote control it is in remote standby and the indicator
lights.
The unit is still using a smali amount of power in the standby and
remote standby conditions. Standby uses less power.
When the unit is connected to the AC mains lead, this indicator
lights up in standby mode and goes out when the unit is turned
on.
@ Input select buttons/indicators
(DIGITAL 1, DIGITAL 2, DIGITAL 3, LINE)
@ Surround mode button (SURROUND)
@ Digital Theater Systems mode button (DTS)
© Stereo mode button (STEREO)
© Volume control (VOLUME)
Main unit oni
@ Speaker setting buttons
(CHANNEL/SET, SELECTOR)
@® Dynamic range compression button
(DR COMP)
@ Balance control (L, R)
(© Output level setting buttons
(TEST, LEVEL, -, +)
@ Delay time setting buttons (DELAY, -, +)
(2 Dimmer button (DIMMER)
(3 Muting button (MUTING)
| Display section E]
(@ Surround format indicators
(OU DIGITAL, E233, OO PRO LOGIC)
@ Display
(® Dynamic range compression indicator
(DR COMP)
@ Speaker indicators
Light in accordance with the speaker setting, and each of the
indicators corresponding with the speaker concerned flashes
when;
e the type or presence of that speaker is set,
e the test signal is output from that speaker,
e the output level or delay time of that speaker is adjusted.
18 Signal format indicators (LS, C, RS, L, R, S, LFE)
These indicators light up to indicate the Dolby Digital or DTS
input signal format.
LS: Surround speaker (left)
C: Center speaker
RS: Surround speaker (right)
L: Front speaker (left)
R: Front speaker (right)
“S" represents the mono surround and “LFE” (Low Frequency
Effect) is a channel for the deep-bass effect in the low frequency
range.

Technics SH-AC500D Specifications

Audio Specifications

outlet voltage	2 V
outlet impedance	1 kΩ
input impedance	22 kΩ
frequency response	20 Hz- 20 kHz, +1 dB
total harmonic distortion	0.007 %
dynamic range	96 dB
signal to noise ratio	100 dB
load impedance	More than 10 kΩ

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W

Weight and Dimensions

dimensions	430 X 69 X 301.4 mm
weight	2.6 kg
