Technics SH-E7 Service Manual

r

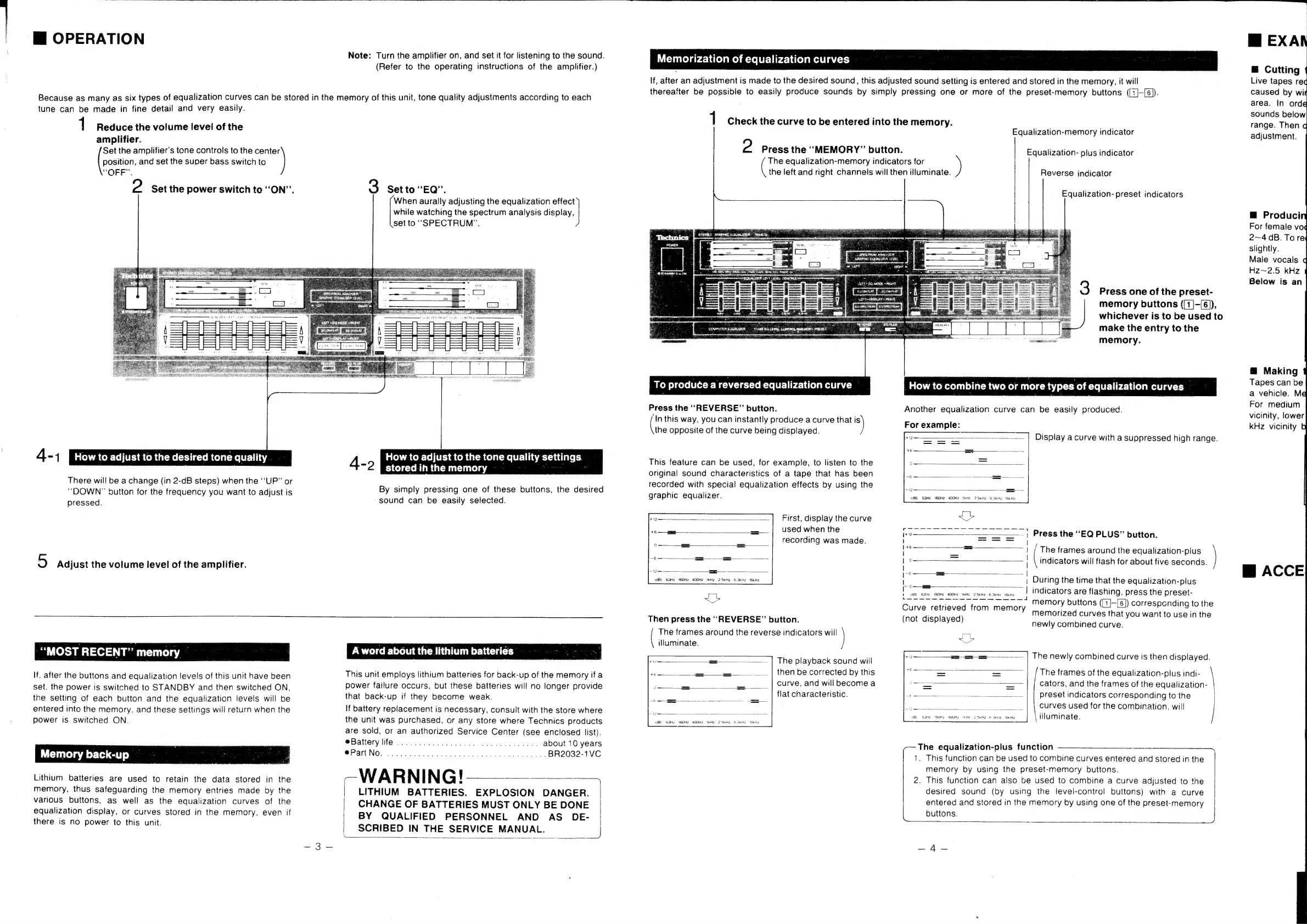

Mi OPERATION
Note: Turn the amplifier on, and set it for listening to the sound.
(Refer to the operating instructions of the amplifier.)
Because as many as six types of equalization curves can be stored in the memory of this unit, tone quality adjustments according to each
tune can be made in fine detail and very easily.
1 Reduce the volume level of the
amplifier.
Set the amplifier’s tone controls to the center
(rston and set the super bass switch to
“QFF”.
2 Set the power switch to ‘“ON’’.
4-1
How to adjust to the desired tone quality
There will be a change (in 2-dB steps) when the ‘‘UP” or
“DOWN” button for the frequency you want to adjust is
pressed.
5 Adjust the volume level of the amplifier.
3 Set to “EQ”.
When aurally adjusting the equalization effect
while watching the spectrum analysis doa
set to “SPECTRUM”.
A How to adjust to the tone quality settings
stored.ih the memory
By simply pressing one of these buttons, the desired
sound can be easily selected.
“MOST RECENT” memory
If, after the buttons and equalization levels of this unit have been
set, the power is switched to STANDBY and then switched ON,
the setting of each button and the equalization levels will be
entered into the memory, and these settings will return when the
power is switched ON.
Memory back-up
Lithium batteries are used to retain the data stored in the
memory, thus safeguarding the memory entries made by the
various buttons, as well as the equalization curves of the
equalization
display,
or
curves
stored
in
the
memory,
even
if
there is no power to this unit.
A word about the lithium batteries
This unit employs lithium batteries for back-up of the memory if a
power failure occurs, but these batteries will no longer provide
that back-up if they become weak.
If battery replacement is necessary, consult with the store where
the unit was purchased, or any store where Technics products
are sold, or an authorized Service Center (see enclosed list).
SBattery liens vests Lalo aSts ge ateann own. about 10 years
@ Part NOs issn tig eietui seh nclnea nica.) ake Relteteoe: BR2032-1VC
WARNING!
LITHIUM BATTERIES. EXPLOSION DANGER.
CHANGE OF BATTERIES MUST ONLY BE DONE
| BY QUALIFIED PERSONNEL AND AS DE-
i
|
SCRIBED IN THE SERVICE MANUAL. J
Memorization of equalization curves
If, after an adjustment is made to the desired sound, this adjusted sound setting is entered and stored in the memory, it will
thereafter be possible to easily produce sounds by simply pressing one or more of the preset-memory buttons ({1]-[6)).
1 Check the curve to be entered into the memory.
2 Press the ‘‘MEMORY” button.
Equalization-memory indicator
Equalization- plus indicator
The equalization-memory indicators for }
the left and right channels will then illuminate. Reverse indicator
© astaabare won
Press the “REVERSE” button.
a this way, you can instantly produce a curve that )
the opposite of the curve being displayed.
This feature can be used, for example, to listen to the
original sound characteristics of a tape that has been
recorded with special equalization effects by using the
graphic equalizer.
First, display the curve
used when the
recording was made.
-R2—
(0B) 63Hz 16OHz 400H2 tkHz 25kHz 6 3KHZ IBKHZ
Then press the “REVERSE” button.
The frames around the reverse indicators will
illuminate.
The playback sound will
then be corrected by this
curve, and will become a
flat characteristic.
sOBI 63He 16OHZ SO0HZ KHZ 2 5KHZ 6H GRHE IHRH
Equalization- preset indicators
3 Press one of the preset-
memory buttons ((1}-(6]),
whichever is to be used to
make the entry to the
Sai ae ina memory.
How to combine two or more types of equalization curves
Another equalization curve can be easily produced.
For example:
Display a curve with a suppressed high range.
—-| Press the “EQ PLUS” button.
I+e
=
The
frames
around
the
equalization-pius
|
indicators
will
flash
for
about
five
seconds.
During the time that the equalization-plus
| indicators are flashing, press the preset-
memory buttons ((1]-[6]) correspcnding to the
memorized curves that you want to use in the
newly combined curve.
.— — - —
Curve retrieved from memory
(not displayed)
The frames of the equalization-plus indi-
cators, and the frames of the equalization-
preset indicators corresponding to the
curves used for the combination, will
illuminate.
OB) 63H2 “6OMZ S00H2 Tez 2 SKHZ 6 3kH2 16HZ
1. This function can be used to combine curves entered and stored in the
memory by using the preset-memory buttons.
2. This function can also be used to combine a curve adjusted to the
desired sound (by using the levei-control buttons) with a curve
entered and stored in the memory by using one of the preset-memory
buttons.
arn equalization-plus function
Noss eese
ey eee
MEXA
@ Cutting
Live tapes red
caused by wi
area. In orde
sounds below
range. Then q
adjustment.
@ Produci
For female vod
2~4 dB. Tore
slightly.
Male vocals q
Hz~2.5 kHz
Below is an
@ Making
Tapes can be
a vehicle. Me
For medium
vicinity, lower
kHz vicinity b
M ACCE
