Technics SH-GS71 User Manual

® Remove a piece of the outer
vinyl insulator.
(== (ee
bo—_———_e}
20 mm
(25/32”)
@ Twist the shield braid to
expose the core wire.
75-ohms
coaxial cable CR
(not included) 4 10 mm (3/8”)
b—e Core wire
FM outdoor antenna
(not included)
Shield braid
AM outdoor antenna
(not included)
==
Vinyl-covered wire
AM loop antenna (included)

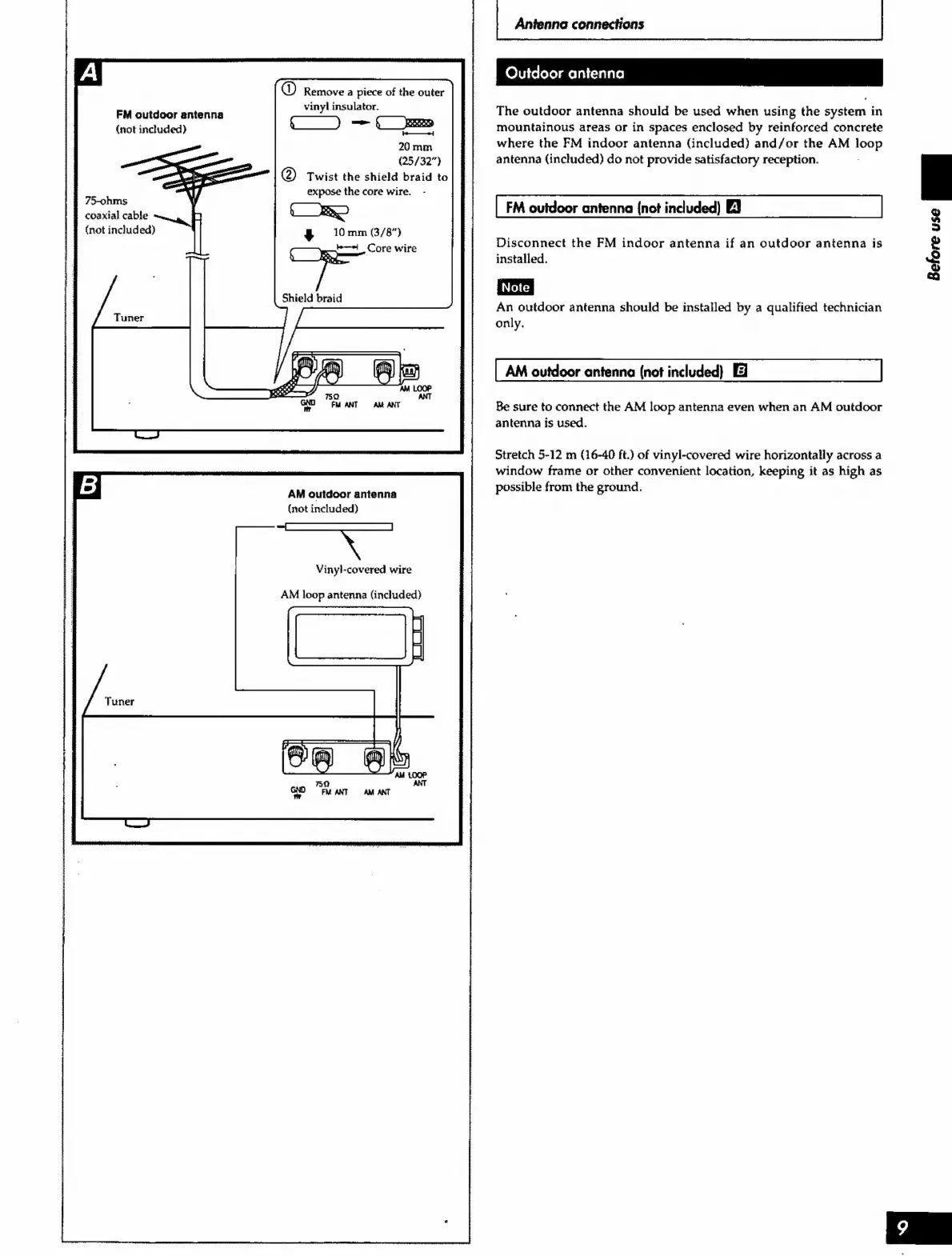

| Antenna connections |
Outdoor antenna
The outdoor antenna should be used when using the system in
mountainous areas or in spaces enclosed by reinforced concrete
where the FM indoor antenna (included) and/or the AM loop
antenna (included) do not provide satisfactory reception.
FM outdoor antenna (not included) £3
Disconnect the FM indoor antenna if an outdoor antenna is
installed.
An outdoor antenna should be installed by a qualified technician
only.
AM outdoor antenna (not included} El
Be sure to connect the AM loop antenna even when an AM outdoor
antenna its used.
Stretch 5-12 m (16-40 ft.) of vinyl-covered wire horizontally across a
window frame or other convenient location, keeping it as high as
possible from the ground.
