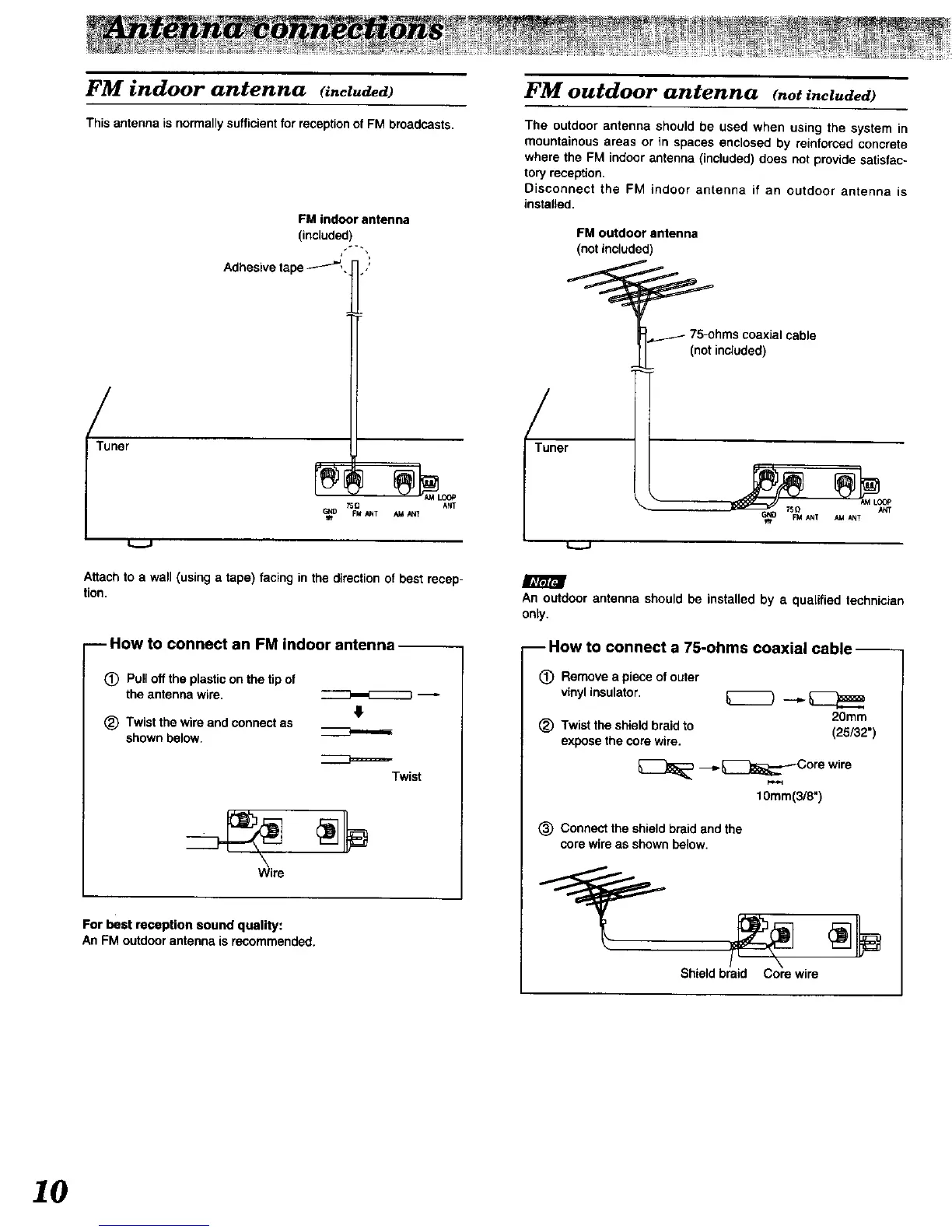

FM indoor antenna (included)
This antenna is normally sufficient for reception of FM broadcasts.
FM indoor antenna
(included)
i, _-- ,
Adhesive tape ----_,,
nar
_Q ANT
GND FM /_NT AM AN7
m
Attach to a wall (using a tape) facing in the direction of best recep-
tion.
-- How to connect an FM indoor antenna
(_) Pull off the plastic on the tip of
the antenna wire.
(_) Twistthewireand connectas
shownbelow.
O
Twist
\
Wire
For best reception sound quality:
An FM outdoor antenna is recommended.
FM outdoor antenna (not included)
The outdoor antenna should be used when using the system in
mountainous areas or in spaces enclosed by reinforced concrete
where the FM indoor antenna (included) does not provide satisfac-
tory reception.
Disconnect the FM indoor antenna if an outdoor antenna is
installed.
FM outdoor antenna
(not included
ner
75-ohms coaxial cable
(net included)
GNO FM ANT AM ANT
_t
An outdoorantenna shouldbe installedby a qualified technician
only.
-- How to connect a 75oohms coaxial cable --
(_) Removea piece of outer
vinylinsulator.
(_) Twist the shield braid to
expose the core wire.
20mm
(25/32")
_ ___.E_t_--_Core wire
10mm(3/8")
_) Connect the shield braid and the
core wire as shown below.
/ t \\
Shield braid Core wire
10
