Technics SL-Q303 Service Manual

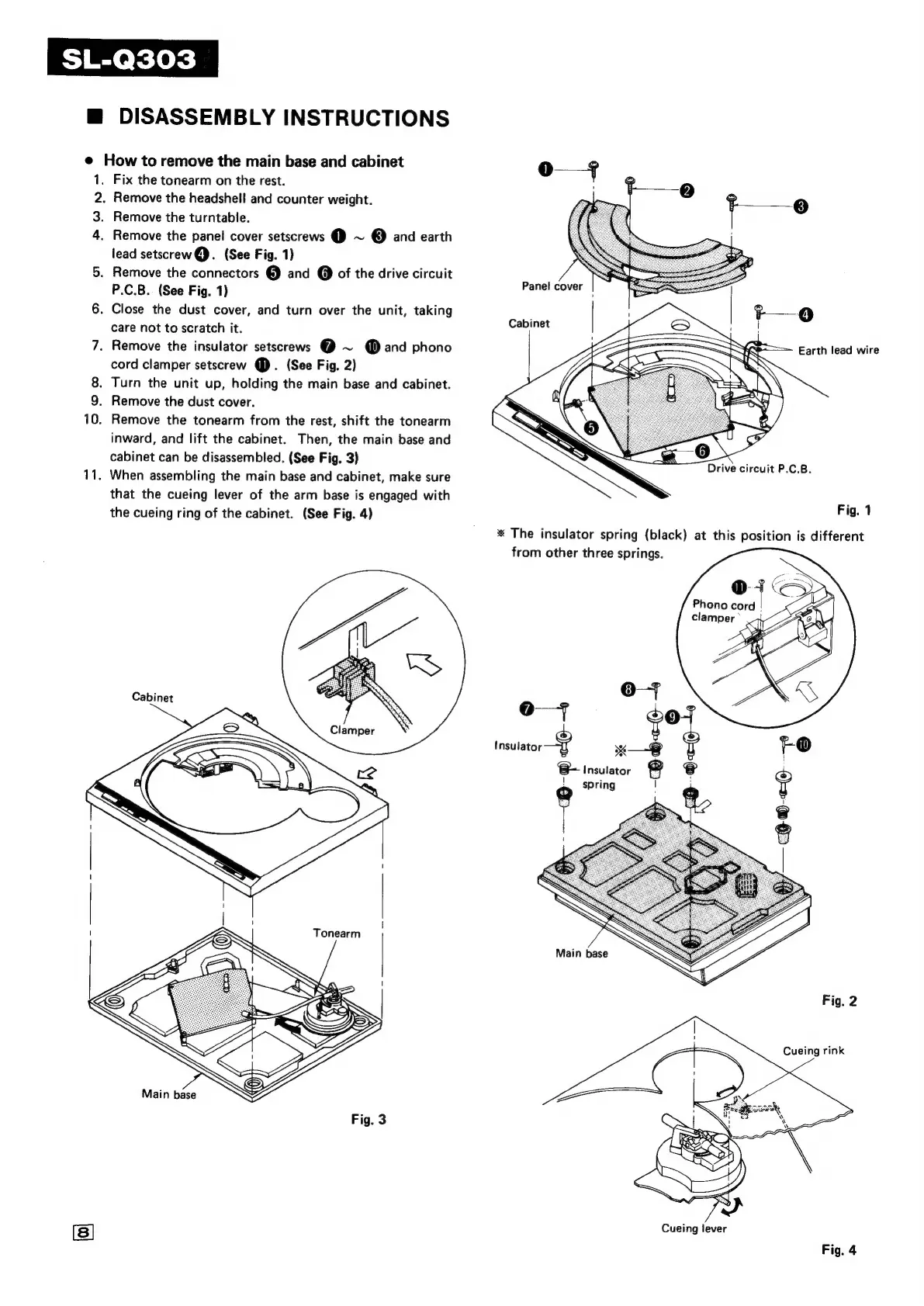

DISASSEMBLY INSTRUCTIONS
® How to remove the main base and cabinet
1.
2.
3.
4,
5.
11,
Fix the tonearm on the rest.
Remove the headshell and counter weight.
Remove the turntable.
Remove the panel cover setscrews @ ~ © and earth
lead setscrew@. (See Fig. 1)
Remove the connectors @ and @ of the drive circuit
P.C.B.. (See Fig. 1)
. Close the dust cover, and turn over the unit, taking
care not to scratch it.
. Remove the insulator setscrews @ ~ @ and phono
cord clamper setscrew @. (See Fig. 2)
Turn the unit up, holding the main base and cabinet.
Remove the dust cover.
Remove the tonearm from the rest, shift the tonearm
inward, and lift the cabinet. Then, the main base and
cabinet can be disassembled. (See Fig. 3)
When assembling the main base and cabinet, make sure
that the cueing lever of the arm base is engaged with
the cueing ring of the cabinet. (See Fig. 4)
Panel cover
Cabinet
oF
aise Se %
Drive circuit P.C.B.
Fig. 1
* The insulator spring (black) at this position is different
from other three springs.
o
ah
beg
e- Insulato =
1
° spring
Main base
Fig. 2
Cueing rink
Cueing lever
Fig. 4
