Technics SL-Q303

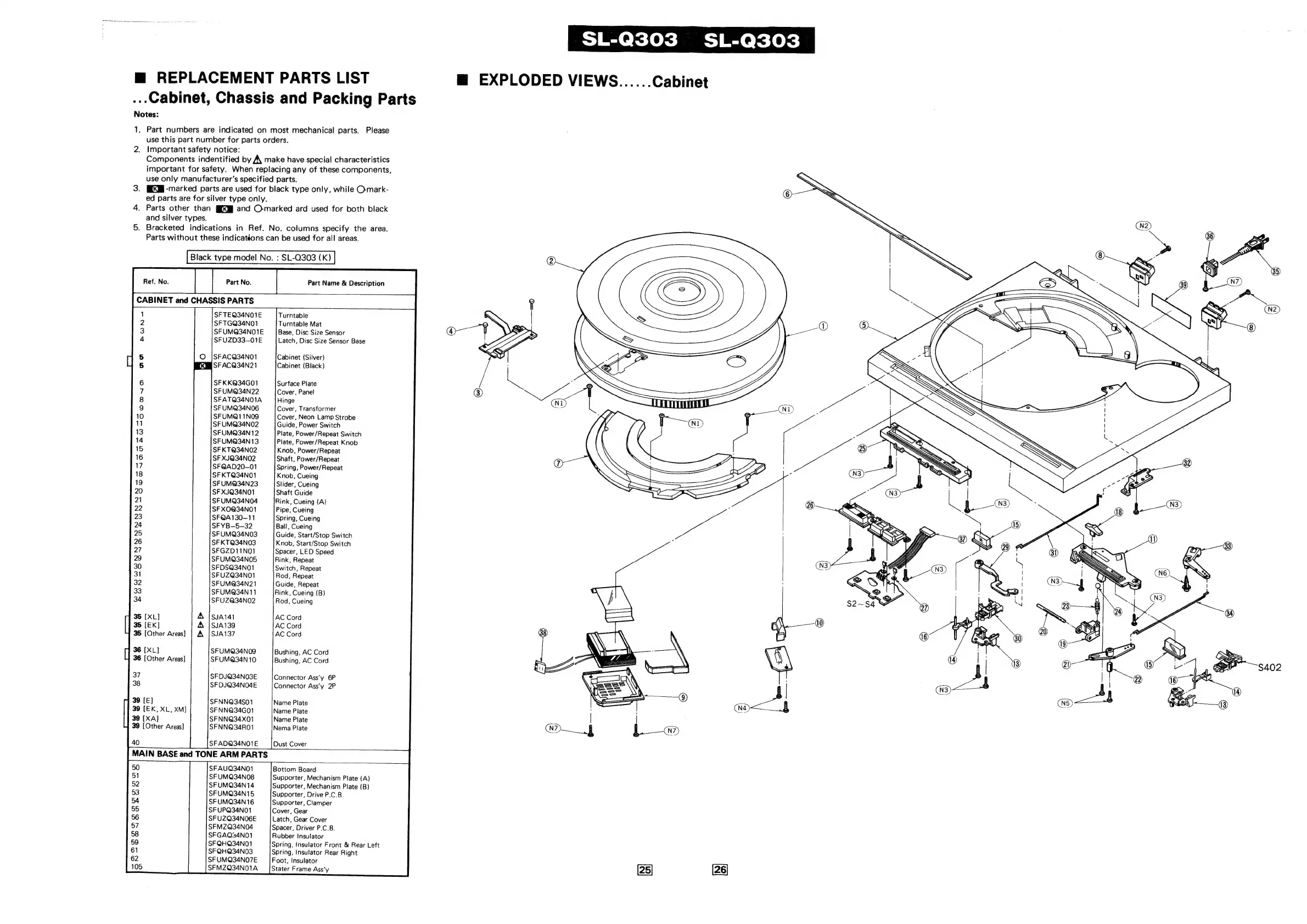

m REPLACEMENT PARTS LIST
...Cabinet, Chassis and Packing Parts
Notes:
1. Part numbers are indicated on most mechanical parts. Please
use this part number for parts orders.
2. Important safety notice:
Components indentified by A\ make have special characteristics
important for safety. When replacing any of these components,
use only manufacturer's specified parts.
3. [ll -marked parts are used for black type only, while O-mark-
ed parts are for silver type only.
4. Parts other than IK and Omarked ard used for both black
and silver types.
5. Bracketed indications in Ref. No. columns specify the area.
Parts without these indicatéons can be used for all areas.
Black type model No. : SL-Q303 (K)
Part Name & Description
CABINET and CHASSIS PARTS
35 [XL]
35 [EK]
35 [Other Areas]
36 [XL]
36 [Other Areas]
37
38
39 [E]
39 [EK, XL, XM]
39 [XA]
39 [Other Areas]
SFTEQ34NO1E
SFTGQ34N01
SFUMQ34NO1E
SFUZD33-—01E
SFACQ34N01
SFACQ34N21
SFKKQ34G01
SFUMQ34N22
SFATQ34NO1A
SFUMQ34NO6
SFUMQ11NO9
SFUMQ34N02
SFUMQ34N12
SFUMQ34N13
SFKTQ34N02
SFXJQ34N02
SFQAD20-01
SFKTQ34N01
SFUMQ34N23
SFXJQ34NO01
SFUMQ34N04
SFXO@Q34NO01
SFQA130-11
SFYB—5—32
SFUMQ34N03
SFKTQ34N03
SFGZD11NO1
SFUMQ34NO05
SFDSQ34N01
SFUZQ34N01
SFUM@34N21
SFUMQ34N11
SFUZQ34N02
A /sJA141
A |SJA139
A |SJA137
SFUM@34N09
SFUMQ34N10
SFDJQ34NO03E
SFDJQ34NO4E
SFNNQ34S01
SFNN@34G01
SFNNQ34Xx01
SFNNQ34R01
SFADQ34NO1E
Turntable
Turntable Mat
Base, Disc Size Sensor
Latch, Disc Size Sensor Base
Cabinet (Silver)
Cabinet (Black)
Surface Plate
Cover, Panel
Hinge
Cover, Transformer
Cover, Neon Lamp Strobe
Guide, Power Switch
Plate, Power/Repeat Switch
Plate, Power/Repeat Knob
Knob, Power/Repeat
Shaft, Power/Repeat
Spring, Power/Repeat
Knob, Cueing
Slider, Cueing
Shaft Guide
Rink, Cueing (A)
Pipe, Cueing
Spring, Cueing
Ball, Cueing
Guide, Start/Stop Switch
Knob, Start/Stop Switch
Spacer, LED Speed
Rink, Repeat
Switch, Repeat
Rod, Repeat
Guide, Repeat
Rink, Cueing (B)
Rod, Cueing
AC Cord
AC Cord
AC Cord
Bushing, AC Cord
Bushing, AC Cord
Connector Ass'y 6P
Connector Ass‘y 2P
Name Plate
Name Plate
Name Plate
Nema Plate
Dust Cover
SFAUQ34N01
SFUMQ34N08
SFUMQ34N14
SFUMQ34N15
SFUMQ34N16
SFUPQ34N01
SFUZQ34NO6E
SFMZQ34N04
SFGAQ34N01
SFQHQ34N01
SFQHQ34N03
SFUMQ34N07E
SFMZQ34N01A
Bottom Board
Supporter, Mechanism Plate (A)
Supporter, Mechanism Plate (B)
Supporter, Drive P.C.B.
Supporter, Clamper
Cover, Gear
Latch, Gear Cover
Spacer, Driver P.C.B.
Rubber Insulator
Spring, Insulator Front & Rear Left
Spring, Insulator Rear Right
Foot, Insulator
Stater Frame Ass‘y
SL-Q303 SL-Q303
m
EXPLODED
VIEWS......Cabinet
