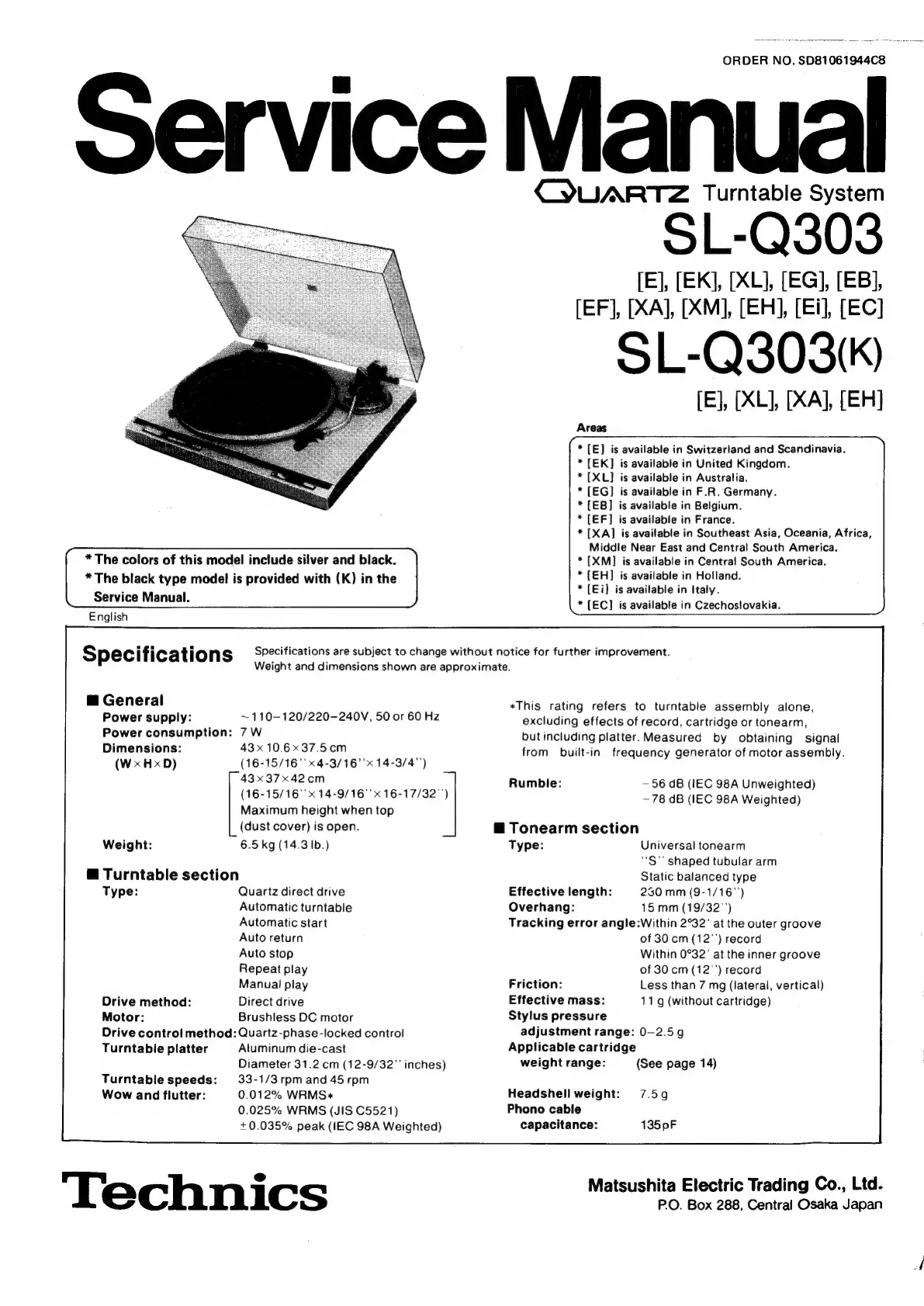

Technics SL-Q303 Service Manual

* The colors of this model include silver and black.
* The black type model is provided with (K) in the
Service Manual.
English
Specifications
@ General
Power supply: ~110-—120/220-240V, 50 or 60 Hz
Power consumption: 7W
Dimensions: 43x 10.6x37.5cm
(WxHxD) (16-15/16"' x4-3/16''x 14-3/4"')
43x 37x42cm
(16-15/16''x 14-9/16"' x 16-17/32"')
Maximum height when top
(dust cover) is open.
Weight: 6.5 kg (14.3 Ib.)
@ Turntable section
Type: Quartz direct drive
Automatic turntable
Automatic start
Auto return
Auto stop
Repeat play
Manual play
Drive method: Direct drive
Motor: Brushless DC motor
Drive control method: Quartz-phase-locked contro!
Turntable platter Aluminum die-cast
Diameter 31.2 cm (12-9/32"’ inches)
33-1/3 rpm and 45 rpm
0.012% WRMS»*
0.025% WRMS (JIS C5521)
+0.035% peak (IEC 98A Weighted)
Turntable speeds:
Wow and flutter:
‘Technics
Service Manual
ORDER NO. SD81061944C8
COUARTZ Turntable System
SL- Q303
[E], [EK], [XL], [EG], [EB],
[EF], [XA], Dea [EH], (Ei), [EC]
SL-Q303(K)
[E], [XL], [XA], =
Areas
* [E] is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
* [XL] is available in Australia.
* [EG] is available in F.R. Germany.
* [EB] is available in Belgium.
* [EF] is available in France.
* [XA] is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [XM] is available in Central South America.
* [EH] is available in Holland.
* [Ei] is available in Italy.
* [EC] is available in Czechoslovakia.
Specifications are subject to change without notice for further improvement.
Weight and dimensions shown are approximate.
*This rating refers to turntable assembly alone,
excluding effects of record, cartridge or tonearm,
but including platter. Measured by obtaining signal
from built-in frequency generator of motor assembly.
Rumble: —56 dB (IEC 98A Unweighted)
~ 78 dB (IEC 98A Weighted)
@ Tonearm section
Universal tonearm
“S" shaped tubular arm
Static balanced type
Effective length: 230 mm (9-1/16"')
Overhang: 15 mm (19/32"’)
Tracking error angle:Within 2°32’ at the outer groove
of 30 cm (12"') record
Within 0°32’ at the inner groove
of 30 cm (12"') record
Less than 7 mg (lateral, vertical)
11g (without cartridge)
Type:
Friction:
Effective mass:
Stylus pressure
adjustment range: 0-2.5g
Applicable cartridge
weight range: (See page 14)
Headshell weight: 7.5g
Phono cable
capacitance: 135 pF
