Technics SL-QX300

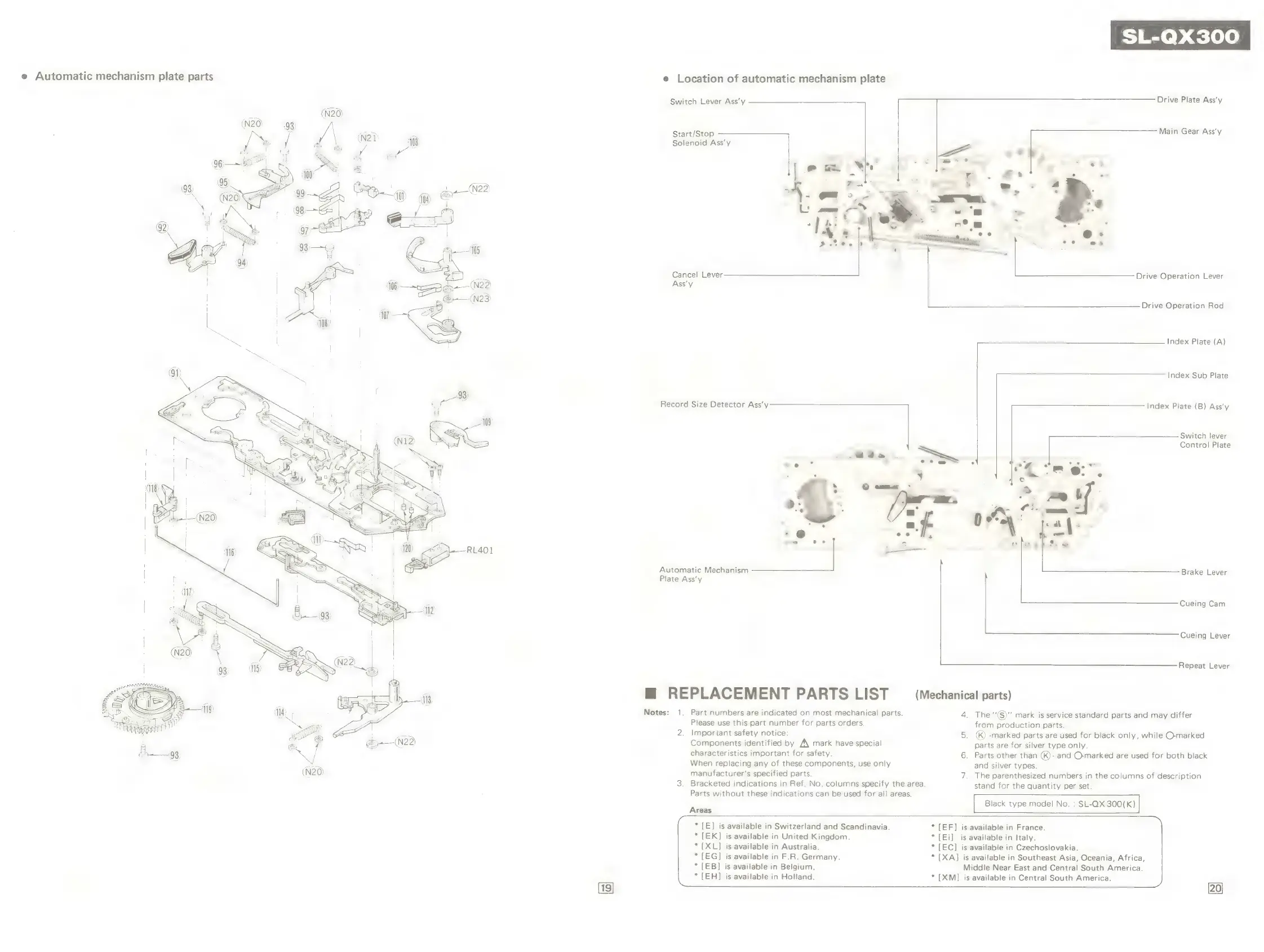

e Automatic mechanism plate parts
J
(0) er—
—W) @ ©
(N22)
Drive Plate Ass’y
e Location of automatic mechanism plate
Switch Lever Ass’y
Start/Stop
Main
Gear
Ass‘y
Solenoid Ass’y
Cancel Lever Drive Operation Lever
Ass’y
Drive Operation Rod
Index Plate (A)
See lindex'Sub Plate
Record
Size
Detector
Ass’y
Index
Plate
(B)
Ass’y
Switch lever
Control Plate
Automatic
Mechanism
Brake
Lever
Plate Ass’y
Cueing Cam
Cueing Lever
Repeat Lever
m REPLACEMENT PARTS LIST (Mechanical parts)
Notes: 1. Part numbers are indicated on most mechanical parts. 4. The ‘'(S)" mark is service standard parts and may differ
Please
use
this
part
number
for
parts
orders.
from
production
parts.
2. Important safety notice: 5. (K) -marked parts are used for black only, while O-marked
Components identified by A\ mark have special parts are for silver type only,
characteristics important for safety. 6. Parts other than (K)- and O-marked are used for both black
When replacing any of these components, use only and silver types.
manufacturer's specified parts. 7. The parenthesized numbers in the columns of description
3. Bracketed indications in Ref. No. columns specify the area. stand for the quantity per set.
Parts without these indications can be used for all areas.
Black type model No. : SL-OX 300(K)
Areas
* [E] is available in Switzerland and Scandinavia. * [EF] is available in France.
* [EK] is available in United Kingdom. * [Ei] is available in Italy.
* [XL] is available in Australia. * [EC] is available in Czechoslovakia.
* [EG] is available in F.R. Germany. * [XA] is available in Southeast Asia, Oceania, Africa,
* [EB] is available in Belgium. Middle Near East and Central South America.
* [EH] is available in Holland. * [XM] is available in Central South America.
