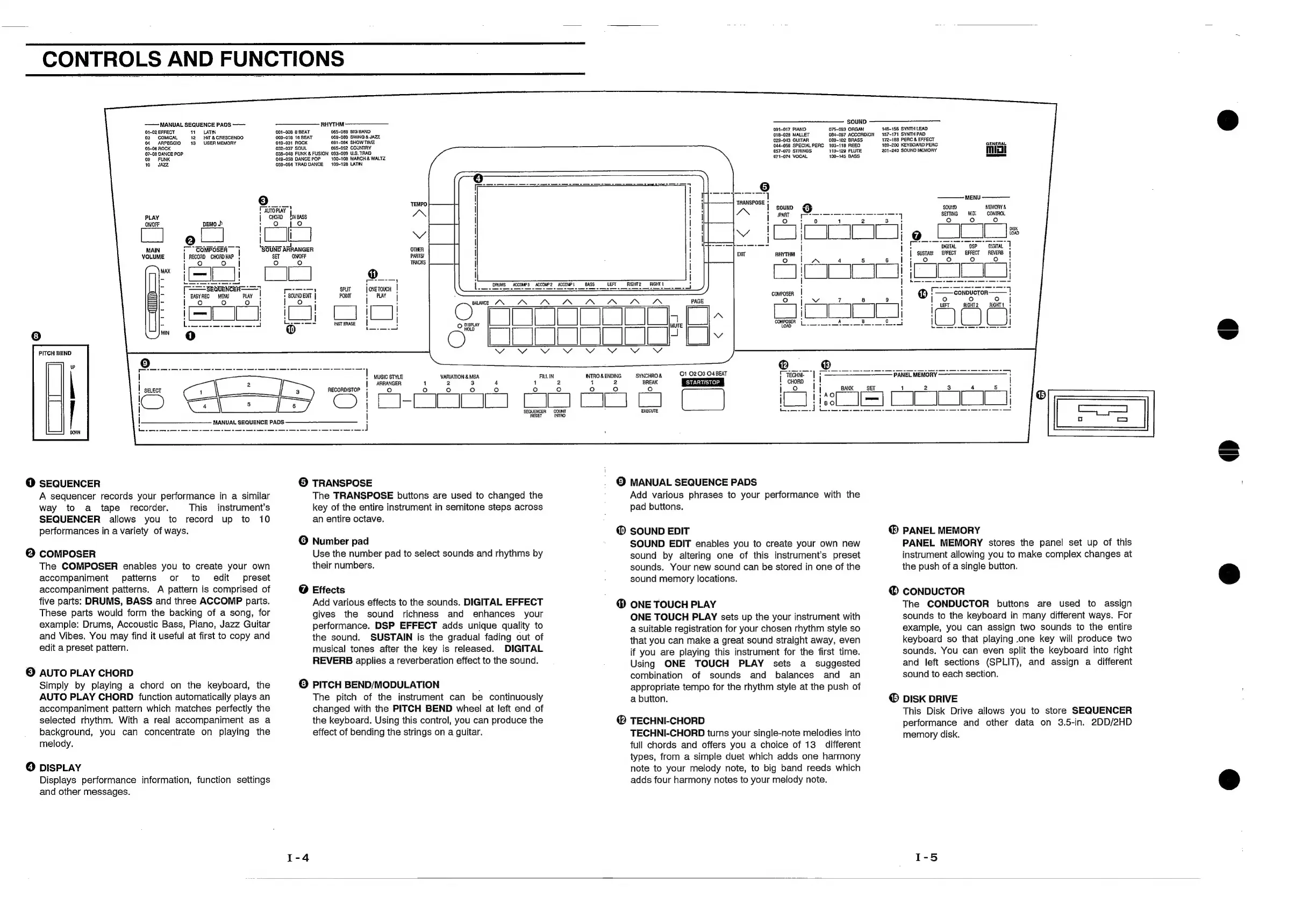

Technics SX-KN920 Service Manual

oh eee
——— MANUAL SEQUENCE PADS ——~
01-02 EFFECT 41 LATIN 001-008 § SEAT
03° COMICAL 12 HiT & CRESCENDO 009-018 16 BEAT
019-031 ROCK
04 ARPEGGIO 13° USER MEMORY
032-037 SOUL
05-06 ROC
07-08 DANCE POP
10 JAZZ
13)
T AUTOPLAY
rerddtd
fe) Of oO
PITCH BEND
MANUAL SEQUENCE PADS ————~———————
@ SEQUENCER
A sequencer records your performance in a similar
way to a tape recorder. This instrument's
SEQUENCER allows you to record up to 10
performances in a variety of ways. ©
© COMPOSER
The COMPOSER enables you to create your own
accompaniment patterns or to edit preset
accompaniment patterns. A pattern is comprised of (7)
five parts: DRUMS, BASS and three ACCOMP parts.
These parts would form the backing of a song, for
example: Drums, Accoustic Bass, Piano, Jazz Guitar
and Vibes. You may find it useful at first to copy and
edit a preset pattern.
© AUTO PLAY CHORD
Simply by playing a chord on the keyboard, the
AUTO PLAY CHORD function automatically plays an
accompaniment pattern which matches perfectly the
selected rhythm. With a real accompaniment as a
background, you can concentrate on playing the
melody.
© DISPLAY
Displays performance information, function settings
and other messages.
sent a ree ee INST ERASE.
RHYTHM
085-068 BIG BAND
069-080 SWING & JAZZ
081-084 SHOW TIME
0685-092 COUNTRY
038-048 FUNK & FUSION 093-099 U.S. TRAD
co FUNK 049-058 DANCE POP 100-108 MARCH & WALTZ
059-064 TRAD DANCE 109~128 LATIN
PLAY | oe bras
ONOFF Demo } i =
MAIN F "COMPOSER an ARRANGER
VOLUME | ReEcoad cHoRDMAP ! SET ONOFF
j 2 Oo. | ° {e)
MAX ot 1
iit ji LOLI @
fetgiciepyeny ye 2 DRUMS ACCOMP3 ACCOMP2 ACCOMP I
[== SeonENCE—— i moo sur = fovevoucn | fA EE ee es
EASYREC MEM PLAY + SOUNDEDIT | PONT PAY j
—-—-
| MUSIC STYLE FILL IN WTRO & ENDING
1 2
VARIATION & MSA
ARRANGER 1 2 3 4 1 2
O° ° fe)
eS es
© TRANSPOSE 9
The TRANSPOSE buttons are used to changed the
key of the entire instrument in semitone steps across
an entire octave.
BASS. LEFT RGHT2 RIGHT 1
SOUND
601-017 PIANO 075-083 ORGAN
018-028 MALLET
029-043 GUITAR, 088~102 BRASS
044-056 SPECIALPERC 103-118 REED
057-070 STRINGS 119-129 FLUTE
073~074 VOCAL 130-145 BASS
| soup
apt
COMPOSER |
SYNCHRO & 01 02 03 O4 BEAT TECHN | l
BEN START/STOP | Horo
2 |
MANUAL SEQUENCE PADS
Add various phrases to your performance with the
pad buttons.
@ SOUND EDIT
Number pad
Use the number pad to select sounds and rhythms by
their numbers.
Effects
Add various effects to the sounds. DIGITAL EFFECT
gives the sound richness and enhances your
performance. DSP EFFECT adds unique quality to
the sound. SUSTAIN is the gradual fading out of
musical tones after the key is released. DIGITAL
REVERB applies a reverberation effect to the sound.
© PITCH BEND/MODULATION
The pitch of the instrument can be continuously
changed with the PITCH BEND wheel at left end of
the keyboard. Using this control, you can produce the
effect of bending the strings on a guitar.
SOUND EDIT enables you to create your own new
sound by altering one of this instrument's preset
sounds. Your new sound can be stored in one of the
sound memory locations.
@ ONE TOUCH PLAY
ONE TOUCH PLAY sets up the your instrument with
a suitable registration for your chosen rhythm style so
that you can make a great sound straight away, even
if you are playing this instrument for the first time.
Using ONE TOUCH PLAY sets a_ suggested
combination of sounds and balances and an
appropriate tempo for the rhythm style at the push of
a button.
@® TECHNI-CHORD
TECHNI-CHORD turns your single-note melodies into
full chords and offers you a choice of 13 different
types, from a simple duet which adds one harmony
note to your melody note, to big band reeds which
adds four harmony notes to your melody note.
146-156 SYNTH LEAD
157~171 SYNTH PAD
172-183 PERC & EFFECT
169-200 KEYBOARD PERC "
201-240 SOUND MEMORY I
084~087 ACCORDION
j
raat
re
ee
cry »
orc
OD so MO oh ot ie a i St a ee =
PANEL MEMORY
[
oe
Coc}
SOUND NEMORY &
SETING ma on ROL
CIT le
DIGITAL DSP DIGITAL
i SUSTAIN EFFECT EFFECT REVERB |
© ~~ conpuctor——— |
° fo) Oo |
«LEFT RiGHT 2 RIGHT 1
@® PANEL MEMORY
PANEL MEMORY stores the panel set up of this
instrument allowing you to make complex changes at
the push of a single button.
@ CONDUCTOR
The CONDUCTOR buttons are used to assign
sounds to the keyboard in many different ways. For
example, you can assign two sounds to the entire
keyboard so that playing one key will produce two
sounds. You can even split the keyboard into right
and left sections (SPLIT), and assign a different
sound to each section.
@® DISK DRIVE
This Disk Drive allows you to store SEQUENCER
performance and other data on 3.5-in. 2DD/2HD
memory disk.
