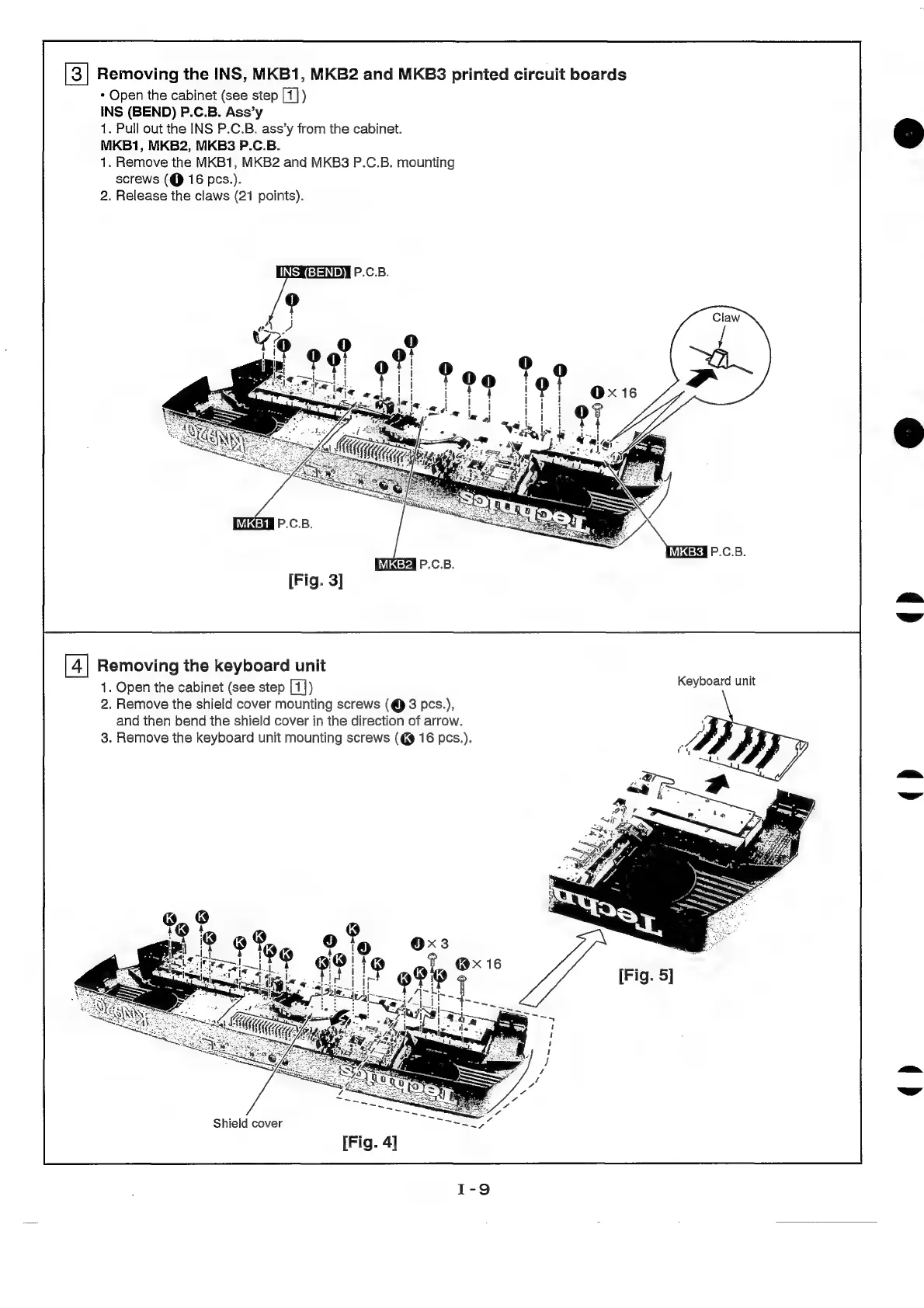

Removing the INS, MKB1, MKB2 and MKBS3 printed circuit boards
* Open the cabinet (see step [7])
INS (BEND) P.C.B. Ass’y
1. Pull out the INS P.C.B. ass’y from the cabinet.
MKB1, MKB2, MKB3 P.C.B.
1. Remove the MKB1, MKB2 and MKB3 P.C.B. mounting
screws (@ 16 pcs.).
2. Release the claws (21 points).
Removing the keyboard unit
1. Open the cabinet (see step [1])
2. Remove the shield cover mounting screws (@ 3 pcs.),
and then bend the shield cover in the direction of arrow.
3. Remove the keyboard unit mounting screws ( 16 pcs.).
Keyboard unit
Shield cover
