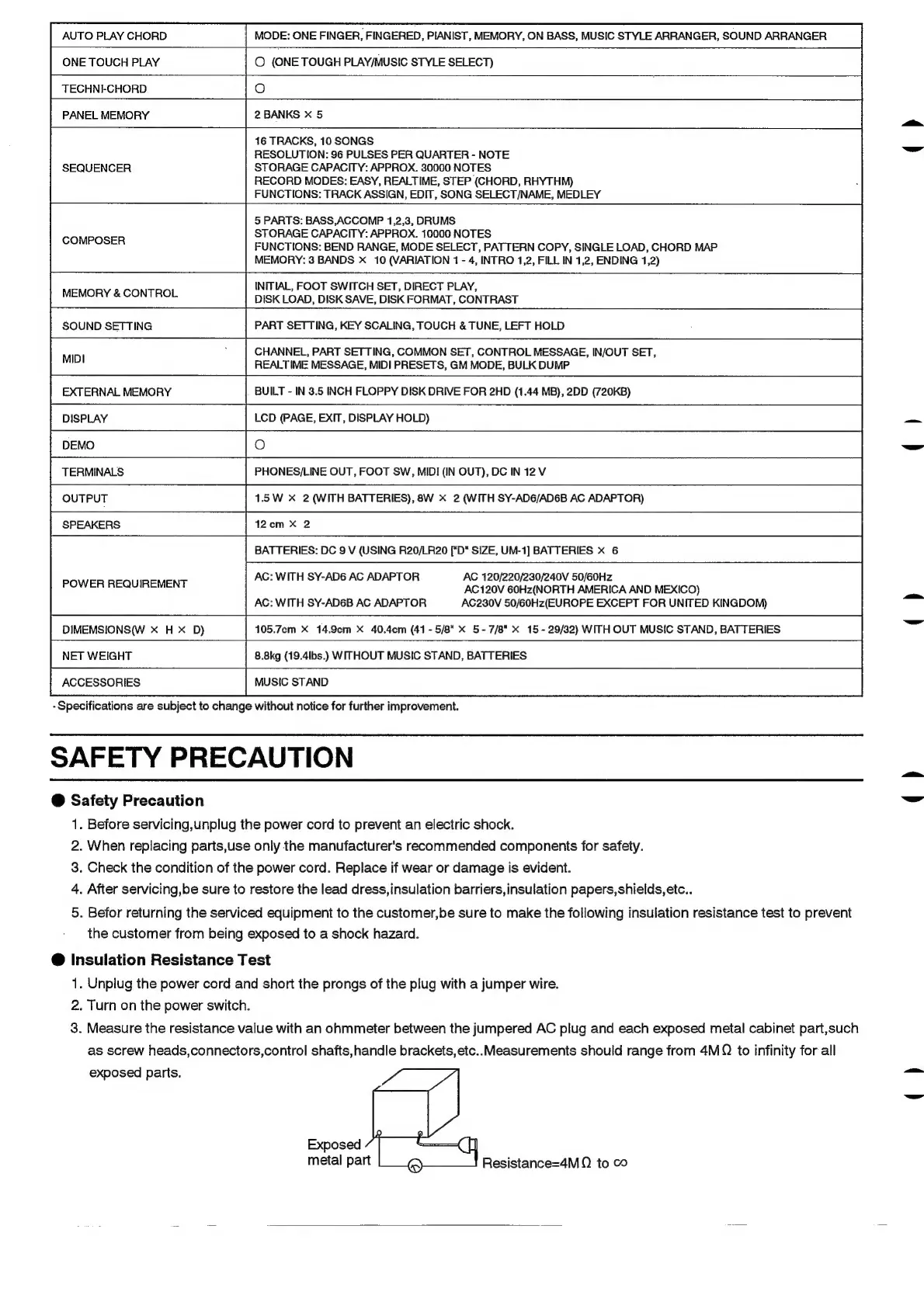

Technics SX-KN930 Service Manual

AUTO PLAY CHORD | MODE: ONE FINGER, FINGERED, PIANIST, MEMORY, ON BASS, MUSIC STYLE ARRANGER, SOUND ARRANGER
ONE TOUCH PLAY | © (ONE TOUGH PLAY/MUSIC STYLE SELECT)
TECHNI-CHORD
PANEL MEMORY 2 BANKS x 5
16 TRACKS, 10 SONGS
RESOLUTION: 96 PULSES PER QUARTER - NOTE
SEQUENCER STORAGE CAPACITY: APPROX. 30000 NOTES
RECORD MODES: EASY, REALTIME, STEP (CHORD, RHYTHM)
FUNCTIONS: TRACK ASSIGN, EDIT, SONG SELECT/NAME, MEDLEY
5 PARTS: BASS,ACCOMP 1,2,3, DRUMS
COMPOSER STORAGE CAPACITY: APPROX. 10000 NOTES
FUNCTIONS: BEND RANGE, MODE SELECT, PATTERN COPY, SINGLE LOAD, CHORD MAP
MEMORY: 3 BANDS X 10 (VARIATION 1 - 4, INTRO 1,2, FILL IN 1,2, ENDING 1,2)
INITIAL, FOOT SWITCH SET, DIRECT PLAY,
MEMORY & CONTROL DISK LOAD, DISK SAVE, DISK FORMAT, CONTRAST
SOUND SETTING PART SETTING, KEY SCALING, TOUCH & TUNE, LEFT HOLD
CHANNEL, PART SETTING, COMMON SET, CONTROL MESSAGE, IN/OUT SET,
REALTIME MESSAGE, MIDI PRESETS, GM MODE, BULK DUMP
EXTERNAL MEMORY BUILT - IN 3.5 INCH FLOPPY DISK DRIVE FOR 2HD (1.44 MB), 2DD (720KB)
DISPLAY LCD (PAGE, EXIT, DISPLAY HOLD)
oO
TERMINALS PHONES/LINE OUT, FOOT SW, MIDI (IN OUT), DC IN 12 V
OUTPUT 1.5W X 2 (WITH BATTERIES), 8W X 2 (WITH SY-ADG6G/AD6B AC ADAPTOR)
SPEAKERS 12cm X 2
BATTERIES: DC 9 V (USING R20/LR20 ["D* SIZE, UM-1] BATTERIES x 6
AC: WITH SY-AD6 AC ADAPTOR AC 120/220/230/240V 50/60Hz
AC120V 60Hz(NORTH AMERICA AND MEXICO)
AC: WITH SY-AD6B AC ADAPTOR AG230V 50/60Hz(EUROPE EXCEPT FOR UNITED KINGDOM)
DIMEMSIONS(W x H X D) | 4105.7em x 14.9cm X 40.4cm (41 - 5/8" x 5-7/8" X 15 - 29/32) WITH OUT MUSIC STAND, BATTERIES
NET WEIGHT 8.8kg (19.4lbs.) WITHOUT MUSIC STAND, BATTERIES
ACCESSORIES MUSIC STAND
- Specifications are subject to change without notice for further improvement.
POWER REQUIREMENT
SAFETY PRECAUTION
@ Safety Precaution
1. Before servicing,unplug the power cord to prevent an electric shock.
2. When replacing parts,use only the manufacturer's recommended components for safety.
3. Check the condition of the power cord. Replace if wear or damage is evident.
4. After servicing,be sure to restore the lead dress,insulation barriers,insulation papers,shields, etc..
5. Befor returning the serviced equipment to the customer,be sure to make the following insulation resistance test to prevent
the customer from being exposed to a shock hazard.
@ Insulation Resistance Test
1. Unpiug the power cord and short the prongs of the plug with a jumper wire.
2. Turn on the power switch.
3. Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metal cabinet part,such
as screw heads,connectors,control shafts, handle brackets, etc.. Measurements should range from 4MQ to infinity for all
exposed parts.
Exposed
metal part Resistance=4MQ. to co
(>
()
()
(
