Technics SX-PC15 User Manual

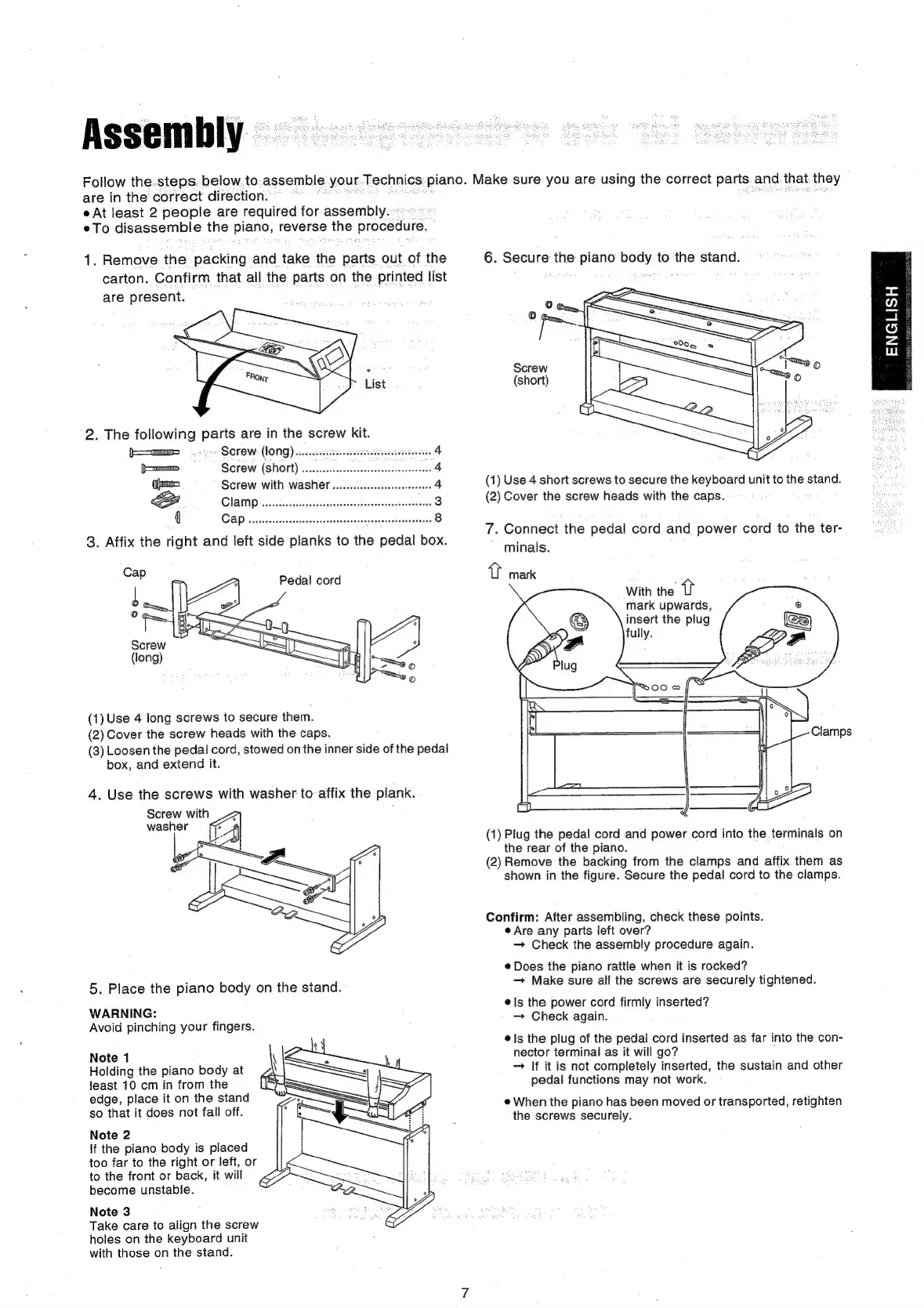

Assembly
Follow
the.steps.
below.to
assemble
your
Technics
piano.
Make
sure
you
are
using
the
correct
parts.
and.
that
they
,
are in the correct direction.
eAt least 2 people are required for assembly.
To disassemble the piano, reverse the procedure.
1. Remove the packing and take the parts out of the
carton. Confirm that all the parts on the printed list
are present.
2. The following parts are in the screw kit.
eT ov Screw: (ONG)... sees welvubiievs eects 4
(=m Screw (SHOFt) oc ssceccssesseesssessesessseesseeens 4
(feu Screw with WaSNEL .....scssessesseceesseees 4
B CAMP cssesieccescipi cand astesctiscceuengancareats 3
q CAD es ceciih ies cthccd cctsatgsansdi greener 8
Screw
(long)
(1) Use 4 long screws to secure them.
(2) Cover the screw heads with the caps.
(3) Loosen the pedal cord, stowed on the inner side of the pedal
box, and extend it.
4. Use the screws with washer to: affix the plank.
Screw with 7
washer is.
5. Place the piano body on the stand.
WARNING:
Avoid pinching your fingers.
Note 1
Holding the piano body at
least 10 cm in from the
edge, place it on the stand
so that it does not fall off.
Note 2
If the piano body is placed
too far to the right or left, or
to the front or back, it will
become unstable.
Note 3
Take care to align the screw
holes on the keyboard unit
with those on the stand.
6. Secure the piano body to the stand.
(1) Use 4 short screws to secure the keyboard unit to the stand.
(2) Cover the screw heads with the caps.
7. Connect the pedal cord and power cord to the ter-
minals.
tT mark
With the {f
mark upwards,
insert the plug
fully.
«
(1) Plug the pedal cord and power cord into the. terminals on
the rear of the piano.
(2) Remove the backing from the clamps and affix them as
shown in the figure. Secure the pedal cord to the clamps.
Confirm: After assembling, check these points.
@ Are any parts left over?
~ Check the assembly procedure again.
Does the piano rattle when it is rocked?
— Make sure all the screws are securely tightened.
els the power cord firmly inserted?
— Check again.
eis the plug of the pedal cord inserted as far into the con-
nector terminal as it will go?
- If it is not completely inserted, the sustain and other
pedal functions may not work.
@ When the piano has been moved or transported, retighten
the screws securely.
