Technics SX-PR100 Service Manual

_ atmo meme Et one ce

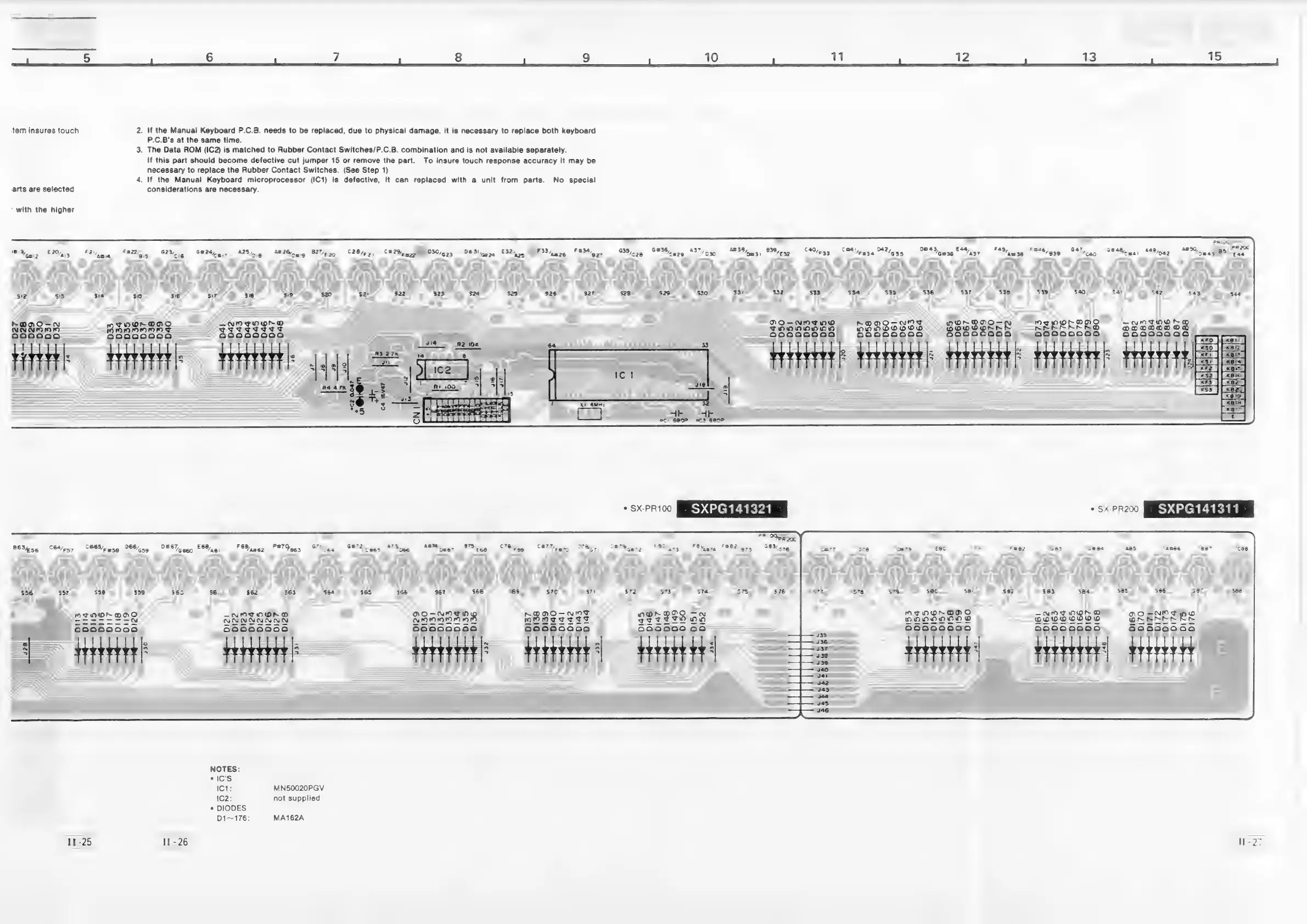

item insures touch 2. If the Manual Keyboard P.C.B. needs to be replaced, due to physical damage, it is necessary to replace both keyboard
P.C.B’s at the same time.
3. The Data ROM (IC2) is matched to Rubber Contact Switches/P.C.B. combination and is not available separately.
lf this part should become defective cut jumper 15 or remove the part. To insure touch response accuracy it may be
necessary to replace the Rubber Contact Switches. (See Step 1)
4. If the Manual Keyboard microprocessor (IC1) is defective, it can replaced with a unit from parts. No special
arts are selected considerations are necessary.
* with the higher
* SX-PR100 SXP
= F FAT
88355 CSA/p5r BS e ase P59 OB EYc neo “8%ng, Sanz aes
ooo
NOTES:
°1C’S
IC1: MN50020PGV
IC2: not supplied
e DIODES
Di~176: MA162A
