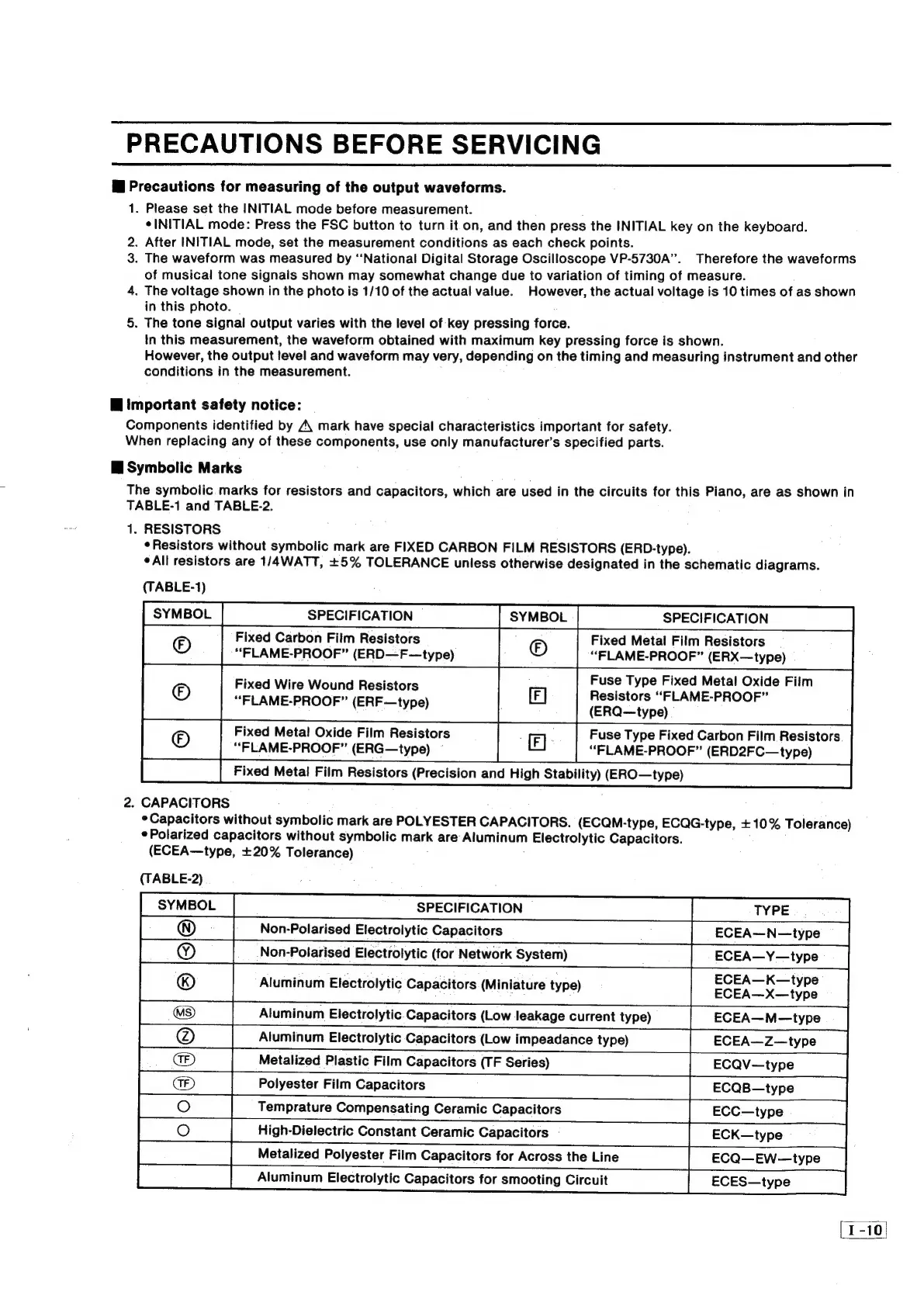

PRECAUTIONS
BEFORE
SERVICING
@
Precautions
for
measuring
of
the
output
waveforms.
1.
Please
set
the
INITIAL
mode
before
measurement.
e
INITIAL
mode:
Press
the
FSC
button
to
turn
it
on,
and
then
press
the
INITIAL
key
on
the
keyboard.
2.
After
INITIAL
mode,
set
the
measurement
conditions
as
each
check
points.
3.
The
waveform
was
measured
by
‘National
Digital
Storage
Oscilloscope
VP-5730A”.
Therefore
the
waveforms
of
musical
tone
signals
shown
may
somewhat
change
due
to
variation
of
timing
of
measure.
4.
The
voltage
shown
in
the
is
1/10
of
the
actual
value.
However,
the
actual
voltage
is
10
times
of
as
shown
in
this
photo.
5.
The
tone
signal
output
varies
with
the
level
of
key
pressing
force.
In
this
measurement,
the
waveform
obtained
with
maximum
key
pressing
force
is
shown.
However,
the
output
level
and
waveform
may
very,
depending
on
the
timing
and
measuring
instrument
and
other
conditions
in
the
measurement.
important
safety
notice:
Components
identified
by
/\
mark
have
special
characteristics
important
for
safety.
When
replacing
any
of
these
components,
use
only
manufacturer’s
specified
parts.
@
Symbolic
Marks
The
symbolic
marks
for
resistors
and
capacitors,
which
are
used
in
the
circuits
for
this
Piano,
are
as
shown
in
TABLE-1
and
TABLE-2.
1.
RESISTORS
¢Resistors
without
symbolic
mark
are
FIXED
CARBON
FILM
RESISTORS
(ERD-type).
All
resistors
are
1/4WATT,
+5%
TOLERANCE
unless
otherwise
designated
in
the
schematic
diagrams.
(TABLE-1)
SYMBOL
SPECIFICATION
SYMBOL
SPECIFICATION
®
Fixed
Carbon
Film
Resistors
®
Fixed
Metal
Film
Resistors
|
“FLAME-PROOF”
(ERD—F—type)
“FLAME-PROOF”
(ERX—type)
Fixed
Wire
Wound
Resistors
Fuse
Type
Fixed
Metal
Oxide
Film
“FLAME-PROOF”
(ERF—type)
Resistors
“FLAME-PROOF”
Fixed
Metal
Oxide
Film
Resistors
Fuse
Type
Fixed
Carbon
Film
Resistors
“FLAME-PROOF”
(ERG—type)
“FLAME-PROOF”
(ERD2FC—type)
(ERQ—type)
aa
Fixed
Metal
Film
Resistors
(Precision
and
High
Stability)
(ERO—type)
@
)
2.
CAPACITORS
¢
Capacitors
without
symbolic
mark
are
POLYESTER
CAPACITORS.
(ECQM-type,
ECQG-type,
+
10%
Tolerance)
©
Polarized
capacitors
without
symbolic
mark
are
Aluminum
Electrolytic
Capacitors.
(ECEA—type,
+20%
Tolerance)
(TABLE-2)
SYMBOL
SPECIFICATION
TYPE
|
@
-
|
Non-Polarised
Electrolytic
Capacitors
ECEA—N—type
2
Oo
Non-Polarised
Electrolytic
(for
Network
System)
ECEA—Y—type
|
®
|
Aluminum
Electrolytic
Capacitors
(Miniature
type)
ah
opal
ae
te
S)
Aluminum
Electrolytic
Capacitors
(Low
leakage
current
type)
ECEA—M—type
|
oO
|
Temprature
Compensating
Ceramic
Capacitors
ECC—type
>.
1
High-Dielectric
Constant
Ceramic
Capacitors
ECK—type
aaa
Metalized
Polyester
Film
Capacitors
for
Across
the
Line
ECQ—EW—type
are
Aluminum
Electrolytic
Capacitors
for
smooting
Circuit
ECES—type
