Figure-9 .

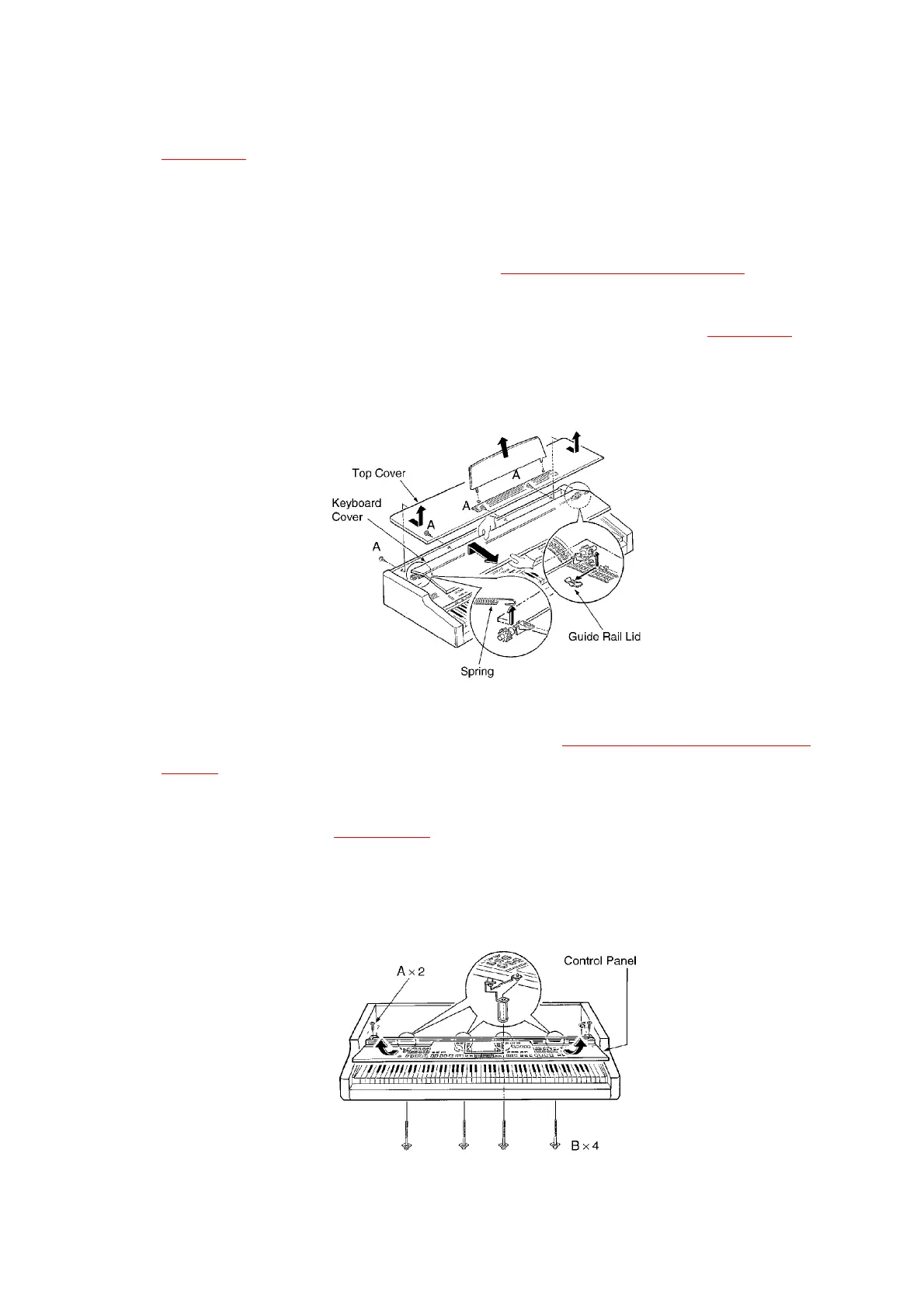

2. Slide the top cover forward and lift up (as shown by the arrows).
7.2. Removing the keyboard cover
1. Remove the top cover (see step “Removing the top cover ”).
2. Match the gears of the keyboard cover with the notches in the
guide rail, and lift up the keyboard cover as shown in Figure-9 .
Figure-9
7.3. Removing the control panel
1. Remove the keyboard cover (see step “Removing the keyboard
cover ”).
2. Remove the control panel mounting screws (A x 2 pcs. and B x 4
pc.) as shown in Figure-10 .
3. Slide the control panel forward and pull out (as shown by the
arrows).
Figure-10
9
