Technics SX-PR700 User Manual

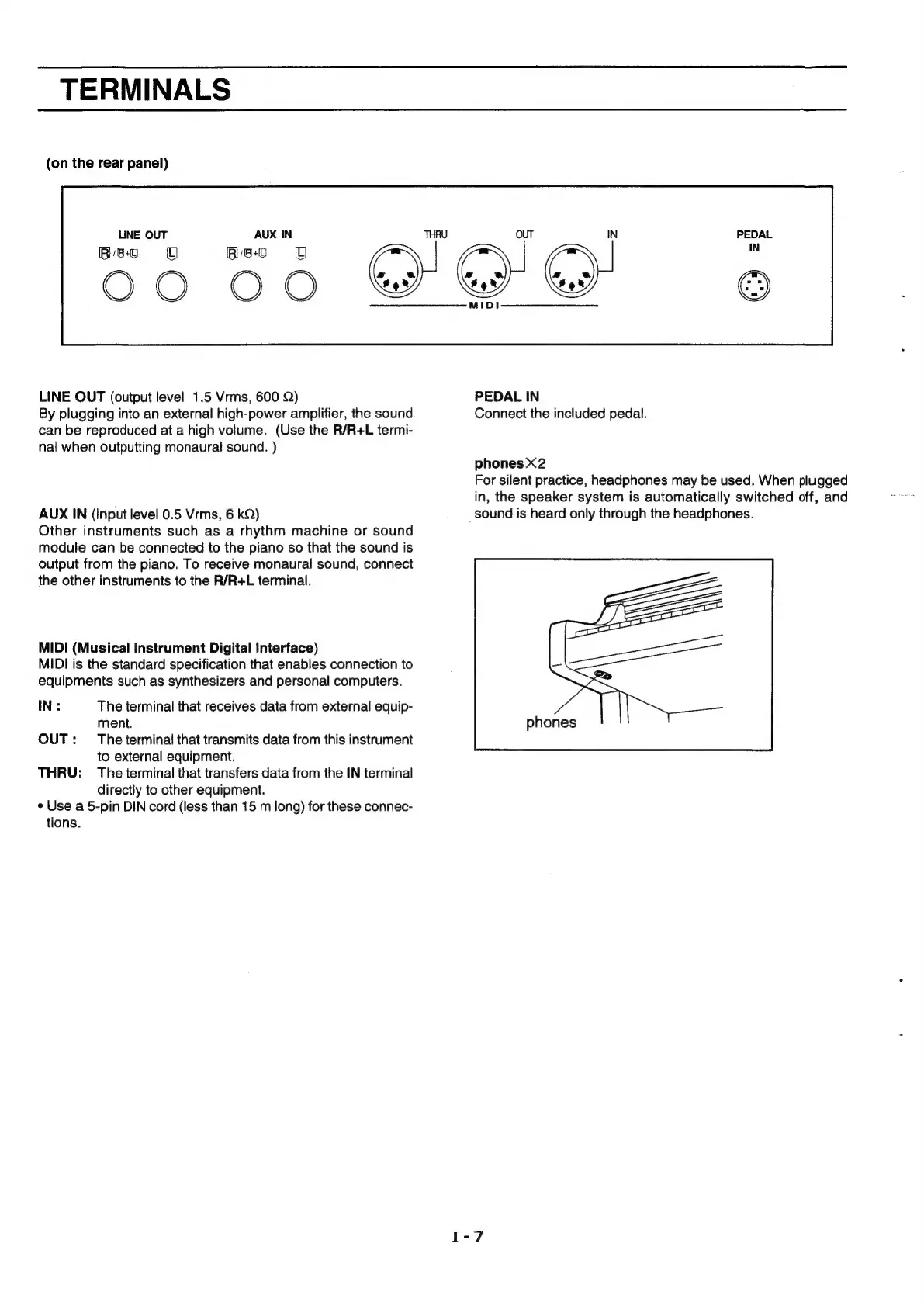

TERMINALS
(on the rear panel)
LINE OUT AUX IN
eo OO eo 0
OO OO
LINE OUT (output level 1.5 Vrms, 600 Q)
By plugging into an external high-power amplifier, the sound
can be reproduced at a high volume. (Use the R/R+L termi-
nal when outputting monaural sound. )
AUX IN (input level 0.5 Vrms, 6 kQ)
Other instruments such as a rhythm machine or sound
module can be connected to the piano so that the sound is
output from the piano. To receive monaural sound, connect
the other instruments to the R/R+L terminal.
MIDI (Musical Instrument Digital Interface)
MIDI is the standard specification that enables connection to
equipments such as synthesizers and personal computers.
IN: The terminal that receives data from external equip-
ment.
OUT: The terminal that transmits data from this instrument
to external equipment.
THRU: The terminal that transfers data from the IN terminal
directly to other equipment.
¢ Use a 5-pin DIN cord (less than 15 m long) for these connec-
tions.
oe
e'o!
PEDAL
MIDI
PEDAL IN
Connect the included pedal.
phones X2
For silent practice, headphones may be used. When plugged
in, the speaker system is automatically switched off, and
sound is heard only through the headphones.
—_
phones
