Technics SX-PX222/M

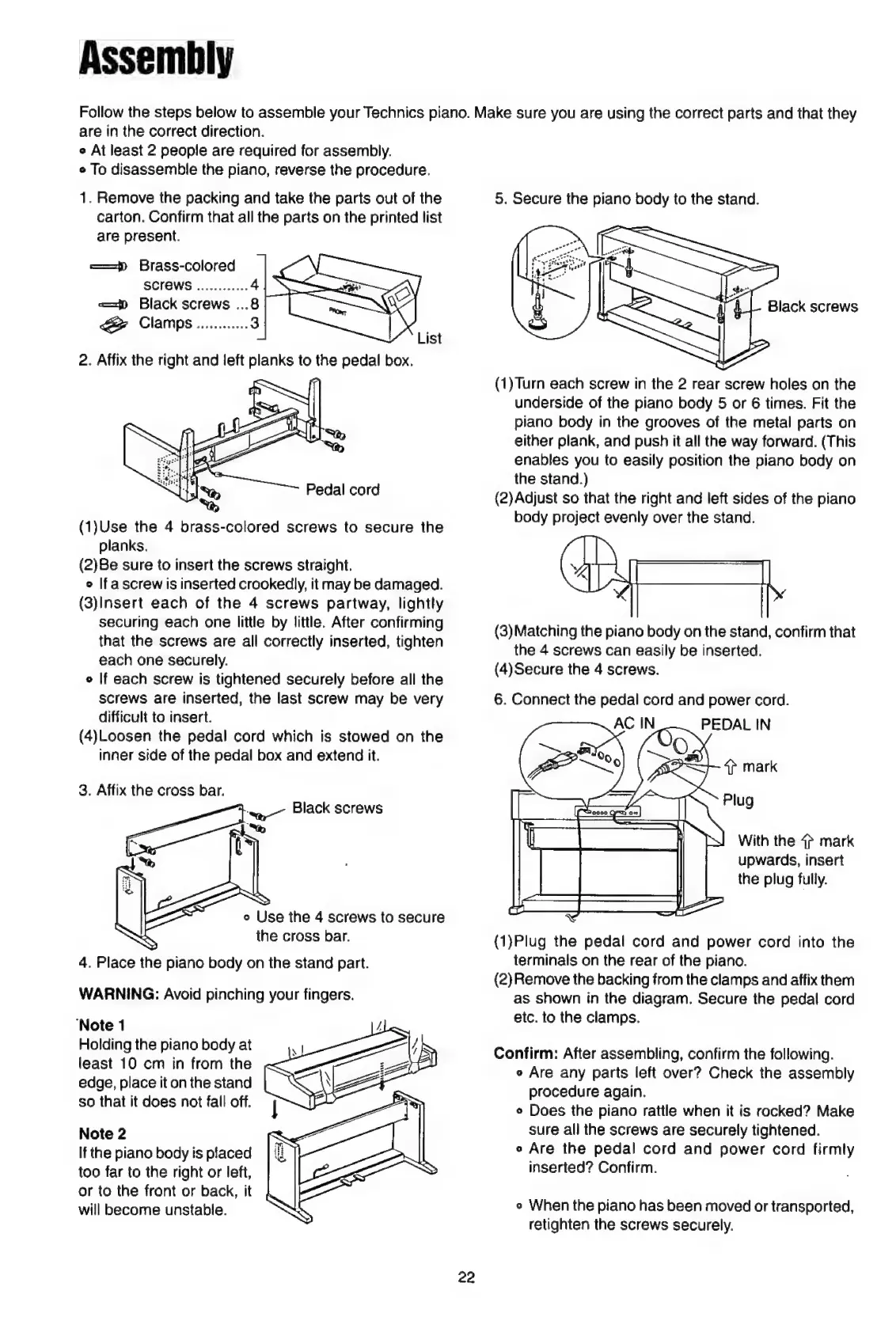

Assembly
Follow the steps below to assemble your Technics piano. Make sure you are using the correct parts and that they
are in the correct direction.
o At least 2 people are required for assembly.
° To disassemble the piano, reverse the procedure.
1. Remove the packing and take the parts out of the
carton. Confirm that all the parts on the printed list
are present.
== Brass-colored
SCIOWS ............ 4 sy
== Black screws ...8 SNe
< Clamps ............ 3 p
List
2. Affix the right and left planks to the pedal box.
Pedal cord
(1)Use the 4 brass-colored screws to secure the
planks.
(2)Be sure to insert the screws straight.
e If a screw is inserted crookedly, it may be damaged.
(3)Insert each of the 4 screws partway, lightly
securing each one little by little. After confirming
that the screws are all correctly inserted, tighten
each one securely.
o If each screw is tightened securely before all the
screws are inserted, the last screw may be very
difficult to insert.
(4)Loosen the pedal cord which is stowed on the
inner side of the pedal box and extend it.
3. Affix the cross bar.
be Black screws
b
<
“Ne
TS
| сш ° Use the 4 screws to secure
S
the cross bar.
4. Place the piano body on the stand part.
WARNING: Avoid pinching your fingers.
Note 1
Holding the piano body at
least 10 cm in from the
edge, place it on the stand
so that it does not fall off.
Note 2
If the piano body is placed
too far to the right or left,
or to the front or back, it
will become unstable.
22
5. Secure the piano body to the stand.
(1) Turn each screw in the 2 rear screw holes on the
underside of the piano body 5 or 6 times. Fit the
piano body in the grooves of the metal parts on
either plank, and push it all the way forward. (This
enables you to easily position the piano body on
the stand.)
(2) Adjust so that the right and left sides of the piano
body project evenly over the stand.
(3)Matching the piano body on the stand, confirm that
the 4 screws can easily be inserted.
(4)Secure the 4 screws.
6. Connect the pedal cord and power cord.
AC IN
PEDAL IN
With the 4р mark
upwards, insert
the plug fully.
(1)Plug the pedal cord and power cord into the
terminals on the rear of the piano.
(2) Remove the backing from the clamps and affix them
as shown in the diagram. Secure the pedal cord
etc. to the clamps.
Confirm: After assembling, confirm the following.
о Are any parts left over? Check the assembly
procedure again.
° Does the piano rattle when it is rocked? Make
sure all the screws are securely tightened.
e Are the pedal cord and power cord firmly
inserted? Confirm.
о When the piano has been moved or transported,
retighten the screws securely.
