Technify Motors Cessna 172 User Manual

Supplement Airplane Maintenance Manual
Cessna 172 with TAE 125-02-99 / -114
AMM-20-02
Chapter:
Issue:
Issue Date:
Page:
Content:
20-AMM-71-02
3
06.11.2013
38
46
Rev. No:
Rev. Date:
1
25.08.2014

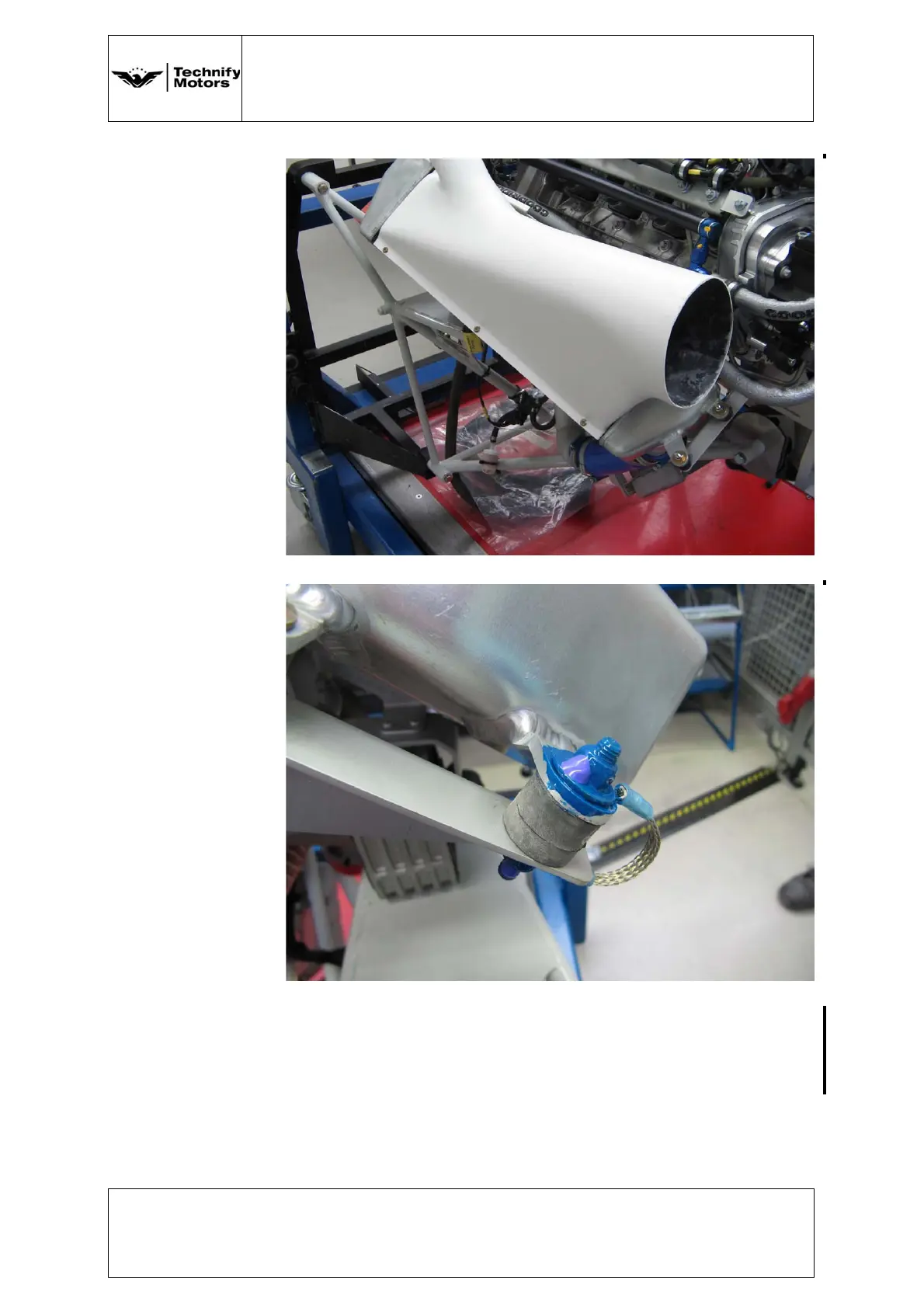

Figure 71.18
Figure 71.19
(3) Attach the hose and the heat protection plate
from the turbocharger to the intercooler.
(4) Attach the hose from the intake manifold to the
intercooler.
