CONNECTIONS
A
B
C
D
E
F
H
G
I
J
K

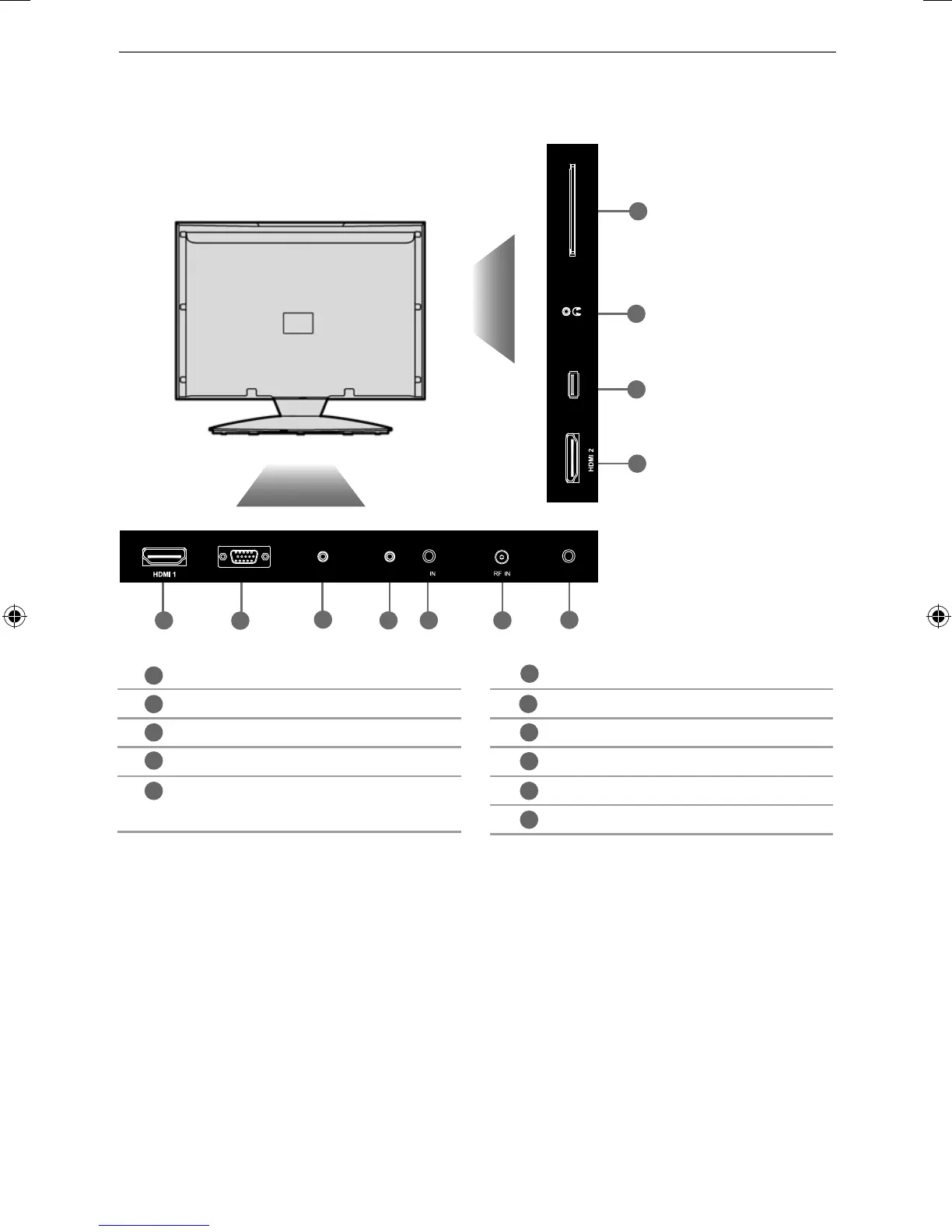

Connections
HDMI 1 HDMI input
VGA PC VGA-PC input
VGA PC Audio In 3.5mm PC audio input
YPbPr/Component HD input (Ypbpr)
RF IN RF / TV Aerial Input
COAX Audio Out Digital Coax output
HDMI 2 HDMI input
USB USB port
Earphones Earphone Input
CI CARD IN Common Interface module
A
B
C
D
E
F
G
J
H
K
I
I
USB
CI CARD IN
EARPHONE
Y
Pb
Pr
V
V
GA A/P C (A u d io i n )
VGA/PC IN
COAX
AV IN Input for Composite/Video and
Audio for Composite / Video
and Component / Y Pb Pr
