Connections
CONNECTIONS
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc*)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options to connect a device via the 3.5mm Earphone Output.
*Connecting cables not included .
3.5mm
EARPHONE
3.5mm
EARPHONE
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for 3.5mm EARPHONE Output
COAXIAL
OUT
COAXIAL
IN
3.5mm
AUDIO
IN
L
R

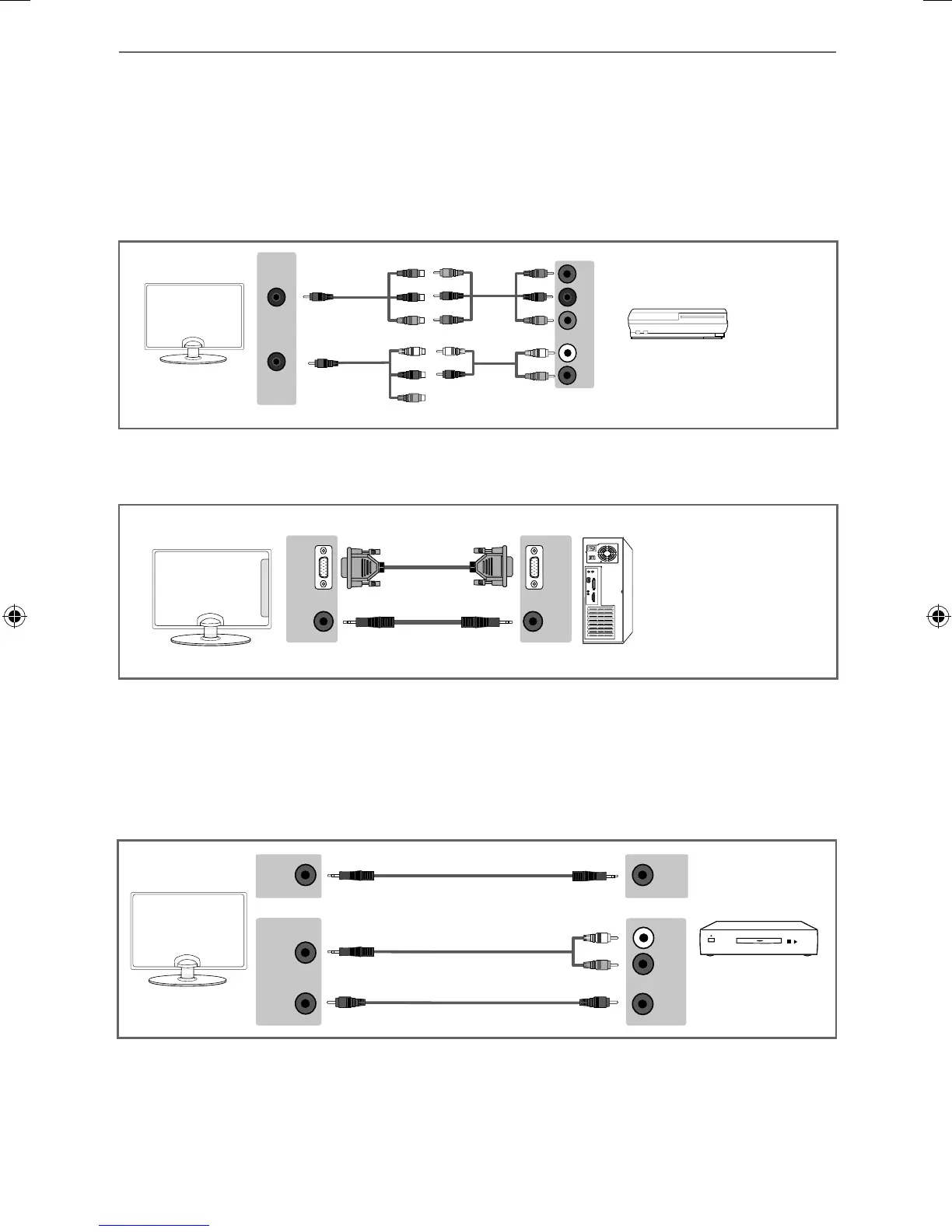

Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component/YPbPr
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV Source should be set to VGA/PC
VGA/PC
IN
VGA/PC
OUT
VGA/PC
(AUDIO
IN)
AUDIO
OUT
Mini
AV IN
Mini
YPbPr
Y
PB
PR
L
R
Video (yellow)
is not connected
