Technika T45MWG - Oven Positioning Guidelines

DATE SENT: 20140428
T45MWG / MG1035ES-IX01
60x45cm Microwave Oven
12.3 Positioning the Microwave Oven

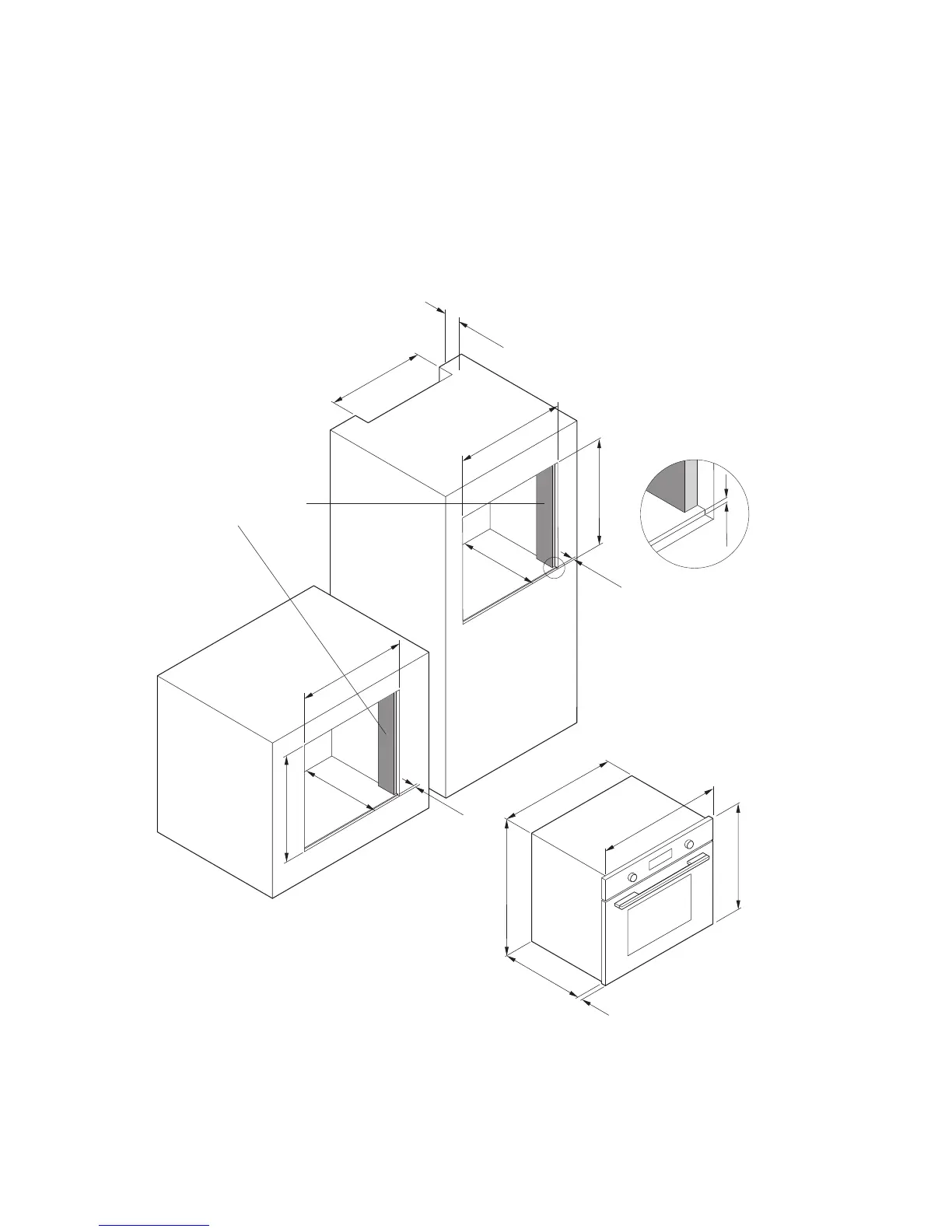

When installing the Microwave Oven into a cabinet, the cabinet should be insulated,
and the clearance between the edge of the cabinet and Microwave Oven should be
over 100mm for ventilation.
17
400*
542
594
455
465
21
100min*
* Ventilation: provide cut out at
rear for wall oven installation only
100mm x 400mm
Flush Fit
We recommended that our
600mm microwa
ve ovens be
installed as flush fit only
550 min
21
A
550 min
21
A
596
456
456
596
A: Fixing Cleet (Both sides)
452mm(H) x 100mm(W) x 22mm(D)
444
5 min
