Installation

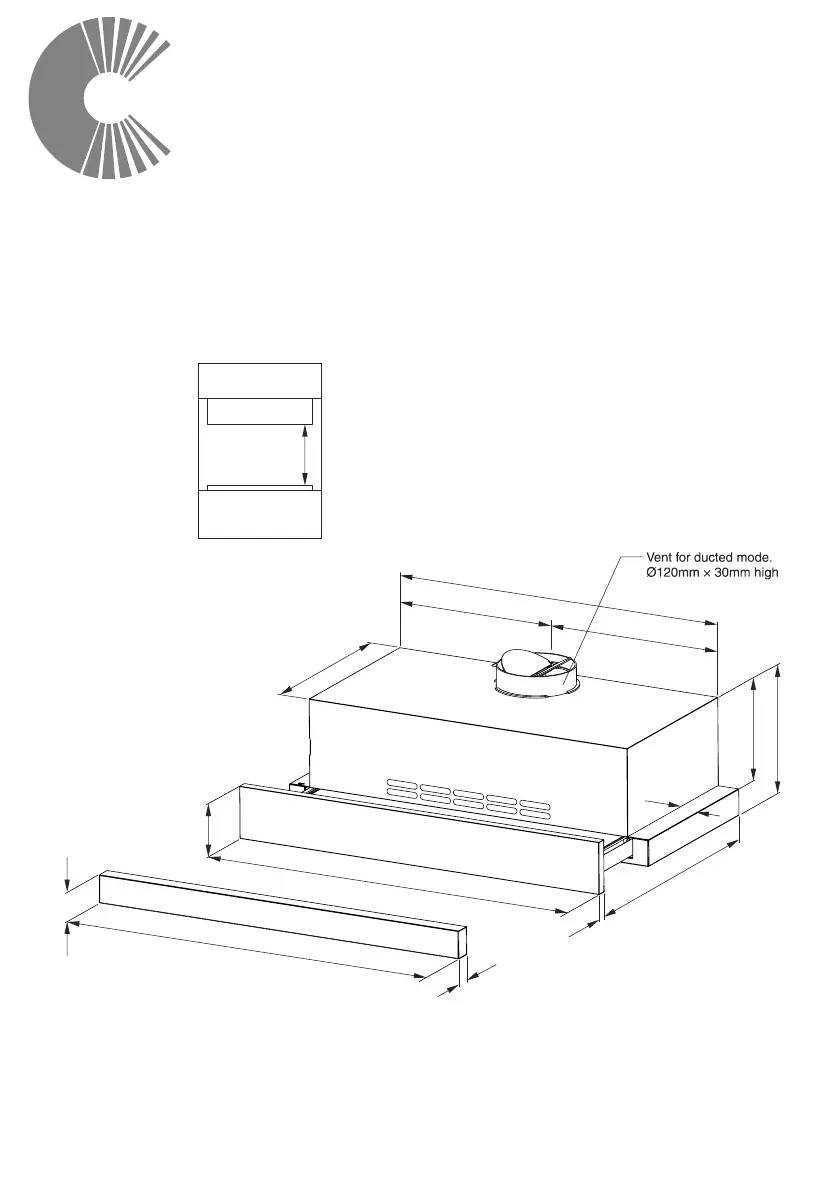

Dimensions
13
650-750
Rangehood
Cooking Surface
Recommended
Clearances
Install Range Hoods in accordance with the manufacturer’s
instructions. Technika recommends that all Range Hood
clearances be a minimum of 650mm to a maximum of 750mm
(between the top of the cooking surface and to the underside of
the rangehood).Distance may be reduced to 600mm to align
with AS/NZS 5601.
NOTE: The front rails are fitted with 4 screws behind the rail.
-42mm rail to be fitted for ducted mode.
-80mm rail to be fitted for recirculation mode.
415
34
Rail f
or ducted mode
Rail f
or recircluating mode
V
ents f
or recircluating mode
25
596
25
281
175
145
42
80
530
265
265
596
