Page 4

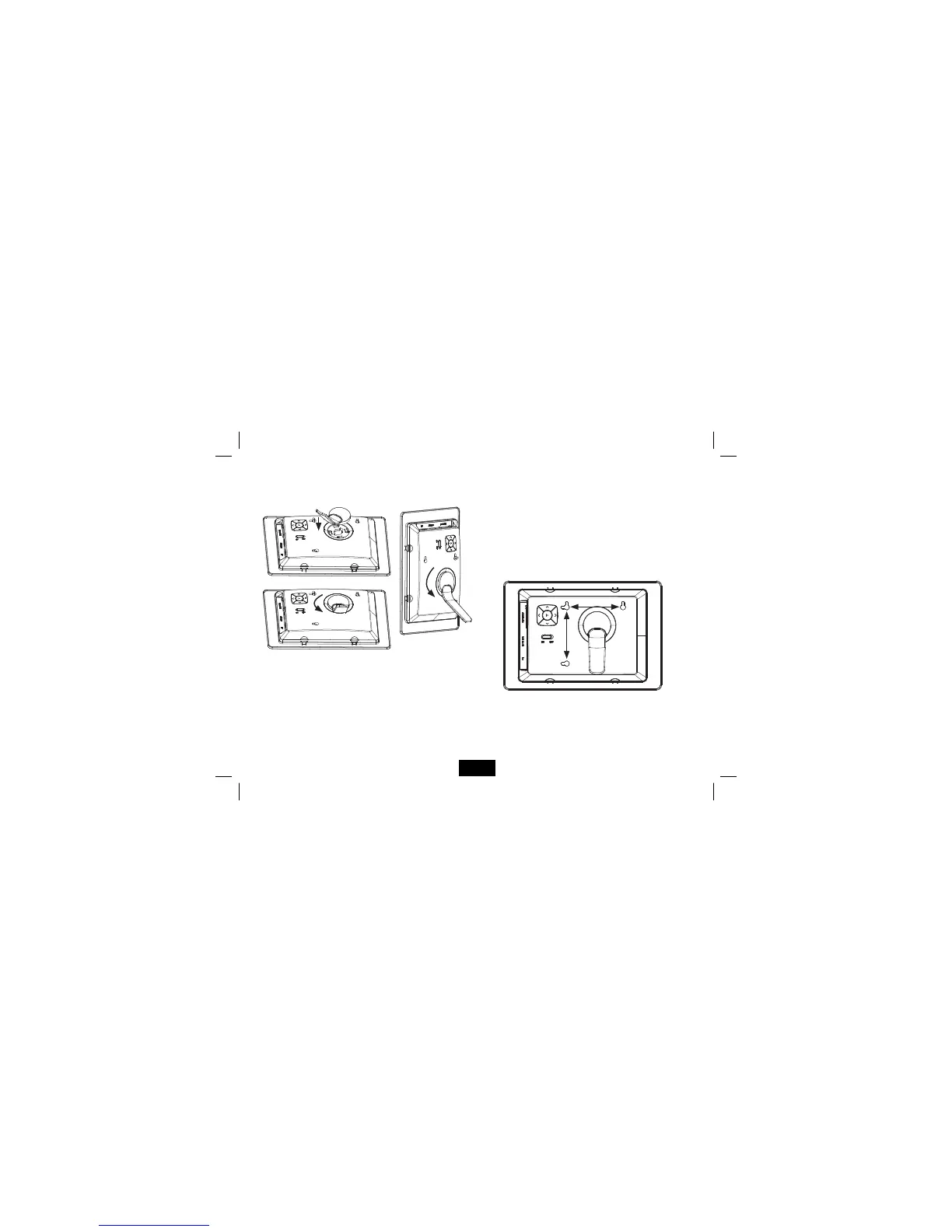

FITTING THE STAND Locate the stand in the slot at the rear.
Rotate the stand once to put the frame into horizontal (landscape) view.
Rotate once more to put the frame into vertical (portrait) view.
Stand the frame on a level solid surface where it is unlikely to fall or get
knocked over.
WALL MOUNTING
As an alternative the frame can be wall mounted via the slots in the rear
of the frame.
?
Use the two holes annotated q (78mm apart) to mount the DPF in the
horizontal (landscape) view.
Use the two holes annotated w (78mm apart) to mount the DPF in the
vertical (portrait) view.
q
w
