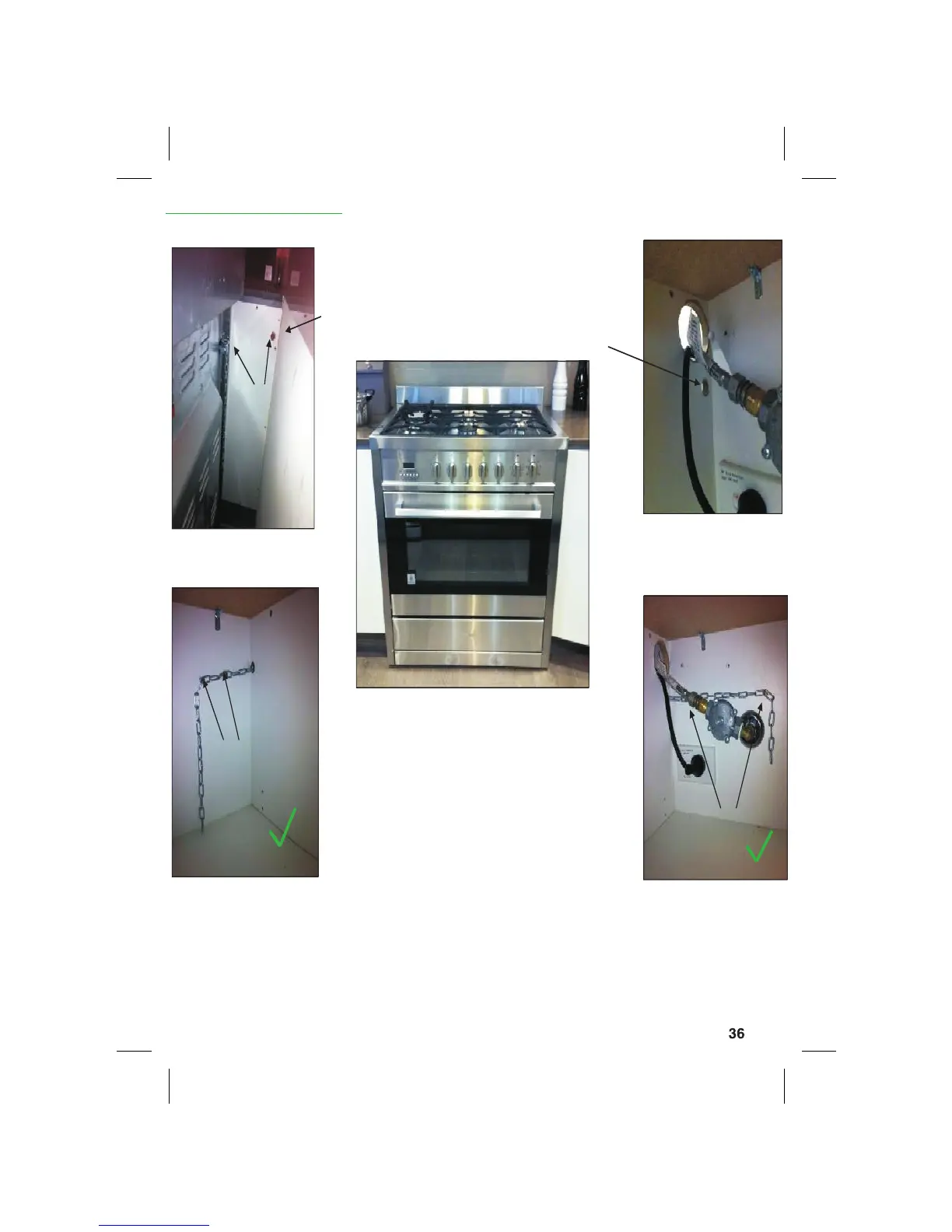

Correct Chain Installation
In order to prevent the oven from tipping forward as shown on the previous page, we need
to make sure both chains provided with the oven are used.
On the left side of the oven a 16mm drill bit was used to drill through the cabinetry into the
adjacent cabinet, as you can see the hole has not been drilled hard up against the wall
because there is a 16mm board at the rear of the cabinet. The height of the hole from the
floor is level with where the chain attaches to the oven.
The right side has been drilled much the same,, a new hole has been drilled below the gas
and power supply hole.
Hole and
Chain Level.
Once the holes have been drilled the chains can be fed through and the upright can be
fitted into position.
The chains then need to be pulled as tight as possible from inside the cabinet while at
the same time being fixed to the rear of the cabinet using a self drilling wood screw. It is
better to have the screw fixed closer to the hole for better support. The left and right
side examples shown have two extra screws attached to the chain which makes the
installation neater by keeping the chain off the shelf away from the gas and electricity
supply, they will also provide added support.
At this point the oven will be secured in location and will not move forward at all, It is
recommended that all upright oven chains be fitted in this way.
Installation forms part of the installers compliance and that in line with AGA
regulations chains are designed to be installed to prevent cooker from tilting.
They are not designed to replace parental supervision when the cooker is in use.
Chain fixed in two
locations.
Chain fixed in
two locations
Left Side
Right Side
