1 Product description
The amplifier BBV 2400-R are designed in splitband technology for amplifying SAT IF and terrestrial TV signals. Amplifiers
have one input and one output. TERR band and SAT IF band amplifiers have separate gain regulators with a fixed slope
pre-correction.
The amplifier have a passive return path and a DC+22 kHz signal pass through.
The amplifier is approved exclusively for indoor installation.
2 Safety instructions
• Installation of the amplifier must be done according IEC60728-11 and national safety standards.
• The amplifier is powered from mains 230 V~. This voltage is dangerous to life.
• Any repairs must be done by a qualified personnel.
• The amplifier is double isolated from the mains 230 V~.
• Do not remove the cover of the power supply section, without disconnecting the unit from the mains supply.
• Do not plug the amplifier into the mains supply if the power cord or plug is damaged.
• Do not plug the amplifier into the mains supply until all cables have been connected correctly.
• To disconnect the amplifier completely from the mains, disconnect plug from the mains socket.
• The mains socket must be easily accessible.
• The amplifier shall not be exposed to dripping or splashing water and no objects filled with liquids, such as vases, shall
be placed on it.
• Avoid placing amplifier next to central heating components, near highly combustible materials and in areas of high
humidity.
• No naked flame sources, such as lighted candles, should be placed on amplifier.
• If the amplifier has been kept in cold conditions for a long time, keep it in a warm room no less than 2 hours before
plugging into the mains.
• Do not insert any objects into ventilation openings.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tab-
le-cloths, curtains.
• Mount the amplifier in vertical position with RF input connectors underneath.
• From top, front and boom of installed amplifier must be at least 10 cm free space.

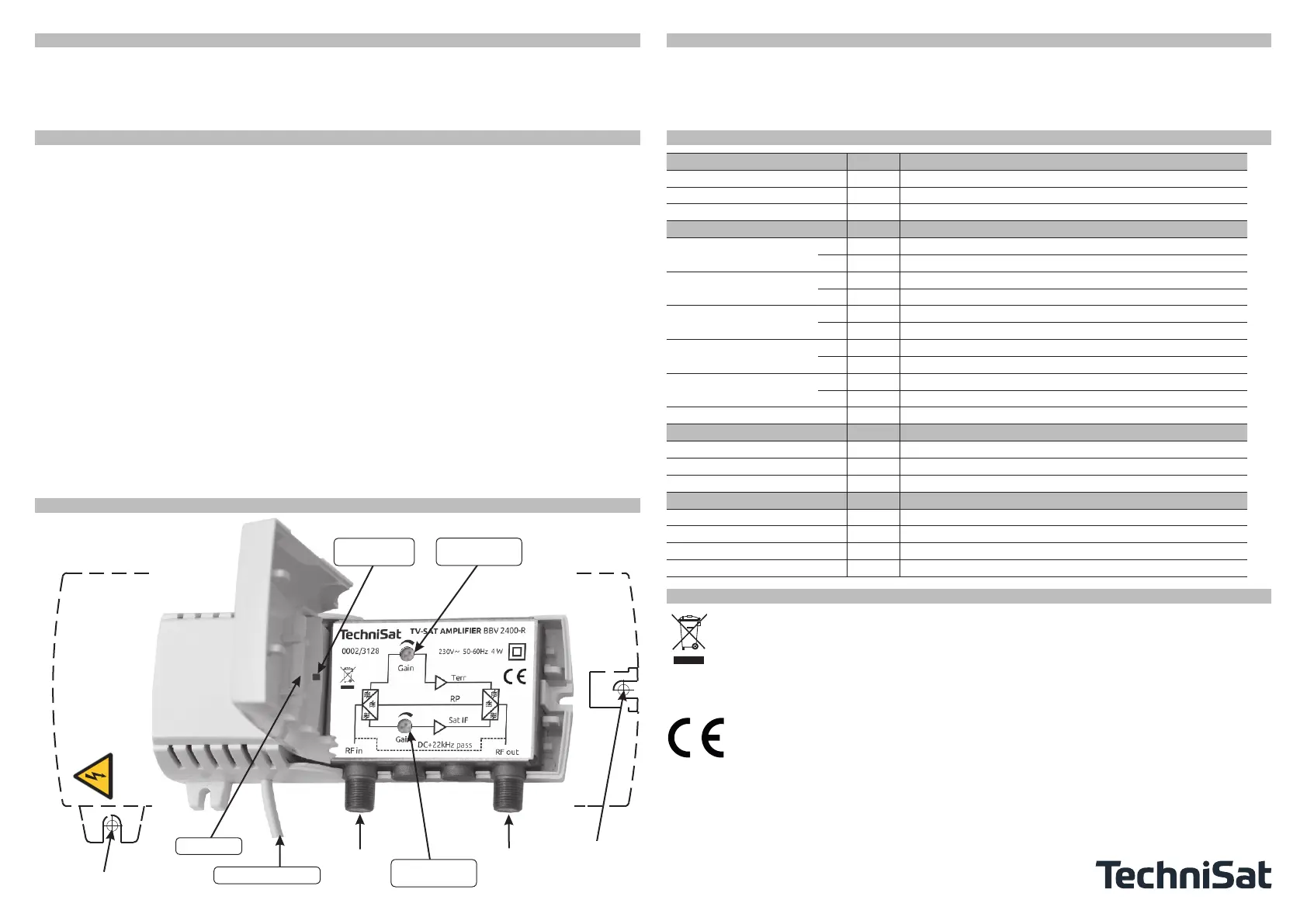

3 External view and operating controls
Supply voltage
indicator
Level aenuator
Terr.
mounting paern
mounting hole
Screwdriver
Power supply cable
RF intput
Level aenuator
SAT IF
RF output
mounting
hole
4 Installation
The amplifier should be mounted on vertical surface with connectors underneath in order to ensure good ventilation
conditions.
The amplifier must be fixed with 2 flat-head screws Ø 3.5-4 mm and appropriate wall-plugs if necessary. The screws are
not included in a package.
Check that the supply voltage matches the particulars on the rating plate, then connect the amplifier to the power supply.
5 Technical data
Description Unit Value
Model TVSAT AMPLIFIER BBV 2400R
item no. 0002/3128
EAN 4019588231283
Forward path
Frequency range Sat MHz 950 ... 2.400
Terr. MHz 87 ... 862
Gain Sat dB 18 ... 25 (pre-correction)
Terr. dB 14 ... 18 (pre-correction)
Level aenuator Sat dB 10
Terr. dB 15
Return loss Sat dB ≥ 10 < 1750 MHz > ≤ 10
Terr dB ≥ 10
Output level Sat dBµV ≤ 115 (35 dB IMA3, EN50083-3)
Terr. dBµV ≤ 110 (60 dB IMA3, DIN45004B)
DC path mA 400
Return path
Frequency range MHz 5 ... 65
Insertion loss dB 4
Return loss dB > 14
General
Supply voltage 230V ~ / 50 ... 60Hz
Power consumption W 4
Nominal temperature range °C -20 ... 50
Dimensions (W x H x D) mm 133 x 67 x 39
6 Disposal/Recycling instructions
Electronic equipment must not be disposed of in domestic waste. According to directive 2002/96/EC OF
THE EUROPEAN PARLIAMENT AND COUNCIL of 27 January 2003 on waste electrical and electronic equip-
ment, it must be disposed of professionally. At the end of its service life, take this device for disposal at a
designated public collection point.
Your device is CE approved and meets all necessary EU standards.
Subject to changes and printing errors. Status 11/17
Reproduction and copies are only allowed with the consent of the publisher.
TechniSat is a registered trademark of
TechniSat Digital GmbH · TechniPark · Julius-Saxler-Str. 3 · D-54550 Daun
Warning
Danger to life through electric shock!
Wall mounting: Before drilling holes,
ensure that there is no electrical
wiring in the wall.
