Connection wires Double and Single

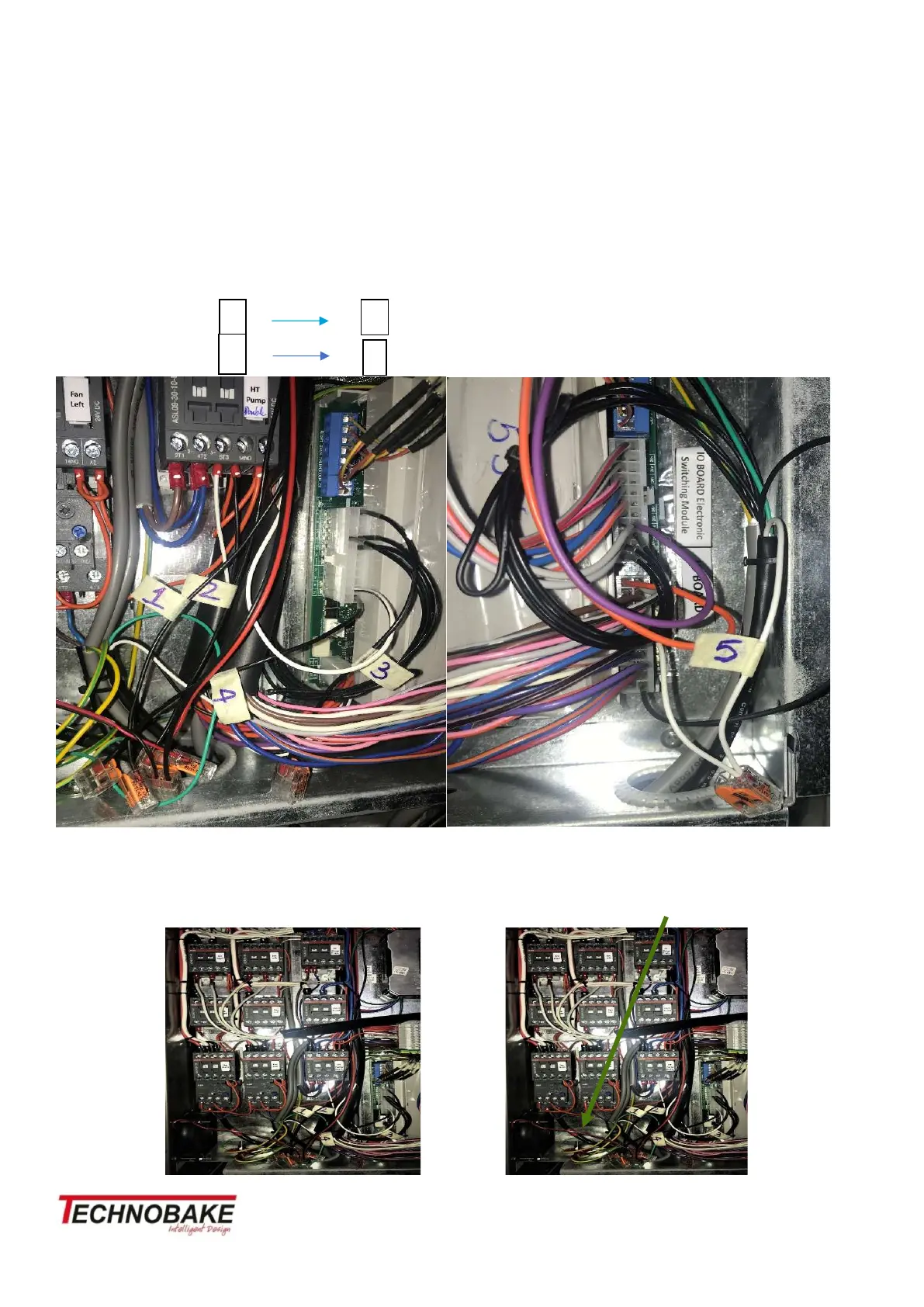

To install a combination oven, follow the below format.
Two cables -1) 8 core cable (of that only 5 cables are used)
2) Solenoid cable
One end of all the needed core cables will be pre-connected to the single oven with
labels on them
Connect the other end to the double oven following the labels on to wago clips/
terminals And so on with the 5 cables
Connect the black and white wires of the Solenoid cable to the 6T3 and 14NO termi-
nals on the ‘HT pump Single’ Contactor.
Connect the green wire of the Solenoid cable to the earth terminal.
1
1
2
2
To Next Page
