Vertical Traction
Contents
Lifting and handling the equipment
To facilitate passage through narrow doorways, transport and handling, it is possible
to disassemble the seat and the easy start device:
cont.

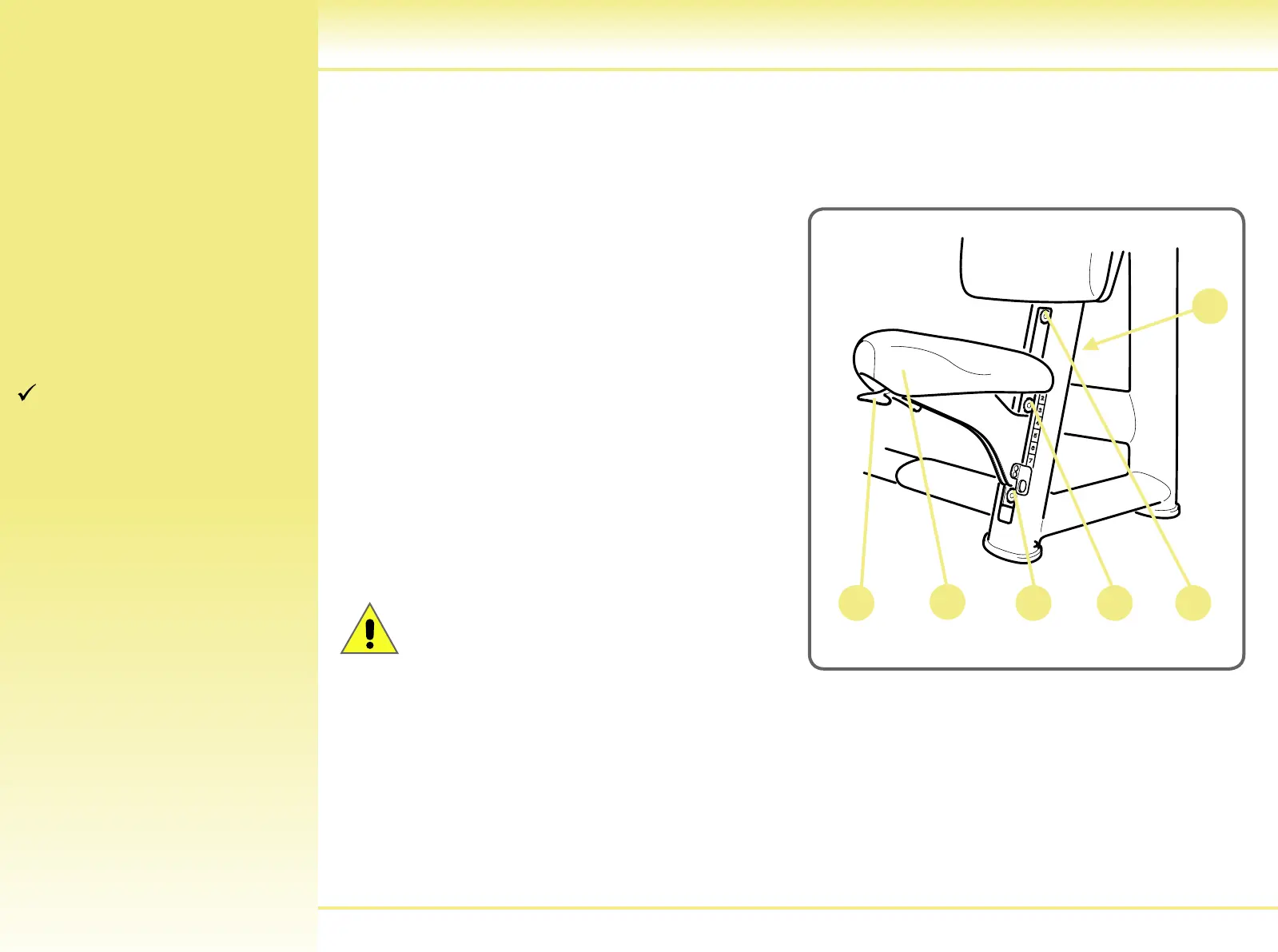

To disassemble the seat, proceed as
follows:
- operate lever (
B) and completely lower the
seat (C);
- back off one of the three screws (
D) and screw
it into the hole behind the tube (E) of the seat;
- back off the other screws (D) and remove the
seat (C).
To reassemble the seat, carry out the above
steps in reverse order. Keep the seat (C)
pressed downward while backing off the
screw (D) from behind tube.
Danger
During this operation do NOT operate
lever (B).
