DIY Synth - Manual
14 Step 6

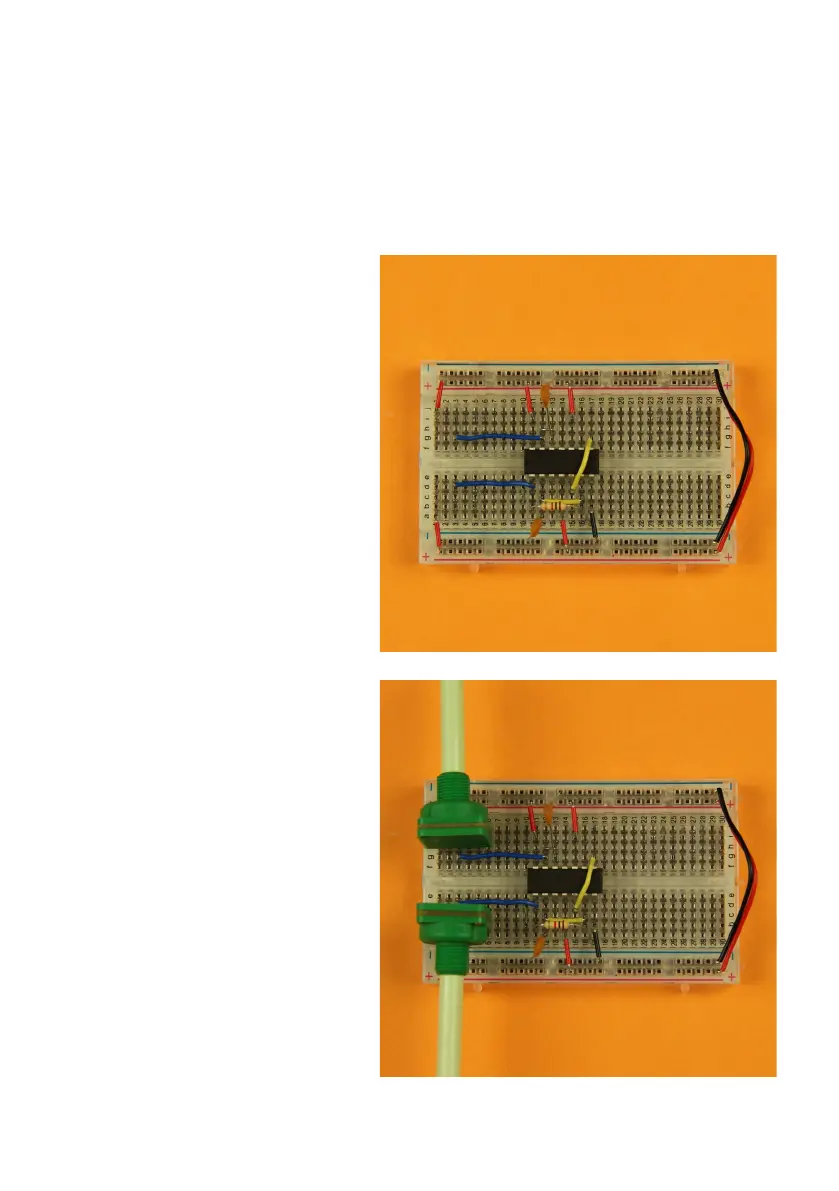

Add your two blue wires,
these will be used to
connect the middle ‘wiper’
pins of the potentiometer to
the chip.
Connect the first blue wire
from row 3 of the breadboard
to pin 13 of the chip.
Connect the second blue
wire from row 3 of the
breadboard to pin 1 of the
chip.
Add the two 470K
potentiometers. (Their
resistance is marked on the
back of the casing) Make
sure that the red wires from
the previous step connect
to their left pin and the blue
wires to their middle ‘wiper’
pins.
