15DIY Synth - Manual
Electrolytic Capacitor

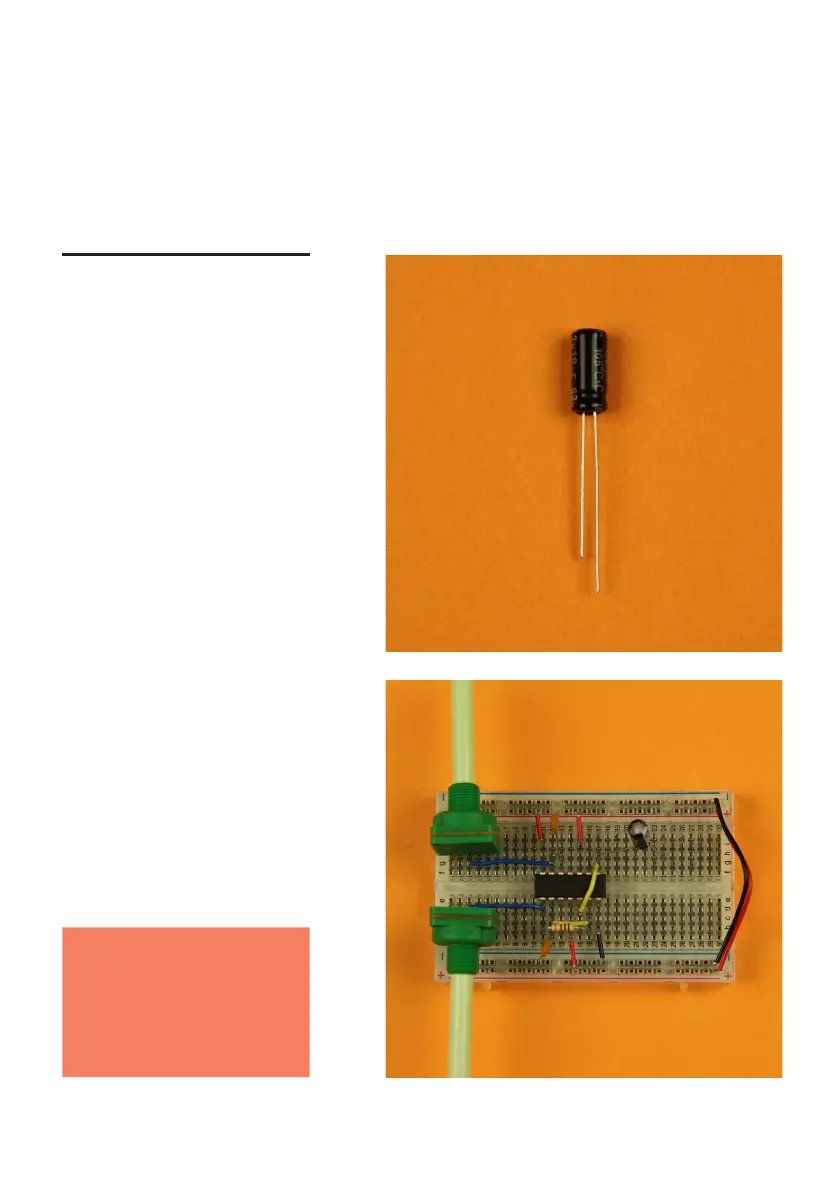

Take your Electrolytic
Capacitor shown in the
image to the right.
Connect the long leg (the
one that wants voltage) to
pin 9 on the chip.
The shorter leg should be
placed a few holes along
from the right hand side of
the chip. In order to give
space for the final
potentiometer to be attached.
7
Step 7
Top Tip
This capacitor has two
different length legs. That
means its polarized, and has
to be connected in a specific
way!
