DIY Synth - Manual
16 Step 8

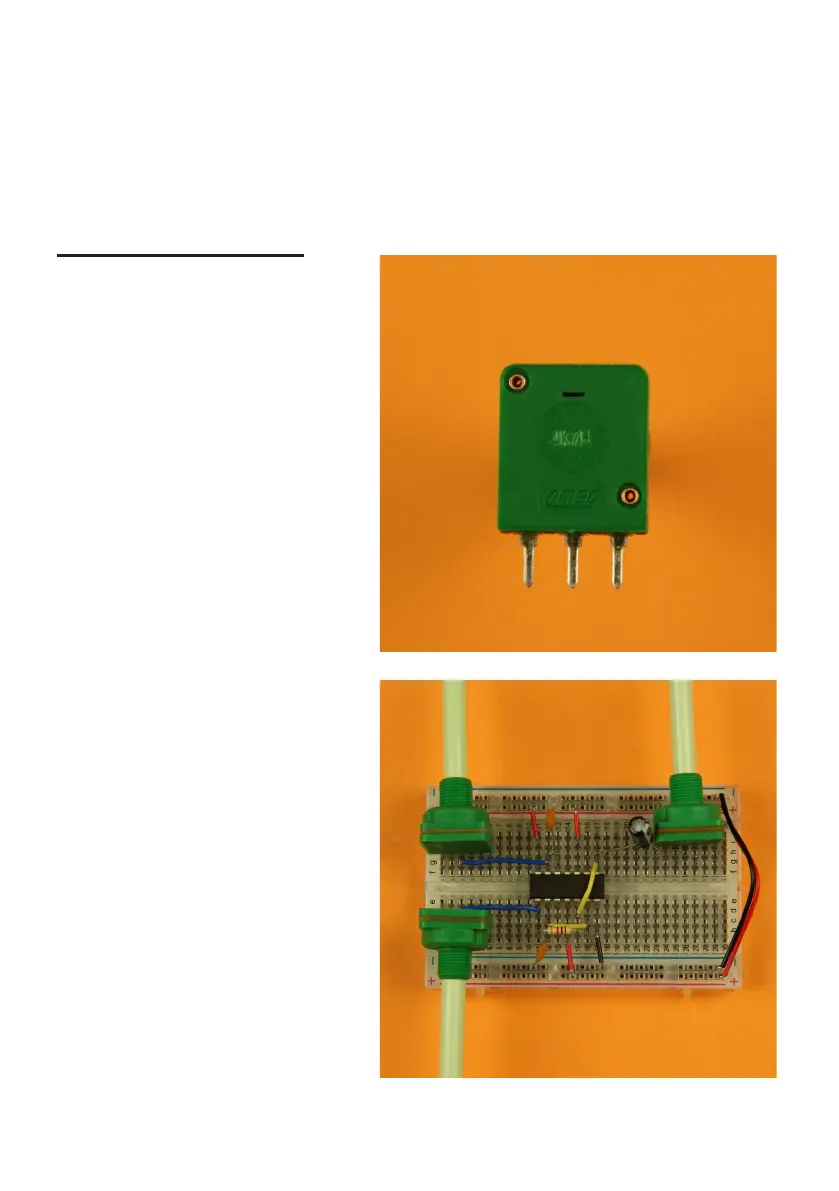

4.7K Potentiometer
(Volume Control)
Connect the final
potentiometer (4.7K). This
will be the volume control!
Align it with the shaft
pointing away from the
chip. The left leg should be
in line (vertically) with the
short leg of the capacitor
from the previous step.
Take your Transistor 4.7K
Potentiometer. You can
tell it is the correct one of
the three by the resistance
which is marked on the back
of its casing.
8
