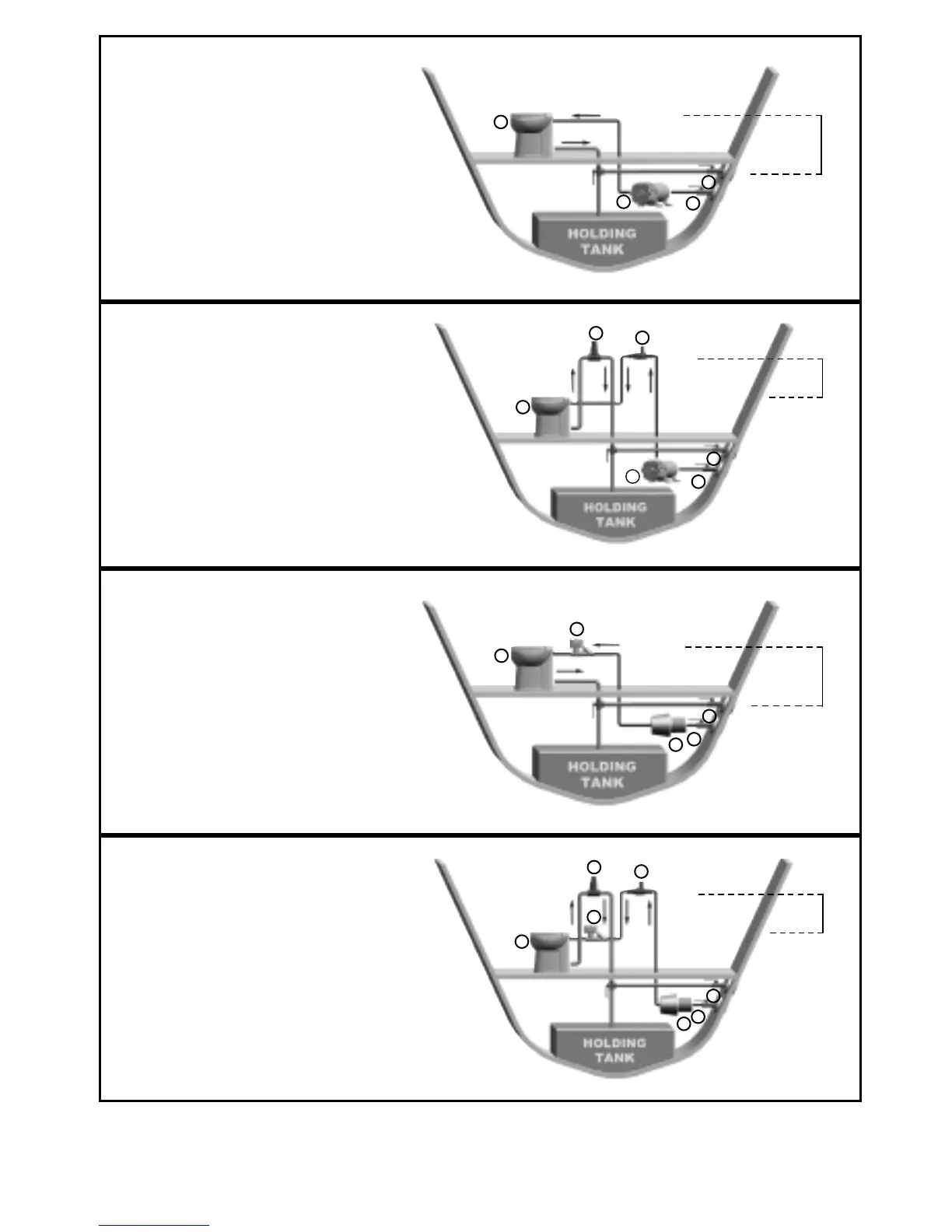

Tecma Silence - Installation System Diagrams; Single System Installation; Centralized System Installation

1 - BOWL
2 - SINGLE SYSTEM - MARINE WATER PUMP
3 - INLET ELECTROVALVE WITH FILTER
4 - CENTRALIZED SYSTEM - MARINE WATER PUMP
5 - OUTLET VENTILATION VALVE
6 - INLET VENTILATION VALVE
7 - SAFETY HAND VALVE
1
2
7
7
WATER LEVEL
MIN 60 CM (24’)
1
2
5
6
7
7
MIN 60 CM (24’)
WATER LEVEL
1
1
4
4
5
6
3
3
7
7
7
7
WATER LEVEL
MIN 60 CM (24’)
MIN 60 CM (24’)
WATER LEVEL
SINGLE SYSTEM
INSTALLATION ABOVE SEA LEVEL
SINGLE SYSTEM
INSTALLATION UNDER SEA LEVEL
CENTRALIZED SYSTEM
INSTALLATION ABOVE SEA LEVEL
CENTRALIZED SYSTEM
INSTALLATION UNDER SEA LEVEL
