Page 1 - 4
Section 1 – General
THREE-VIEW AND DIMENSIONS
4
th
Edition, Rev 0
2. THREE-VIEW AND DIMENSIONS
P2006 T
GENERAL VIEW

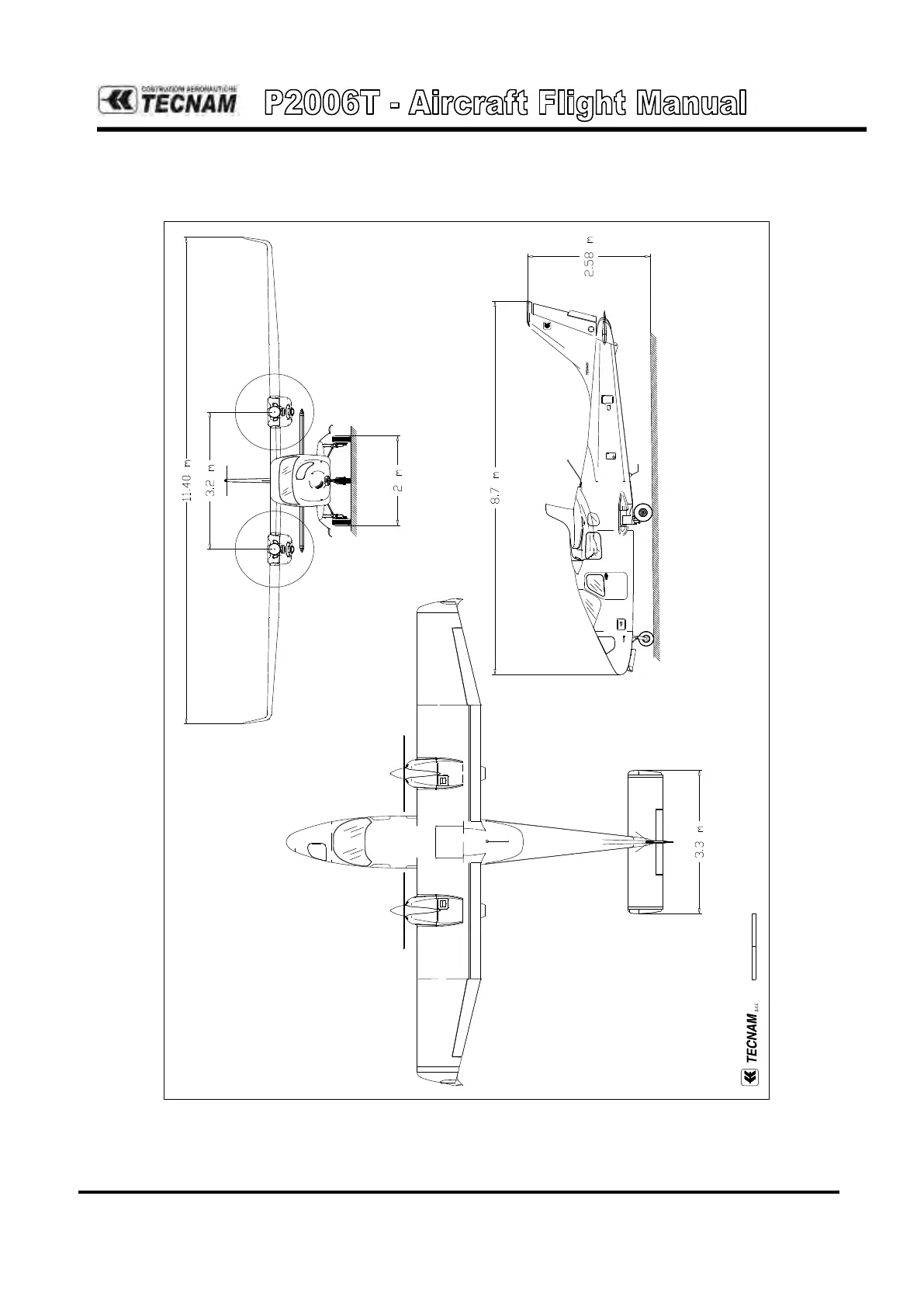

Figure 1 – General views
