Section 2 – Limitations
LIMITATIONS PLACARDS

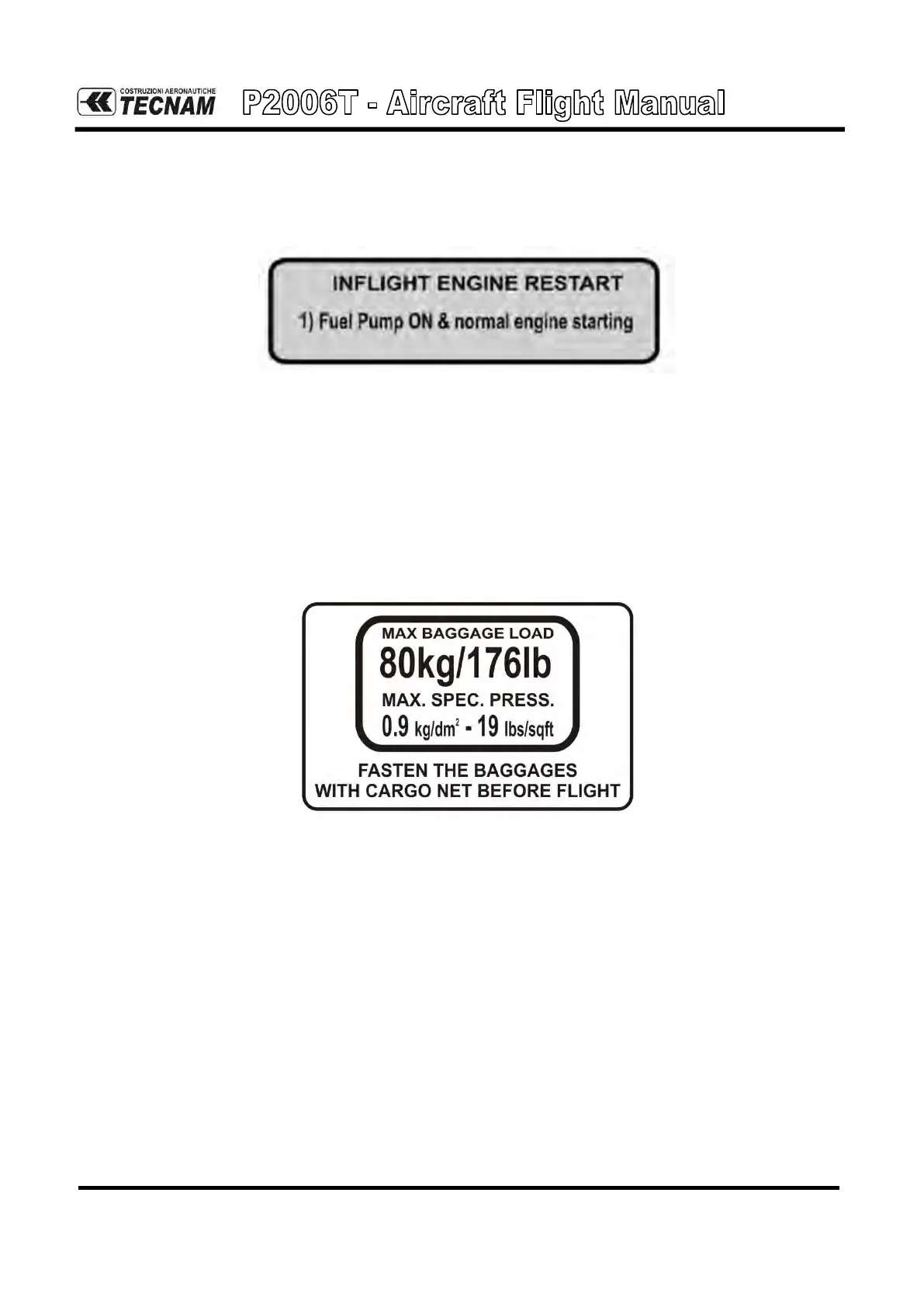

21.3. INFLIGHT ENGINE RESTART
The inflight engine restart procedure is reported on a placard (shown below) in-
stalled on the central console.
21.4. BAGGAGE COMPARTMENT CAPACITY
The placard shown below, and installed on the baggage compartment (vertical pan-
el), concerns the baggage compartment load limitations herein reported:
Maximum allowable load: 80kg/176lb
Maximum intensity of loading: 0.9 kg/dm
2
– 19 lbs/sqft
