Tecnam P92 Echo MKII - Page 11

Page 3 - 1
Section 1 - General
THREE VIEW AND DIMENSIONS
1
st
Edition - Rev. 0
2 THREE VIEW AND DIMENSIONS
THREE VIEW

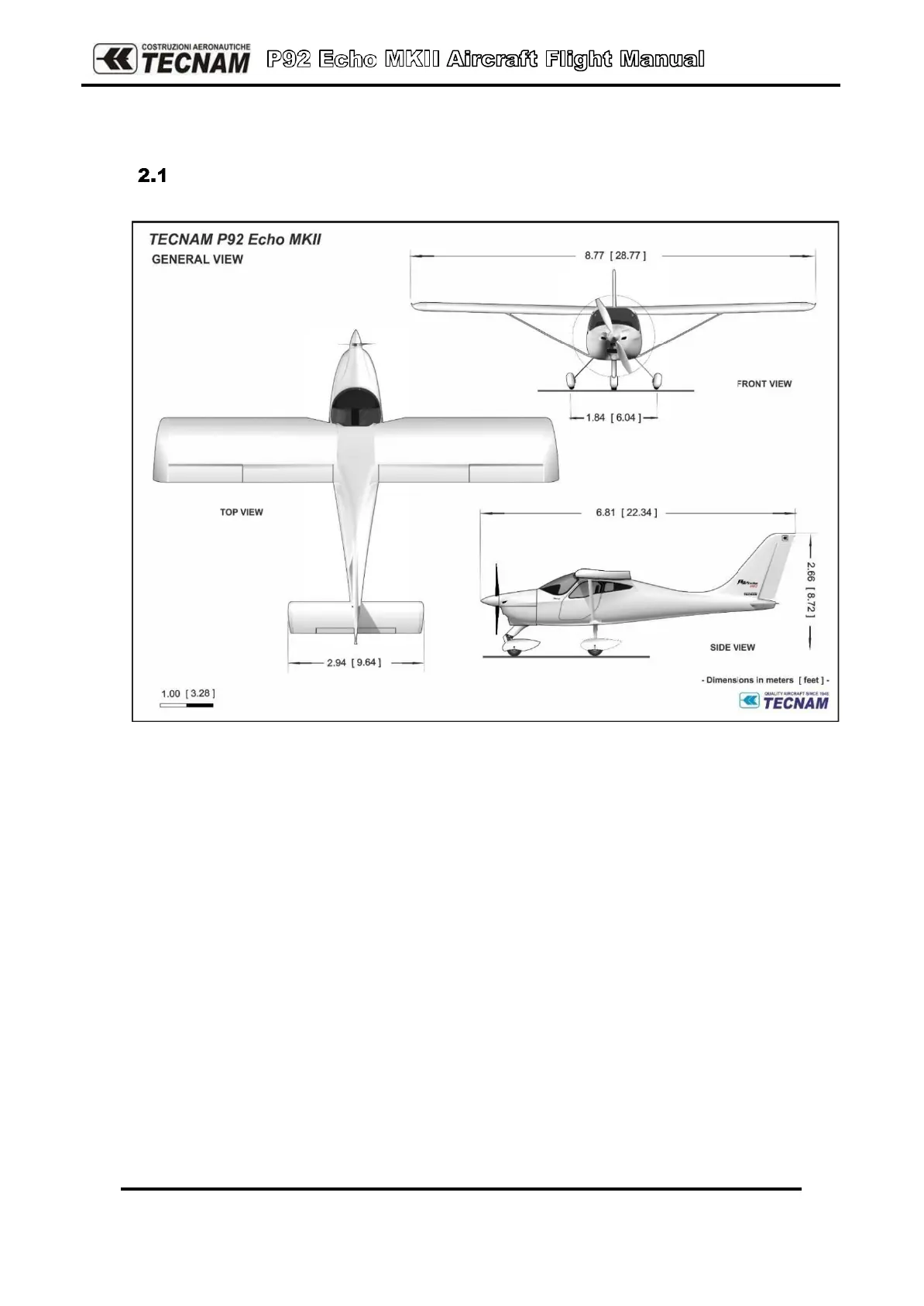

Fig. 1.1 – General views
 Dimensions shown refer to normal operating tire pressure.
 Propeller ground clearance 336 mm
 Propeller ground clearance with deflated front tire and nose wheel shock ab-
sorber compressed 84mm
