1. MULTIDECK DISPLAY POSITIONING
Before to unload/download and positioning the Multideck Display inside the shop/kitchen, we
invite you to read carefully this instruction manual and the paragraphs regarding: unloading/loading,
dimensions, weight, evaporating water basin, adjustable feet, electric connections and maintenance.
1.1 TRANSPORT
Kg
Kg
NO SI
Do not superimpose Multideck Display packing (allowed only if there is
wooden crate packing option).

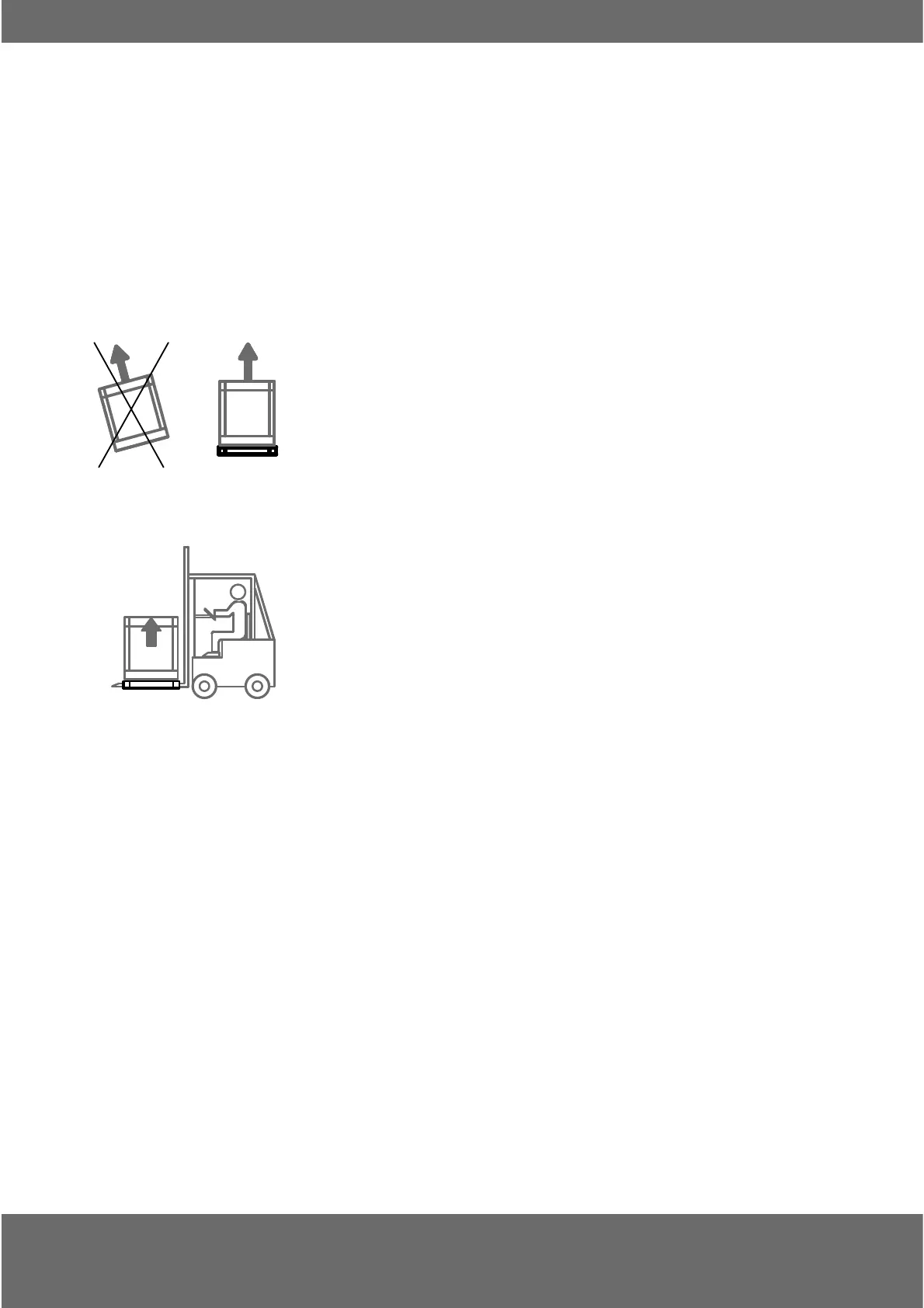

We recommend you to transport the Multideck Display always in the upright posi-
tion (as mention on the packing). If the Multideck Display with built in condensing
unit was inclined during transport we suggest you to keep the product in the sug-
gested upright position for at least 8 hours, before switching it on. In this way, you
will allow the oil to fl ow in all the components, lubricating them again. Afterwards
you can proceed with the start.
1.2 UNLOADING / DIMENSIONS / WEIGHTS
Kg
The unloading/loading procedures should be executed by pallet-jack or by forklift
driven by skilled and authorized staff. We decline any liability for failing to comply
with safety rules currently in force.
Before starting the unloading, positioning and installation procedures of the
Mul-
tideck Display
inside the shop/kitchen according to the model of the Multideck
Display, please read carefully the information in the technical data Appendix.
The manufacturer declines any responsibilities due to operations performed without adopting the abo-
ve safety precautions.
1.3 PACKING
At the delivery please check that the packing is intact and that during transport no damage was
occurred. Remove the external carton-box; remove the fastener that keeps still the Multideck Display to its
pallet, put it in the correct position and then remove the adhesive white protection of the stainless steel.
The recovery and the recycling of the packing materials such us, plastic, iron, carton box, wood help the saving
of row material and reduce the waste. Please consult your area address book for disposal of materials and
authorized garbage dump.
1.4 WATER CONDENSATION DRAIN
GAS REFRIGERATING CONNECTION PIPES
For water drain, see the section “WATER CONDENSATION DRAIN / WATER DRAIN CON-
NECTION”, with Multideck Display with built-in unit (the water condensation drain tanks is not
removable). The Multideck Display with remote unit version is fi tted with water drain siphon only
and without water drain tank.
