Tecnodom EVO SELF - Page 41

EVO
SELF
| User and Maintenance Manual | EN
41

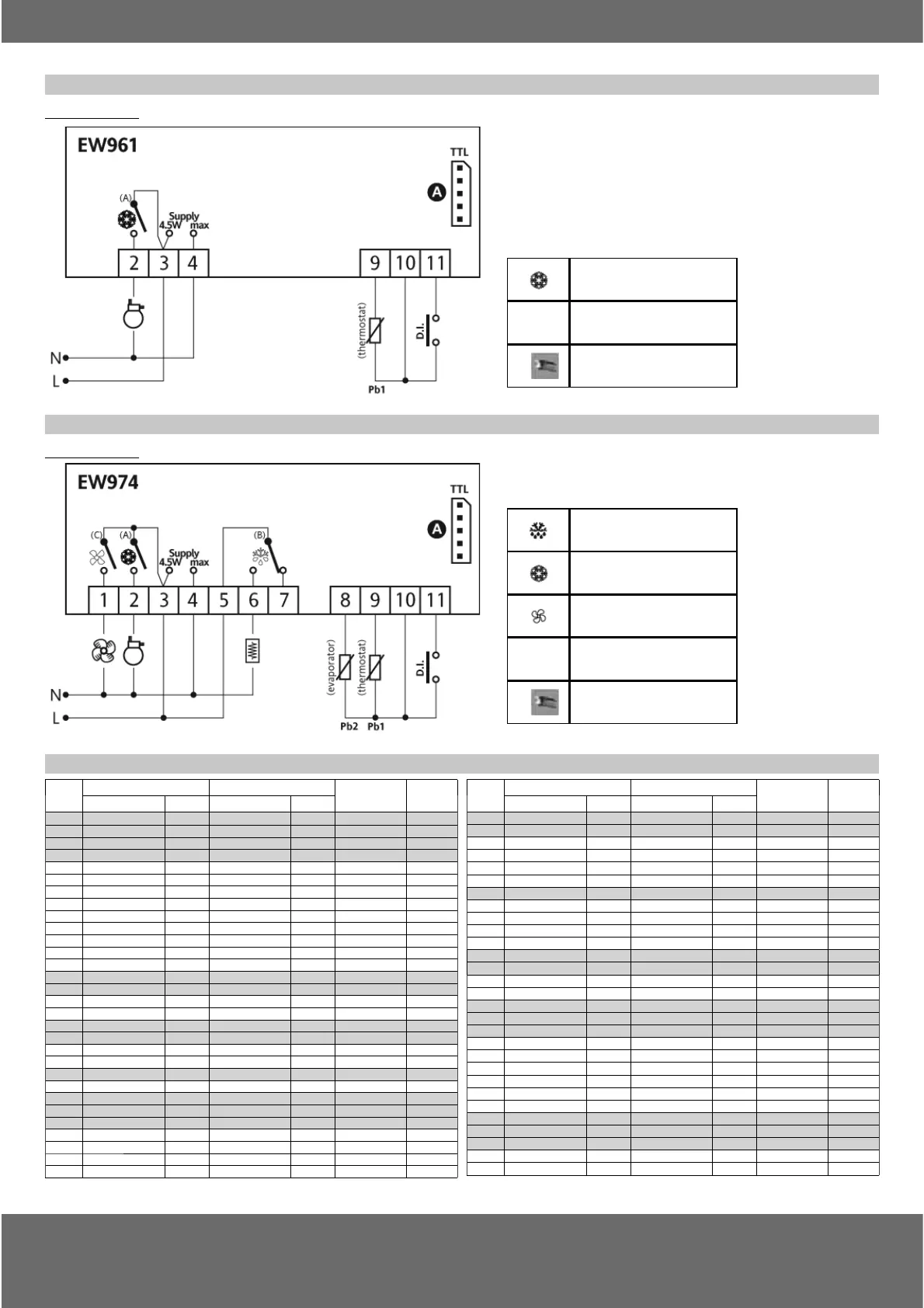

EW961: CONNECTIONS
TERMINALS
EW974: CONNECTIONS
TERMINALS
Parameters - Default setting
Compressor relay
N-L
Power Supply
A
TTL input
Defrost relay
Compressor relay
Relè ventole
N-L
Power Supply
A
TTL input
PAR
EW961 EW974
U.M. Level
RANGE DEFAULT RANGE DEFAULT
SEt
-50,0 ... 99,0 0,0 -50,0 ... 99,0 0,0 °C/°F
diF
+0,1 ... +30,0 2,0 +0,1 ... +30,0 2,0 °C/°F 1&2
HSE
LSE ... +230 99,0 LSE ... +230 99,0 °C/°F 1&2
LSE
-55,0 ... HSE -50,0 -55,0 ... HSE -50,0 °C/°F 1&2
OSP
-30,0 ... +30,0 3,0 -30,0 ... +30,0 3,0 °C/°F 2
dOd
n/y n n/y n flag 2
dAd
0 ... 255 0 0 ... 255 0 min 2
Ont
0 ... 250 0 0 ... 250 0 min 2
OFt
0 ... 250 1 0 ... 250 1 min 2
dOn
0 ... 250 0 0 ... 250 0 secs 2
dOF
0 ... 250 0 0 ... 250 0 min 2
dbi
0 ... 250 0 0 ... 250 0 min 2
OdO
0 ... 250 0 0 ... 250 0 min 2
dty
--- --- 0/1/2 0 flag 1&2
dit
0 ... 250 6 0 ... 250 6 hours 1&2
dCt
0/1/2 1 0/1/2 1 num 2
dOH
0 ... 59 0 0 ... 59 0 min 2
dEt
1 ... 250 30 1 ... 250 30 min 1&2
dSt
--- --- -50,0 ... +150 8,0 °C/°F 1&2
dPO
n/y n n/y n flag 2
FPt
--- --- 0/1 0 flag 2
FSt
--- --- -50,0 ... +150 50,0 °C/°F 1&2
FAd
--- --- +1,0 ... +50,0 2,0 °C/°F 2
Fdt
--- --- 0 ... 250 0 min 1&2
dt
--- --- 0 ... 250 0 min 1&2
dFd
--- --- n/y y flag 1&2
FCO
--- --- n/y y flag 2
Fod
--- --- n/y n flag 2
Att
0/1 1 0/1 1 flag 2
AFd
+1,0 ... +50,0 2,0 +1,0 ... +50,0 2,0 °C/°F 2
PAR
EW961 EW974
U.M. Level
RANGE DEFAULT RANGE DEFAULT
HAL
LAL ... +150,0 +50,0 LAL ... +150,0 +50,0 °C/°F 1&2
LAL
-50,0 ... HAL -50,0 -50,0 ... HAL -50,0 °C/°F 1&2
PAO
0 ... 10 0 0 ... 10 0 hours 2
dAO
0 ... 999 0 0 ... 999 0 min 2
OAO
0 ... 10 0 0 ... 10 0 hours 2
tdO
0 ... 250 0 0 ... 250 0 min 2
tAO
0 ... 250 0 0 ... 250 0 min 1&2
dAt
--- --- n/y n fl ag 2
EAL
n/y n n/y n fl ag 2
dEA
0 ... 14 0 0 ... 14 0 num 2
FAA
0 ... 14 0 0 ... 14 0 num 2
LOC
n/y n n/y n fl ag 1&2
PS1
0 ... 250 0 0 ... 250 0 num 1&2
PS2
0 ... 250 15 0 ... 250 15 num 2
ndt
n/y y n/y y fl ag 2
CA1
-12,0 ... +12,0 0,0 -12,0 ... +12,0 0,0 °C/°F 1&2
CA2
--- --- -12,0 ... +12,0 0,0 °C/°F 1&2
ddL
0/1/2 1 0/1/2 1 num 1&2
dro
0/1 0 0/1 0 fl ag 2
ddd
0/1/2 1 0/1/2 1 num 2
H08
0/1/2 2 0/1/2 2 num 2
H11
-6 ... +6 0 -6 ... +6 0 num 2
H25
--- --- 0 ... 6 4 num 2
H32
0 ... 4 0 0 ... 4 0 num 2
H42
--- --- n/y y fl ag 1&2
rEL
/////1&2
tAb
/////1&2
UL
/////2
Fr
/////2
