1ADVICE
Transport
For information regarding the supply of these units please refer
to your terms and conditions.
Installation
- This unit and related equipment must be installed by suitably
qualified staff.
- The installation of the unit is subjected to the norms and
technical standards for refrigerating and electrical connections
in the respective country.
- TECUMSEH EUROPE S.A. cannot be held responsible if
installation and maintenance are not carried out in accordance
with these instructions.
2 TECHNICAL DATA
2.1 Label
(Refer to annexe 1, page 26)
2.2 Safety devices
All units are supplied with an adjustable HBP / LBP pressure
switch, rated at 16A.
2.3 Versions
The following versions of condensing units are available:
HBP / LBP pressure switch with manual reset - with fusible plug
- Contactor and isolator - solenoid valve - suction accumulator -
evaporator fan contractor.
2.4 Refrigeration diagrams
(Refer to annexe 2, page 27)
2.5 Circuit diagrams
(Refer to annexe 7, pages 34 to 39)
3 INSTALLATION
3.1 Unpacking
Make sure that the unit is in good condition and has not been
damaged externally.
3.2 Handling
The packaging allows the use of a forklift truck or a pallet loader.
It is recommended that the packaging be retained until the unit
arrives at its location of installation.
3.3 Location
(Refer to annexe 3, pages 28 to 30)
The unit should not block or obstruct thoroughfares, doors,
shutters or personnel.
The surface supporting the unit must be capable of bearing its
weight - Refer to Table 2.1.1.
Keep sufficient distance between the units and any objects in its
surroundings to ensure good air circulation.
Silensys
®
must be installed in a well-ventilated location.
The unit must be level.
3.4 Sound
Silensys
®
has been designed for particularly silent operation.
When installing the unit,care must be taken to avoid interference
or vibration.
- The unit must be securely installed on a stable and rigid
support. It is recommended to separate the unit from its
support by blocks or anti vibration pads.
- The piping must be flexible enough to avoid the transmission of
vibration (Noise level, see annexe 1 page 26).

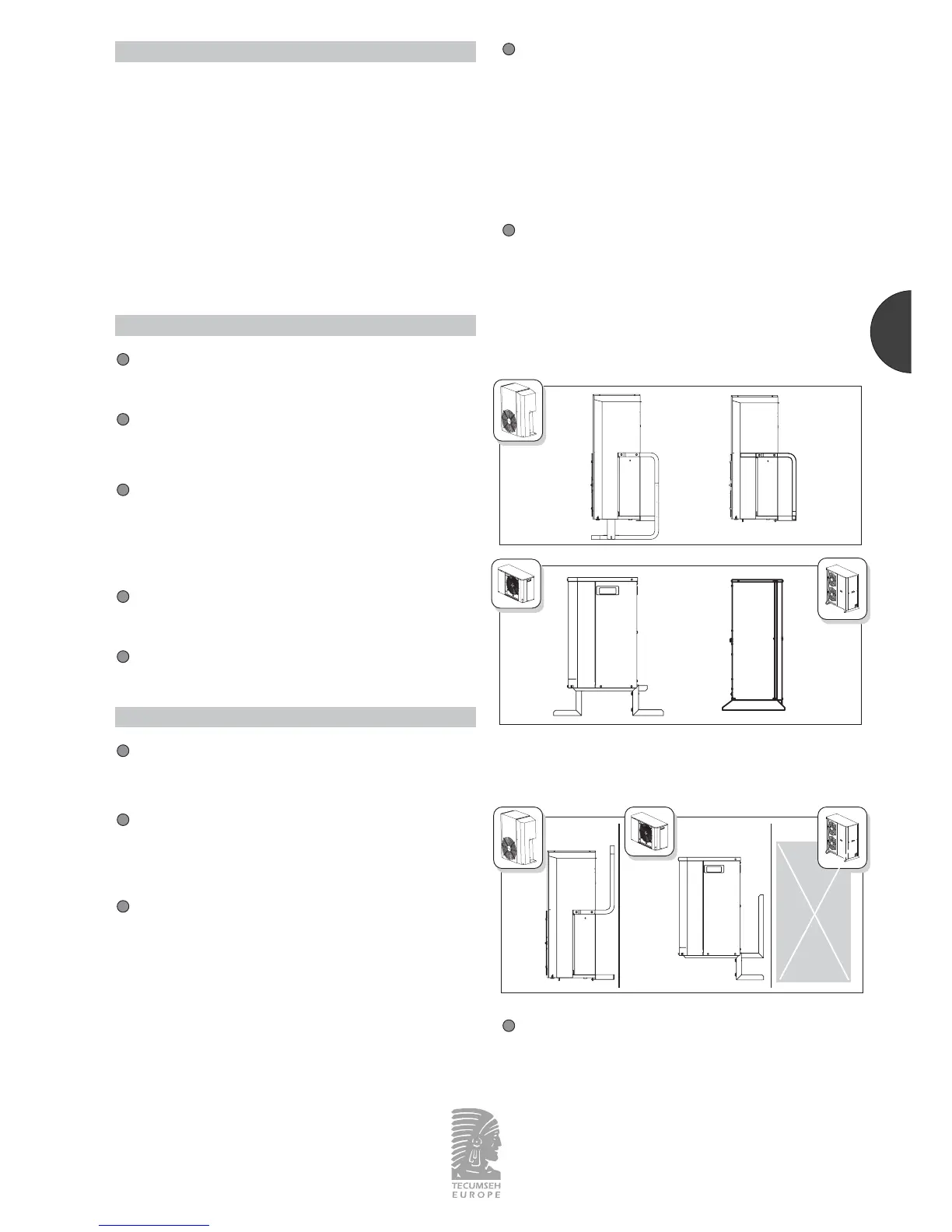

3.5 Mounting (2 or 3 option depending upon model)
The mounting of the supports must be adapted to the surface
quality and carried out according to recognised good working
practices.
The mounting kit must only be used with the condensing unit
supplied.
• Floor mounting only (see annexe 3 pages 28 to 30):
only use the mounting kit supplied with the condensing unit
(see annexe 4 page 31, to remove the Silensys
®
access panel)
• Wall mounting (see annexe 4, page 31):
only use the mounting kit supplied with the condensing unit
3.6 Accessibility of the connection points
(see annexe 5, page 32)
Wall
mounting
kit not
supplied
