SECTION 2
OPERATION
2.1 CONTROLS AND CONNECTORS
2.1.1 Front Panel

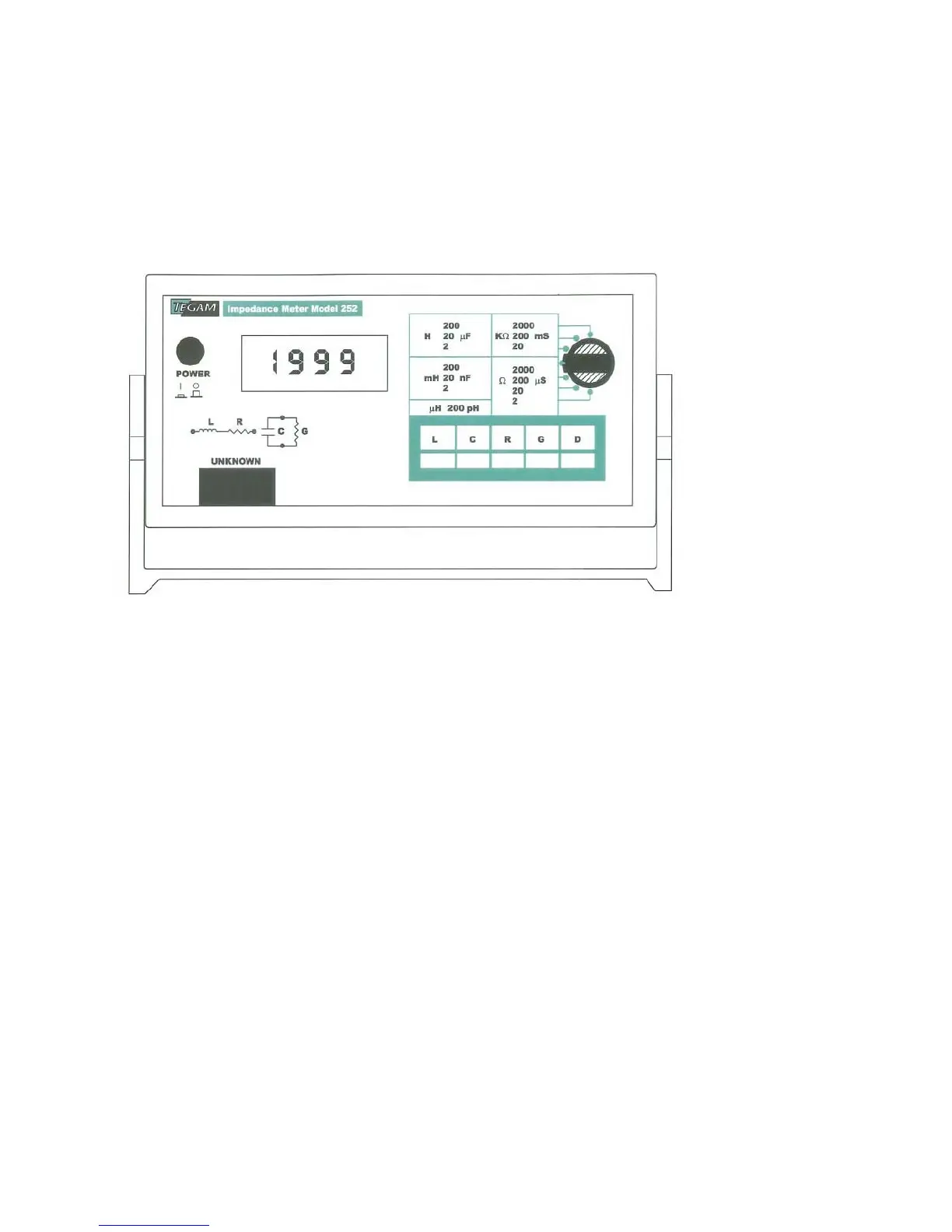

Figure 2-1. Model 252 Front Panel
1. ON/OFF Switch – A push-on, push-off switch for applying and
removing power from the instrument.
2. UNKNOWN Connector – Terminals designed to be used with KELVIN
KLIPS® test leads (Tegam Part No. 43072),
Provided with Model 252, to provide a true
Four-terminal connection to the unknown or
Test fixture.
3. L, R, C, and G Pushbuttons – Function pushbuttons select the type
of meter circuit that will measure
series inductance (L) and resistance
(R) or parallel capacitance (C) and
conductance (G).
2-1
