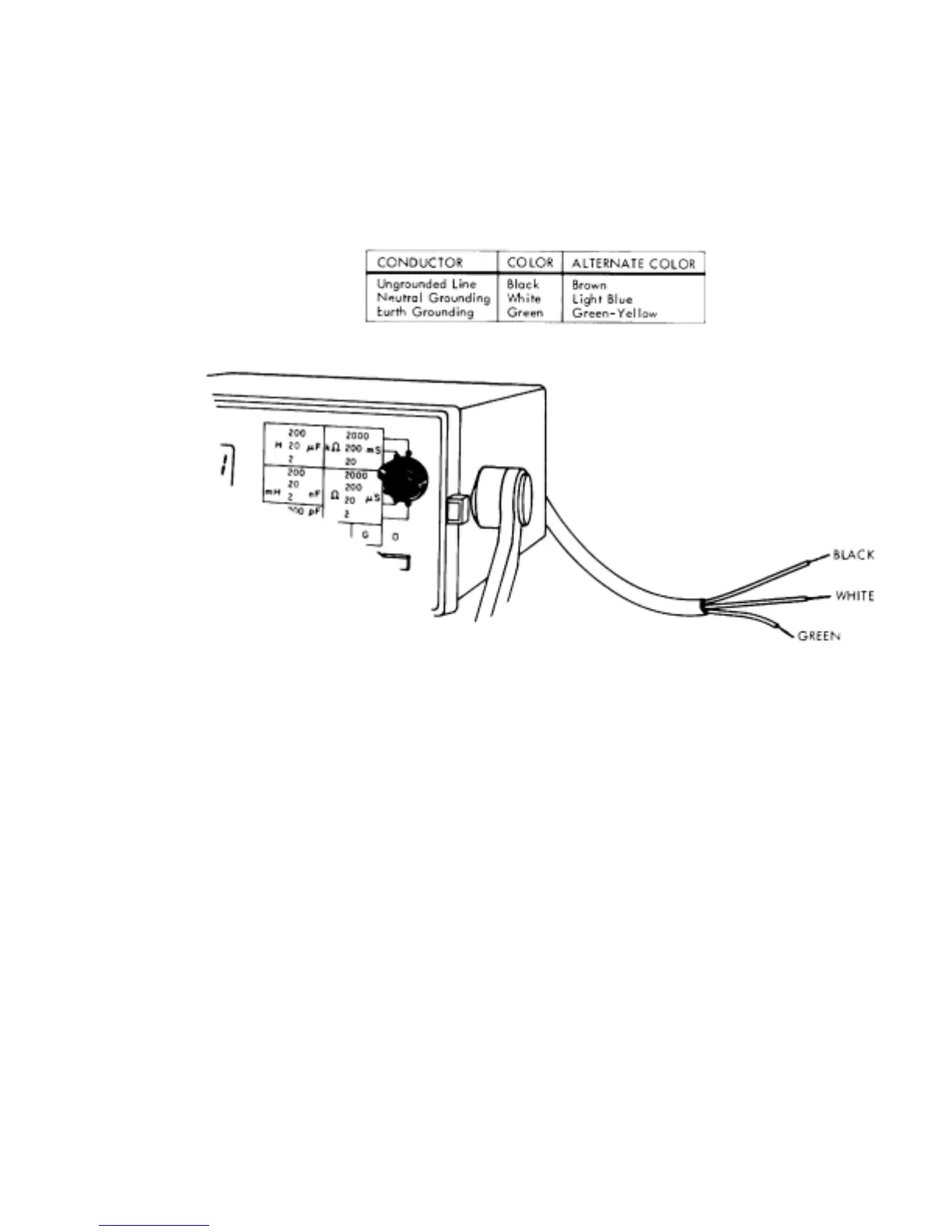

Because of differing power requirements, all instruments shipped outside the United States are without a
power cord connector. When placing a connector on the power cord, care must be taken to assure
the wires are connected properly. The green or green with yellow stripe wire is always connected to
earth ground. The white or light blue wire is connected to the neutral side of the power line. And,
the black or brown wire is connected to the high side of the power line.
2.2.2 Applying Power
The push-on, push-off, ON/OFF button in its depressed position applies power to the measurement
circuitry. When power is applied, the LED display lights and reads zero when in C and G modes or the
display is blank with the decimal point lit in the L and R modes.
