2.2.4 Function Selection
Model 252 is designed to measure series inductance (L), parallel capacitance (C), series resistance (R),
parallel conductance (G), and dissipation factor (D) of inductance and capacitance. One of these
measurement modes is selected by depressing the proper front panel button. (If all buttons are in their
out position, the instrument reverts to the inductance measurement mode.)

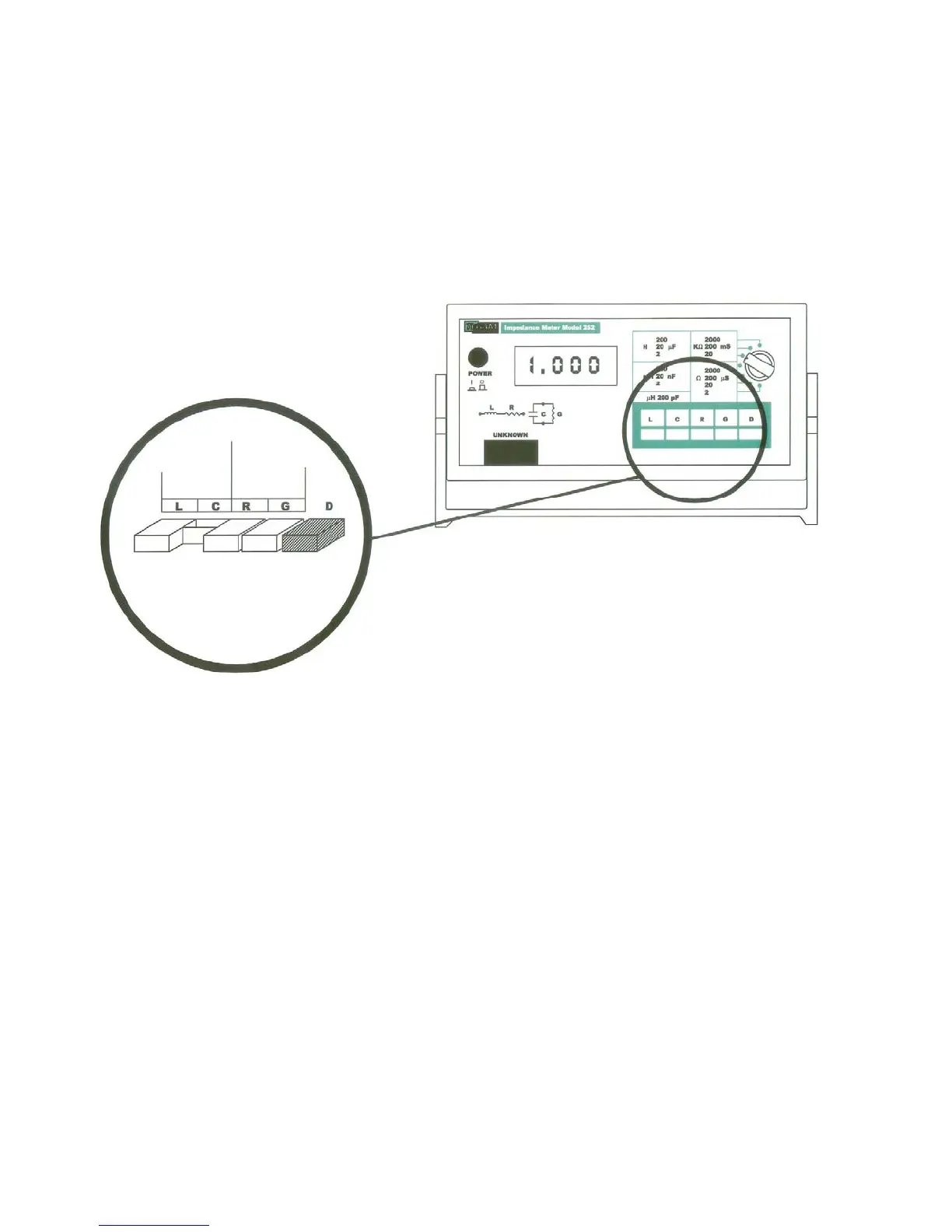

Example: Select the capacitance measurement function. (Depress the C pushbutton.)
2-9
