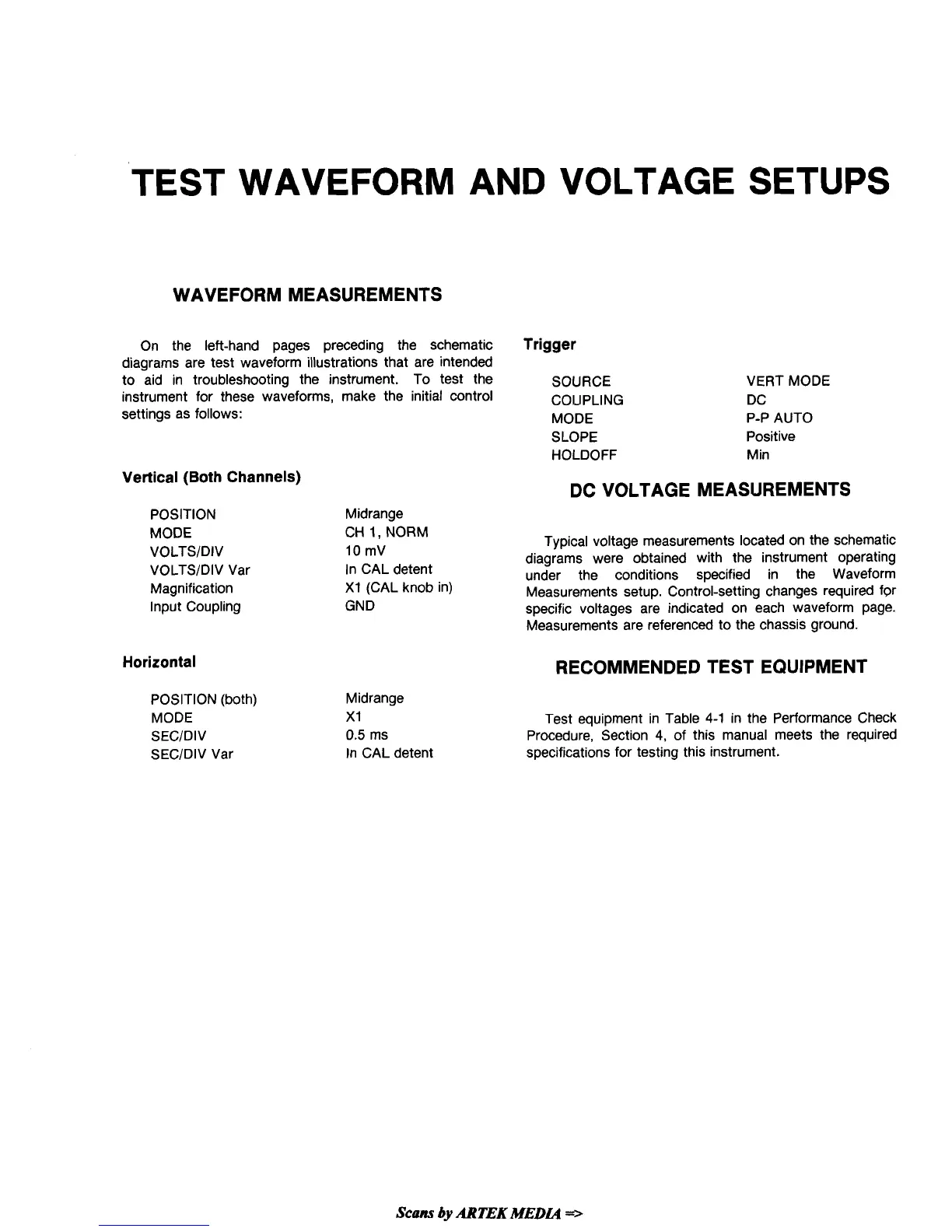

TEST WAVEFORM AND VOLTAGE SETUPS
WAVEFORM MEASUREMENTS
On the left-hand pages preceding the schematic
Trigger
diagrams are test waveform illustrations that are intended
to aid in troubleshooting the instrument. To test the SOURCE
instrument for these waveforms, make the initial control
COLlPLlNG
settings as follows: MODE
SLOPE
HOLDOFF
Vertical (Both Channels)
POSITION
MODE
VOLTSIDIV
VOLTSIDIV Var
Magnification
Input Coupling
Horizontal
POSITION (both)
MODE
SECIDIV
SECIDIV Var
Midrange
CH
1,
NORM
10
mV
In CAL detent
XI
(CAL knob in)
GND
Midrange
X
1
0.5
ms
In CAL detent
VERT MODE
DC
P-P AUTO
Positive
Min
DC VOLTAGE MEASUREMENTS
Typical voltage measurements located on the schematic
diagrams were obtained with the instrument operating
under the conditions specified in the Waveform
Measurements setup. Control-setting changes required
f9r
specific voltages are indicated on each waveform page.
Measurements are referenced to the chassis ground.
RECOMMENDED TEST EQUIPMENT
Test equipment in Table
4-1
in the Performance Check
Procedure, Section
4,
of this manual meets the required
specifications for testing this instrument.
